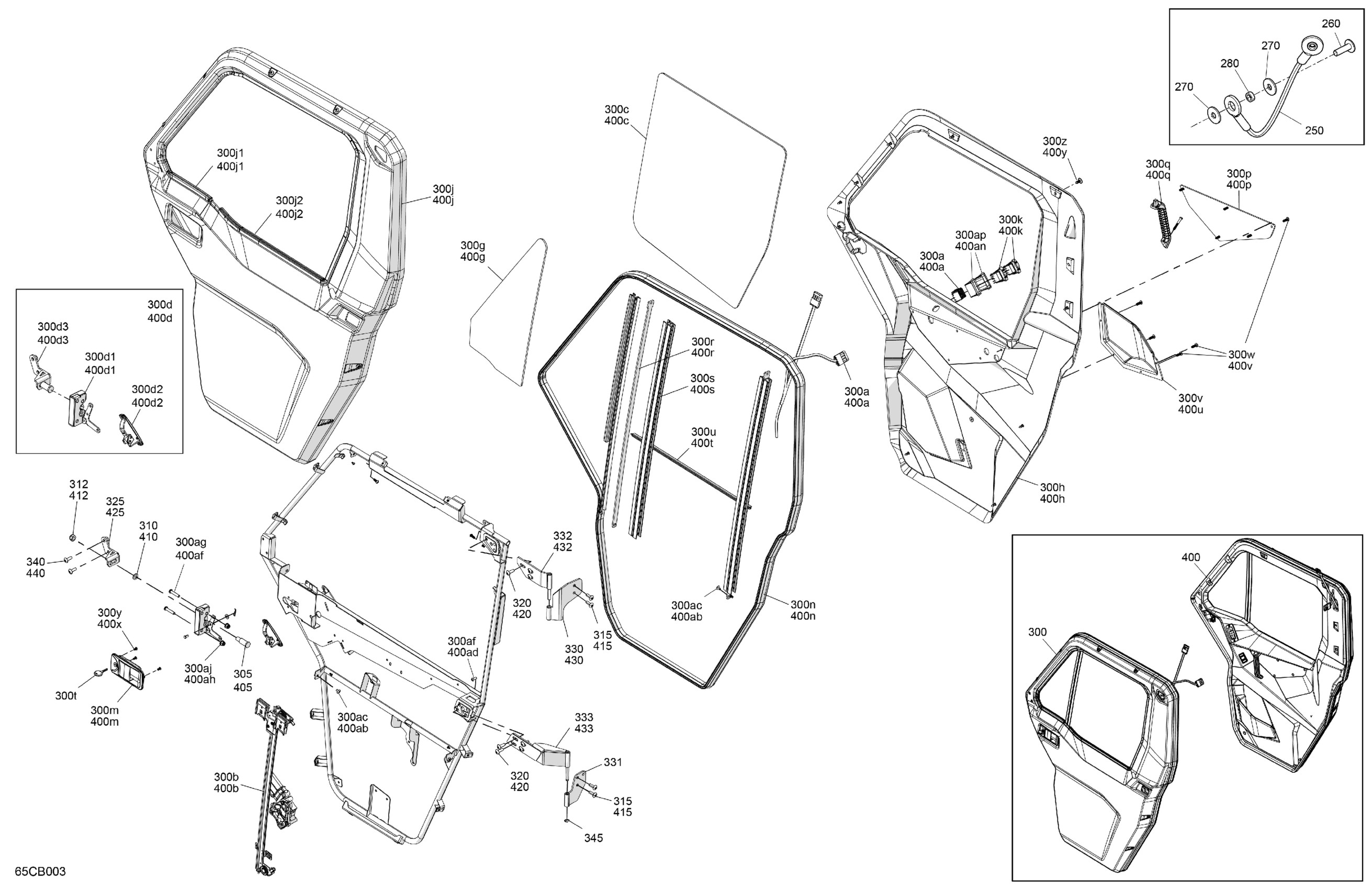

Can-Am Defender PRO HD10 - LTD CAB (9HNA-B-C-D) - 2022 Enclosure Cab - Doors Diagram

#

Description
Price

250

Door Limit Device Kit | 2nd version, 2 Holes

703500982

$20.74

260

Torx Screw M6 X 20

250000722

$1.34

270

Stainless Steel Flat Washer

234062670

$1.74

280

Bushing

708300737

$4.62

300

LH Front Rigid Door Ass'y | Includes 300 to 300a10

705800659

Unavailable

300a

Driver Door Harness

705800047

$226.12

300b

LH Window Regulator Ass'y

705800594

$636.89

300c

LH Roll-Down Glass

705800016

$569.99

300d

LH Interior Latch Kit

703500915

$198.43

300d1

Not Available As Spare Parts

XXX

Unavailable

300d2

Not Available As Spare Parts

XXX

Unavailable

300d3

Not Available As Spare Parts

XXX

Unavailable

300g

LH A-Pillar Glass

705800608

$327.66

300h

LH Routed Inner Door | For Plastic Handle

705800322

$1,249.99

300j

LH Ext Door Panel

705800665

$1,213.82

300j1

Seal

715900703

$96.89

300j2

Seal

715900703

$96.89

300k

Window Switch

710004979

$38.56

300m

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$253.82

300n

Seal 705800290 - 5000 MM

705800289

$216.89

300p

LH Door Panel Kit

715006687

$209.97

300q

LH Interior Handle

705800324

$110.74

300r

Window Guide Bracket

705800595

$166.12

300s

Window Guide Extrusion

705800590

$166.12

300t

Key Set

705800184

$23.82

300u

Folcked Beltline Trim 705800294 600mm

705800591

$50.74

300v

LH Door Pocket

705800604

$175.35

300w

Plastic Dart

705009405

$1.83

300x

Torx Truss M8 X 25

250000874

$1.74

300y

Socket Head Screw M5 X 10

205951046

$2.38

300z

Black, Dart

293730011

$0.79

300aa

Socket Screw M6 X 8

205460860

$0.47

300ab

Stainless Steel Flat Washer

234062670

$1.74

300ac

Torx-truss M/s M6 X 10

250000995

$3.61

300ad

Torx Truss M6X14

250000789

$4.41

300af

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

300ag

Socket Head Screw M8 X 40

205484060

$3.38

300ah

Hex. Flange Elastic Nut M6

233261494

$1.26

300aj

Elastic Flange Nut M8

233281466

$0.83

300ak

Hex. Flange Screw M6 X 20

207662044

$1.66

300am

LH Latch Cable 2.4''

715900493

$57.86

300an

Interior Latch Cable 28''

715900504

$92.28

300ap

LH Power Window Switch Housing

715900526

$13.52

305

Striker Bolt

705800038

$23.05

310

Conical Spring Washer M12

250200005

$2.65

312

Elastic Stop Nut M12

232521416

$1.40

315

Torx Truss M8 X 25

250000874

$1.74

320

Torx Truss M8 X 25

250000874

$1.74

325

LH Front Striker Support

705801086

$41.51

330

LH Upper Female Door Hinge

705800342

$101.51

331

Lower Female Door Hinge

705800482

$41.51

332

LH Upper Male Door Hinge

705800340

$101.51

333

NEEDS DESCRIPTION

705801202

$115.35

340

Torx Truss M8 X 25

250000874

$1.74

345

Retaining Ring

293370125

$2.31

400

DOOR_RIGID FR ASSY - Call your local BRP dealership | Includes 300 to 300a10

705800660

Unavailable

400a

Passenger Door Harness

705800050

$239.97

400b

RH Window Regulator Ass'y

705800593

$636.89

400c

RH Roll-Down Glass

705800025

$569.99

400d

RH Interior Latch Kit

703500916

$198.43

400d1

Not Available As Spare Parts

XXX

Unavailable

400d2

Not Available As Spare Parts

XXX

Unavailable

400d3

Not Available As Spare Parts

XXX

Unavailable

400g

RH A-Pillar Glass

705800609

$327.66

400h

RH Routed Inner Door | For Plastic Handle

705800323

$1,274.99

400j

RH Door Panel EXT

705800666

$1,213.82

400j1

Seal

715900703

$96.89

400j2

Seal

715900703

$96.89

400k

Window Switch

710004979

$38.56

400m

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$253.82

400n

Seal 705800290 - 5000 MM

705800289

$216.89

400p

RH Door Panel Kit

715006689

$209.97

400q

RH Interior Handle

705800325

$110.74

400r

Window Guide Bracket

705800595

$166.12

400s

Window Guide Extrusion

705800590

$166.12

400t

Folcked Beltline Trim 705800294 600mm

705800591

$50.74

400u

RH Door Pocket

705800605

$175.35

400v

Plastic Dart

705009405

$1.83

400w

Torx Truss M8 X 25

250000874

$1.74

400x

Socket Head Screw M5 X 10

205951046

$2.38

400y

Black, Dart

293730011

$0.79

400z

Socket Screw M6 X 8

205460860

$0.47

400aa

Stainless Steel Flat Washer

234062670

$1.74

400ab

Torx-truss M/s M6 X 10

250000995

$3.61

400ac

Torx Truss M6X14

250000789

$4.41

400ad

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

400af

Socket Head Screw M8 X 40

205484060

$3.38

400ag

Hex. Flange Elastic Nut M6

233261494

$1.26

400ah

Elastic Flange Nut M8

233281466

$0.83

400aj

Hex. Flange Screw M6 X 20

207662044

$1.66

400ak

RH Latch Cable 2.9''

715900494

$57.86

400am

Interior Latch Cable 28''

715900504

$92.28

400an

RH Power Window Switch Housing

715900527

$23.05

405

Striker Bolt

705800038

$23.05

410

Conical Spring Washer M12

250200005

$2.65

412

Elastic Stop Nut M12

232521416

$1.40

415

Torx Truss M8 X 25

250000874

$1.74

420

Torx Truss M8 X 25

250000874

$1.74

425

RH Front Striker Support

705801097

$41.51

430

RH Female Upper Door Hinge

705800343

$101.51

432

RH Male Upper Door Hinge

705800341

$101.51

433

NEEDS DESCRIPTION

705801188

$115.35

440

Torx Truss M8 X 25

250000874

$1.74
