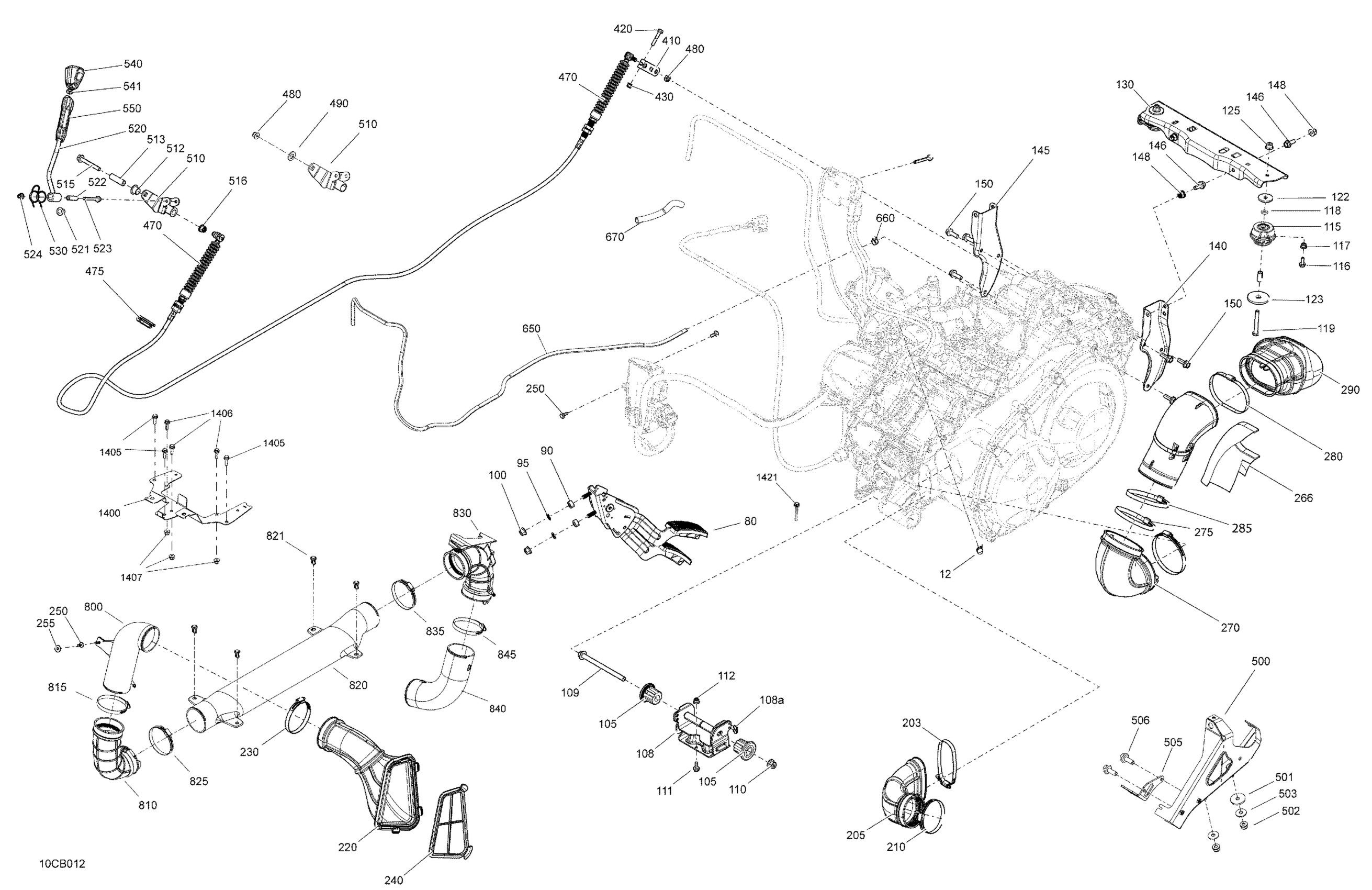

Can-Am Defender PRO HD10 - LTD CAB (9HNA-B-C-D) - 2022 Engine - System Diagram

#

Description
Price

12

Norma Spring Clamp

293650214

$15.35

80

Accelerator Pedal

707001599

$276.89

90

Bushing

707000848

$1.08

95

Push Nut

250100031

$6.86

100

Hex. Flange Nut

233081436

$1.63

105

Vibration Damper

707002915

$36.89

108

Vibration Damper | Includes 108 to 108d

707003061

$147.66

108a

Pop Rivet 3/16"

390402200

$0.26

109

Hex. Flange Screw M10 X 135

230603546

$6.08

110

Hex. Flange Elastic Nut M10

233201436

$1.74

111

Hex. Flange Screw M6 X 20

207662044

$1.66

112

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

115

Rubber Mount

707002590

$59.97

116

Hex. Flange Screw M6 X 20

207662044

$1.66

117

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

118

O-Ring

293300215

$0.88

119

Hex. Flange Screw, M8 X 65

207686544

$9.74

122

Flat Washer M8

250200158

$1.74

123

Flat Washer M8

250200180

$1.79

125

Hex. Flange Nut

233081436

$1.63

130

Rear Link Bracket

707002290

$32.28

140

LH Rear Engine Support

707003338

$12.31

145

RH Rear Engine Support

707003340

$16.12

146

Hex Flange Screw M8 X 20

207582046

$1.25

148

Hex. Elastic Flange Nut M8

233281416

$1.25

150

Hex Flange Screw M8 X 20

207582046

$1.25

203

Norma Clamp

514052924

$10.58

205

Flexible Adapter

706600249

$18.43

210

Norma Clamp

293650091

$4.60

220

Flexible Adaptor

706600084

$41.51

230

Norma Clamp

293650091

$4.60

240

CVT Filter

706600156

Unavailable

250

Torx Screw Truss Head K50X20 T20

250000760

$1.74

255

Washer M5

250200025

$0.61

266

Heat Shield

706600133

$3.08

270

Flexible Adaptor

706600108

$23.05

275

Norma Gear Clamp

514052983

$11.43

280

Norma Gear Clamp

514052983

$11.43

285

Norma Gear Clamp

514052983

$11.43

290

Air Deflector

706600125

$27.66

410

Lever

707000911

$18.43

420

Hex. Flange Screw M6 X 35

207663544

$0.74

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

470

Shift Lever Cable

707002725

$69.20

475

Grommet

293720109

$8.05

480

Hex. Elastic Stop Nut M8

232581414

$0.47

490

Flat Washer 10 mm

234001410

$0.98

500

Shifter Bracket

707002372

$39.97

501

Flat Washer M8

250200158

$1.74

502

Hex. Flange Elastic Nut M8

233281414

$1.14

503

Flat Washer 8 mm

234082410

$1.11

505

Cable Support

707002038

$15.22

506

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

510

Lower Shifter Arm

707002268

$15.22

512

Venturi Bushing

293900001

$6.14

513

Bushing

707003445

$10.62

515

Hex. Flange Screw M8 x 60

207686044

$2.56

516

Hex. Flange Elastic Nut M8

233281414

$1.14

520

Shifter Arm

707002374

$23.05

521

Flanged Bushing

707000869

$2.20

522

Bushing

707001376

$4.22

523

Hex. Flange Screw M6 X 50

207665044

$3.38

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

530

Lever Arm Spring

707000750

$2.75

540

Lever Trim

707003211

$7.95

541

Hex. Jam Nut M8

232180491

$6.18

550

Shifting Arm Cover

707001899

$12.31

650

Hose

219704549

$47.66

660

Oetiker Clamp

293650042

$1.40

670

Tubing 16 Mm 1000Mm Long

219704408

$6.23

800

Front CVT Cooling Duct

706600326

$59.97

810

Flex Adapter

706600289

$27.66

815

Norma Clamp

293650091

$4.60

820

Duct

706600290

$50.74

821

Tuflok Plastic Rivet

293150230

$1.21

825

Norma Clamp

293650091

$4.60

830

Adapter

706600325

$32.28

835

Norma Clamp

293650091

$4.60

840

Front CVT Cooling Duct

706600326

$59.97

845

Norma Clamp

293650091

$4.60

1400

Module Support

707003045

$34.58

1405

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

1406

Hex. Flange Screw M6 X 20

207662044

$1.66

1407

Hex. Flange Elastic Nut M6

233261494

$1.26

1421

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.06
