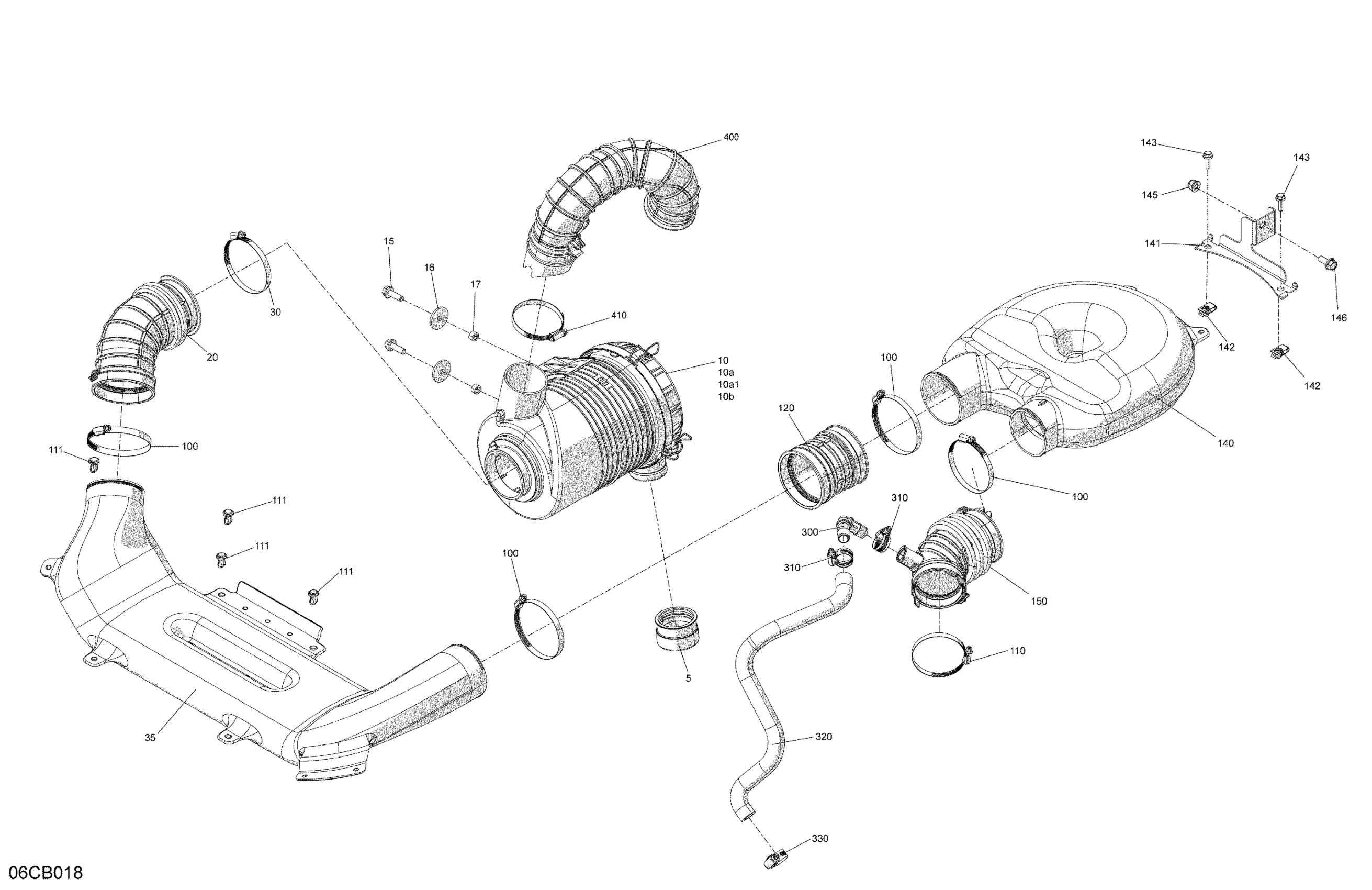

Can-Am Defender PRO HD10 - LTD CAB (9HNA-B-C-D) - 2022 Engine - Air Intake - EVAP Diagram

Description

Price

Duct Bill Valve

715003114

$13.49

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$184.99

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$93.99

10a1

O-Ring

715900514

$19.49

10b

Air Filter

715900394

$52.99

Hex. Flange Screw M8 X 25

207682544

$1.35

Flat Washer M8

250200158

$2.11

Bushing

277000980

$15.99

Front Intake Duct

707800879

$28.99

Norma Clamp

293650096

$3.17

Central Intake Duct

707800836

$83.99

100

Norma Clamp

293650096

$3.17

110

Norma Clamp

293650091

$11.12

111

Tuflok Plastic Rivet

293150230

$1.47

120

Rear Intake Duct

707800880

$21.99

140

Air Inlet Box

707800877

$52.99

141

Support

707800940

$45.99

142

Panel Nut M6 X 1.0

250100198

$2.11

143

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

145

Hex. Flange Elastic Nut M8

233281414

$1.47

146

Hex. Flange Screw M8 X 20

207682044

$1.15

150

Rear Main Intake Duct

707800837

$28.99

300

Elbow Fitting 90

293710155

$9.39

310

Tridon Gear Clamp

293650173

$3.09

320

Crankcase Hose Formed

707800890

$37.99

330

Tridon Gear Clamp

293650173

$3.09

400

Air Inlet Tube

707800752

$43.99

410

Norma Clamp

293650091

$11.12
