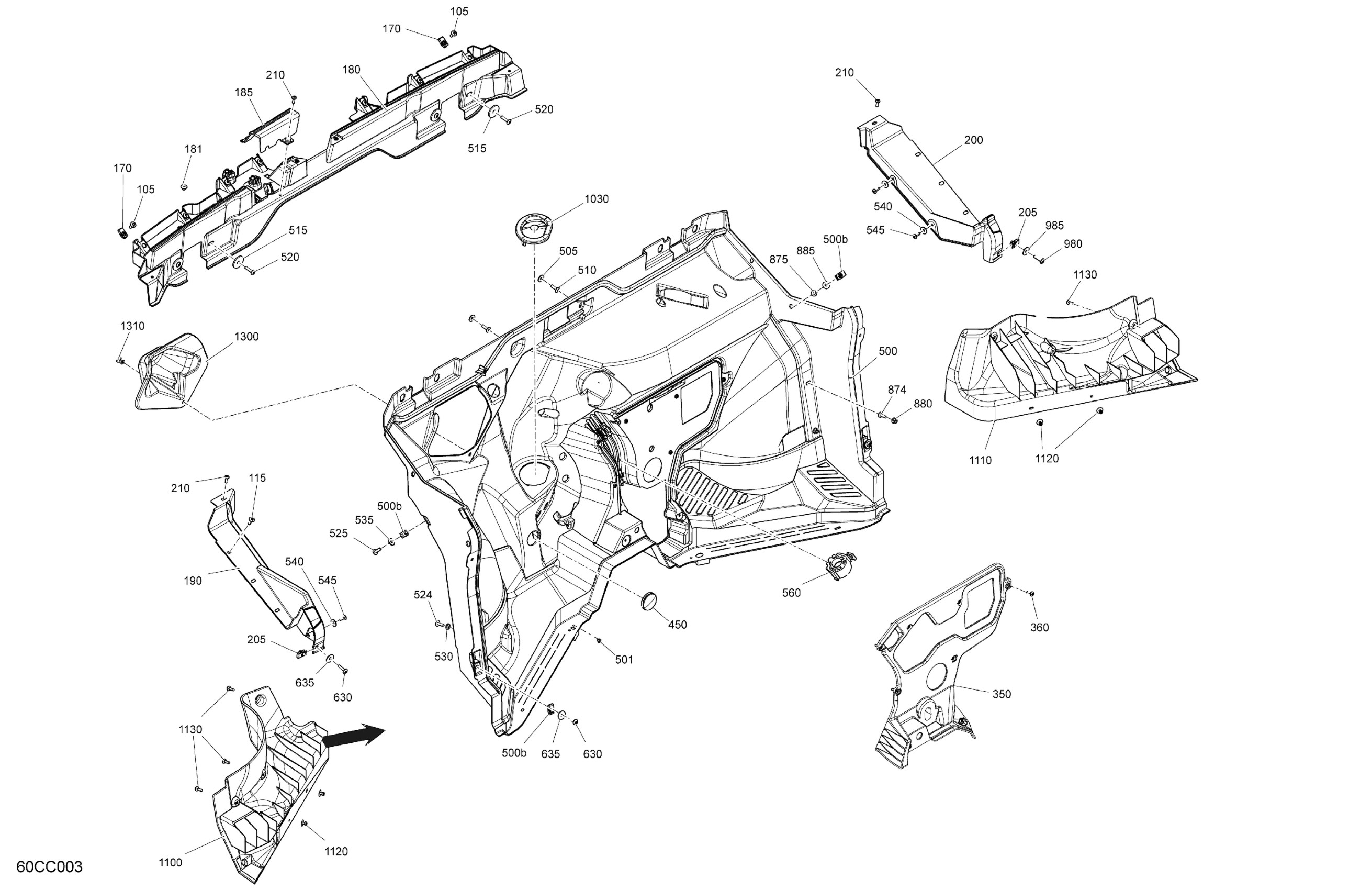

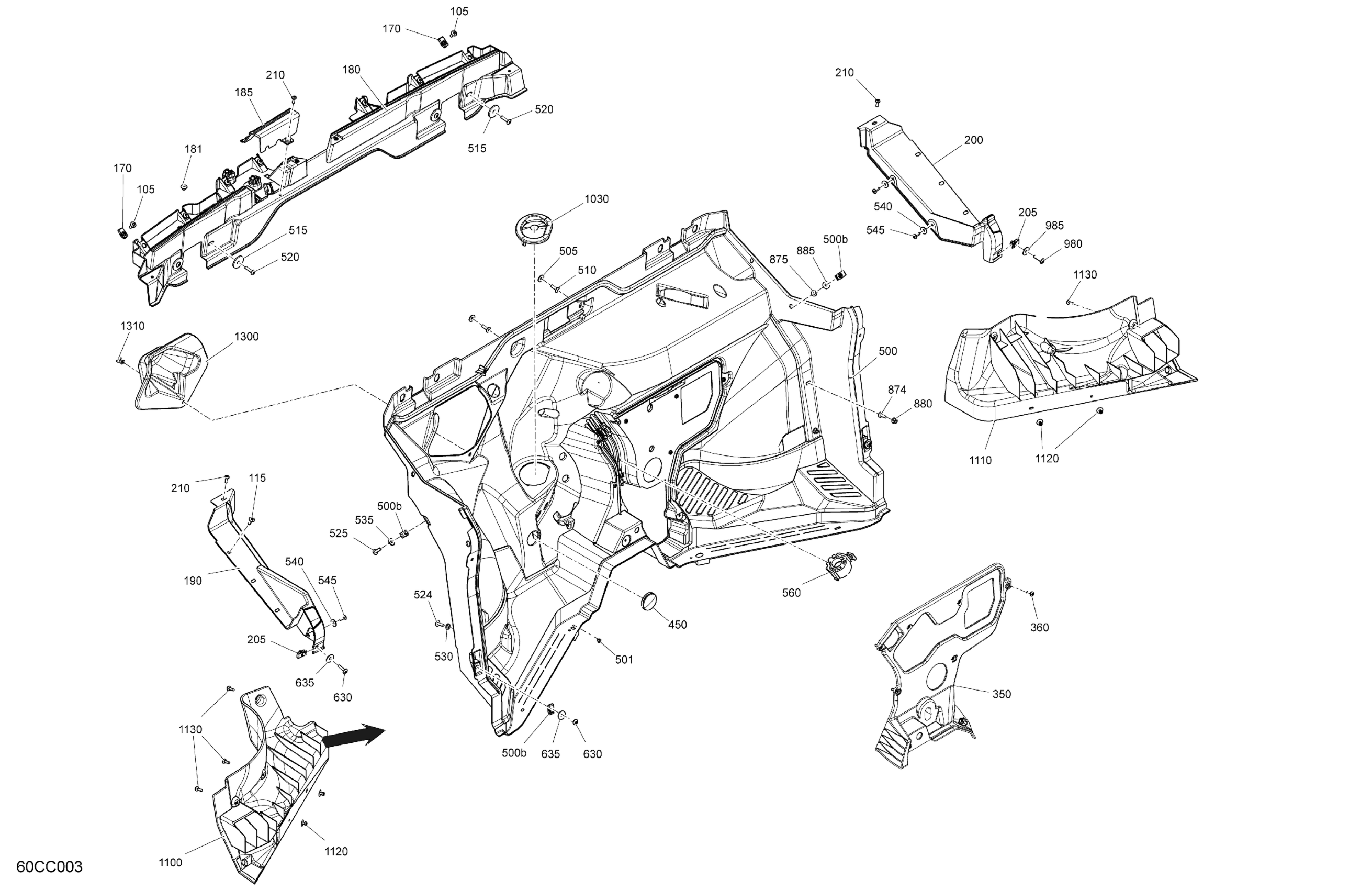

Can-Am Defender HD9 - DPS CAB - 2023 Cab Interior - Firewall Diagram

#

Description
Price

105

Torx Truss Screw M6 X 16

250000721

$1.39

115

Torx Screw M6 X 20

250000722

$1.34

170

Panel Nut M6 X 1.0

250100198

$1.73

180

Front Upper Deflector

707901082

$49.22

181

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

185

Front Upper Deflector

707900747

$10.37

190

LH Upper Deflector

707900738

$49.22

200

RH Upper Deflector

707900739

$49.22

205

Panel Nut M6 X 1.0

250100198

$1.73

210

Torx Screw K50 X 16

250000720

$1.39

350

Front Panel Trim

707900741

$40.27

360

Torx Screw K50 X 16

250000720

$1.39

450

Rubber Cover

293250242

$5.18

500

Front Cab Panel Ass'y | Includes 500 to 500b

707900981

$196.99

500b

Panel Nut M6 X 1.0

250100198

$1.73

501

Pop Rivet 3/16"

390402200

$0.26

505

Stainless Steel Flat Washer

234062670

$1.74

510

Torx Screw M6 X 20

250000722

$1.34

515

Flat Washer M8

250200158

$1.74

520

Torx Truss Screw M6 X 25

250000807

$1.74

524

Torx Screw M6 X 20

250000712

$1.74

525

Torx Screw M6 X 20

250000722

$1.34

530

Hex. Flange Elastic Nut M6

233261494

$1.26

535

Stainless Steel Flat Washer

234062670

$1.74

540

Stainless Steel Flat Washer

234062670

$1.74

545

Torx Screw K50 X 16

250000720

$1.39

560

Split Grommet

707900719

$3.93

630

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

635

Flat Washer M6.6 X 22

250200162

$1.91

874

Torx Screw M6 X 20

250000712

$1.74

875

Torx Screw M6 X 20

250000722

$1.34

880

Hex. Flange Elastic Nut M6

233261494

$1.26

885

Stainless Steel Flat Washer

234062670

$1.74

980

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

985

Flat Washer M6.6 X 22

250200162

$1.91

1030

Sterring Column Trim

707900851

$5.40

1100

LH Front Deflector

707900750

$49.22

1110

RH Front Deflector

707900751

$49.22

1120

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

1130

Torx Screw K50 X 16

250000720

$1.39

1300

Exterior Cover

707900389

$10.67

1310

Tuflok Plastic Rivet

293150230

$1.21
