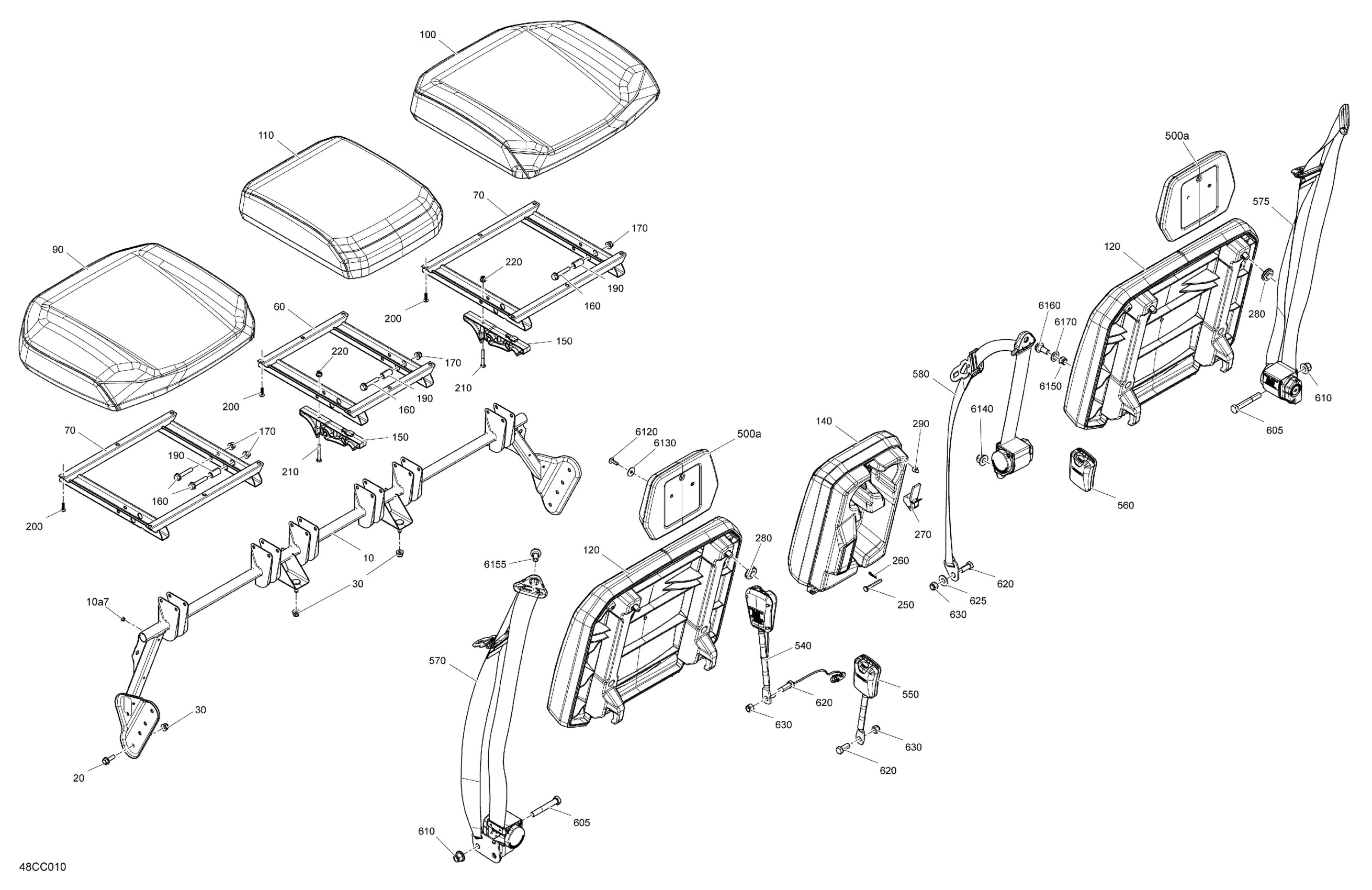

Can-Am Defender HD9 - DPS CAB - 2023 Body - Seat Diagram

#

Description
Price

10

Seat Member | Includes 10 to 10a7

708002817

$126.09

10a7

Pop Rivet 3/16"

390402200

$0.26

20

Hex. Flange Screw M8 X 25

207682544

$0.90

30

Hex. Flange Elastic Nut M8

233281414

$1.14

60

Mid Seat Member

708002815

$182.81

70

Passenger Seat Member

708002821

$182.81

90

LH Cushion Ass'y

708002544

$261.16

100

RH Cushion Ass'y

708001498

$255.94

110

Central Cushion Ass'y

708001629

$223.85

120

Backrest Ass'y

708001701

$379.99

140

Backrest Ass'y

708003155

$349.99

150

Seat Base Pivot

708002581

$9.33

160

Hex. Flange Screw M8 X 45

207684544

$3.57

170

Hex. Flange Elastic Nut M8

233281414

$1.14

190

Bushing

708001903

$2.85

200

Torx Screw Truss Head K50X20 T20

250000760

$1.74

210

Hex. Screw M6 X 45

207064544

$1.96

220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

250

Pin

250400069

$2.88

260

Hairpin Cotter

269800431

$0.97

270

Latch

269501487

$12.97

280

Grommet

517303756

$3.15

290

Rubber Bumper

293830005

$5.33

500a

Headrest

708002853

$52.21

540

Driver Buckle

708002331

$70.99

550

Middle Buckle

708003163

$60.42

560

Passenger Buckle

708002329

$60.42

570

LH Safety Belt

708003082

$219.37

575

RH Safety Belt

708003200

$219.37

580

Central Safety Belt

708003688

$219.37

605

Hex. Screw M12 X 80

207028046

$3.25

610

Elastic Flange Nut M12

233221416

$2.33

620

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

625

Flat Washer M12

250200102

$1.74

630

Lock Nut Nylon 7/16

250100183

$1.64

6120

Torx Screw M6 X 20

250000722

$1.34

6130

Flat Washer M6.6 X 22

250200162

$1.91

6140

Elastic Flange Nut M12

233221416

$2.33

6150

Lock Nut Nylon 7/16

250100183

$1.64

6155

Safety Belt screw

708002504

$4.76

6160

Safety Belt Screw

708000890

$3.79

6170

Position Washer

708000891

$0.97
