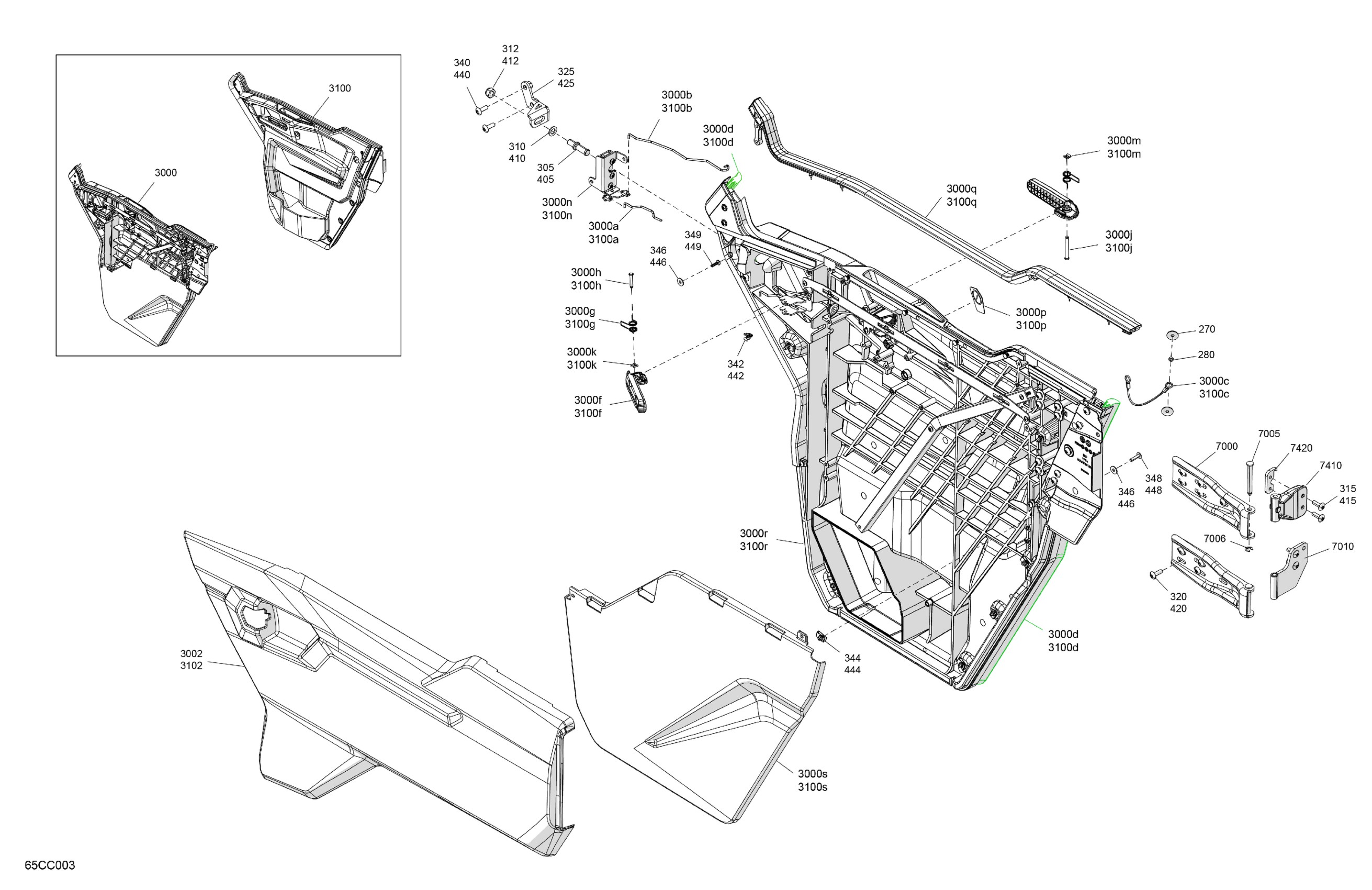

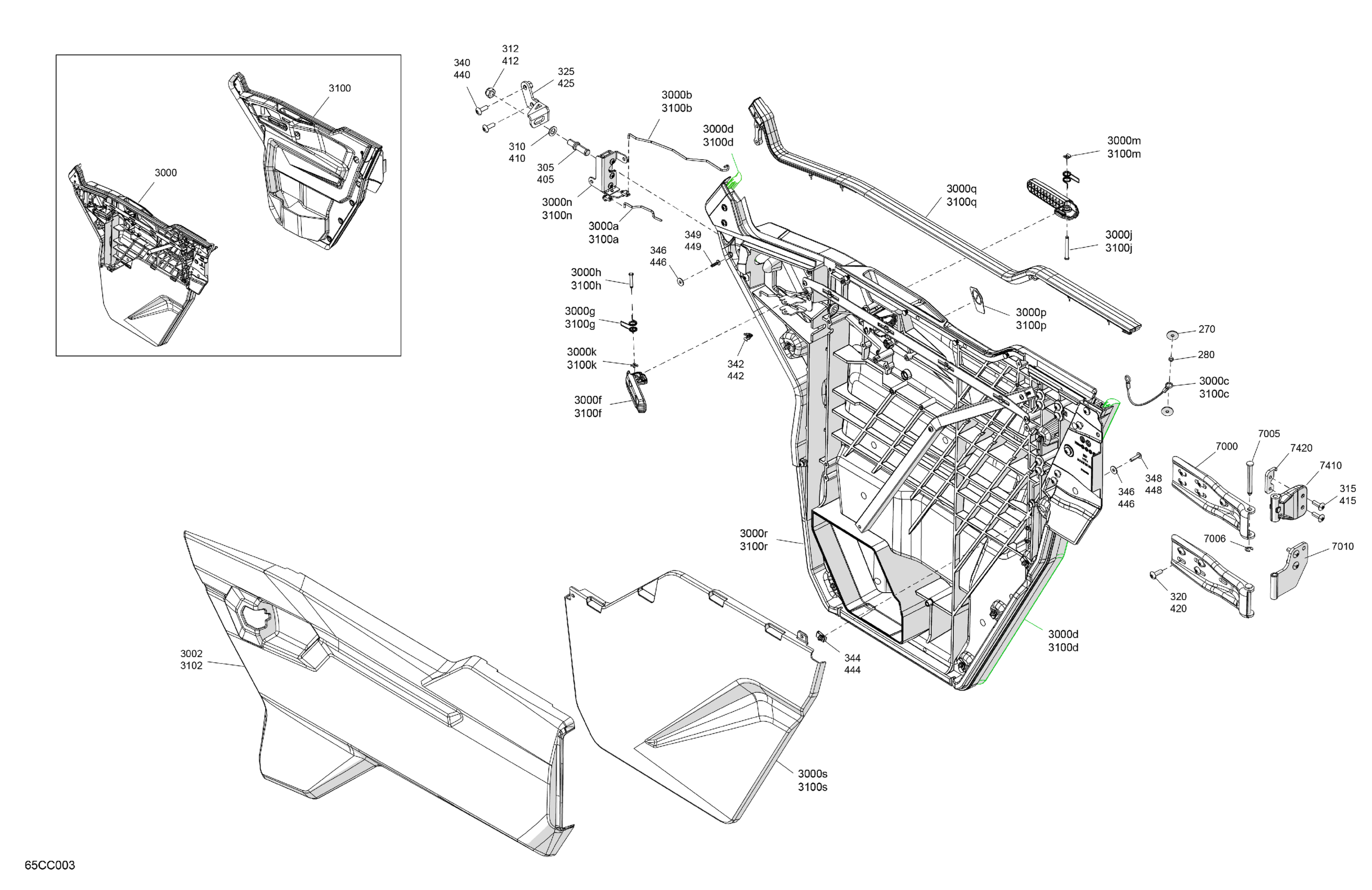

Can-Am Defender HD10 - XMR - 2023 Enclosure Cab - Doors Diagram

#

Description
Price

270

Washer M6

250200029

$1.78

280

Bushing

708300737

$4.43

305

Rod Latch

705800850

$26.84

310

Conical Spring Washer M12

250200005

$2.65

312

Elastic Stop Nut M12

232521416

$1.40

315

Torx Truss M8 X 25

250000874

$1.74

320

Torx Truss M8 X 25

250000874

$1.74

325

LH Front Striker Support

705801086

$40.27

340

Torx Truss M8 X 25

250000874

$1.74

342

Clip

517306478

$1.03

344

Panel Nut M6 X 1.0

250100198

$1.73

346

Stainless Steel Flat Washer

234062670

$1.74

348

Torx Truss Screw M6 X 25

250000807

$1.74

349

Torx Screw Truss Head K50X20 T20

250000760

$1.74

405

Rod Latch

705800850

$26.84

410

Conical Spring Washer M12

250200005

$2.65

412

Elastic Stop Nut M12

232521416

$1.40

415

Torx Truss M8 X 25

250000874

$1.74

420

Torx Truss M8 X 25

250000874

$1.74

425

RH Front Striker Support

705801097

$40.27

440

Torx Truss M8 X 25

250000874

$1.74

442

Clip

517306478

$1.03

444

Panel Nut M6 X 1.0

250100198

$1.73

446

Stainless Steel Flat Washer

234062670

$1.74

448

Torx Truss Screw M6 X 25

250000807

$1.74

449

Torx Screw Truss Head K50X20 T20

250000760

$1.74

3000

LH Front Half Rigid Door | Includes 3000 to 3000s

705801296

$1,729.99

3000a

Guide Pin

705801358

$40.27

3000b

Guide Pin

705801452

$40.27

3000c

Retaining Cable

705801437

$8.25

3000d

Gasket

705801382

$213.40

3000f

Door Handle

705017152

$12.57

3000g

Handle Spring

705013062

$13.28

3000h

Handle Axle

705207440

$10.55

3000j

Guide Pin

705801393

$40.27

3000k

External Retaining Ring

705601875

$3.94

3000m

External Retaining Ring

705602261

Unavailable

3000n

LH Latch

705800872

$179.07

3000p

LH Door Pictogram Label

704909996

Unavailable

3000q

LH Upper Door Trim

705800913

$182.06

3000r

LH Interior Door Panel

705800731

Unavailable

3000s

LH Lower Door Panel

705800716

$239.99

3002

Liquid Titan, LH Upper Door Panel

705801517

Unavailable

3100

RH Front Half Rigid Door | Includes 3100 to 3100s

705801297

$1,729.99

3100a

Guide Pin

705801358

$40.27

3100b

Guide Pin

705801453

$40.27

3100c

Retaining Cable

705801437

$8.25

3100d

Gasket

705801382

$213.40

3100f

Door Handle

705017152

$12.57

3100g

Handle Spring

705013062

$13.28

3100h

Handle Axle

705207440

$10.55

3100j

Guide Pin

705801393

$40.27

3100k

External Retaining Ring

705601875

$3.94

3100m

External Retaining Ring

705602261

Unavailable

3100n

RH Latch

705800873

$179.07

3100p

RH Door Pictogram Label

704909998

Unavailable

3100q

RH Upper Door Trim

705800914

$182.06

3100r

RH Interior Door Panel

705800732

Unavailable

3100s

RH Lower Door Panel

705800717

$239.99

3102

Liquid Titan, RH Upper Door Panel

705801518

Unavailable

7000

Door Hinge

705800751

$37.99

7005

Hinge Pin

705800781

$0.54

7006

Retaining Ring

293370125

$1.91

7010

Lower Hinge

705801025

$39.52

7410

Upper Door Hinge

705800802

$18.63

7420

Support

705210255

$17.13
