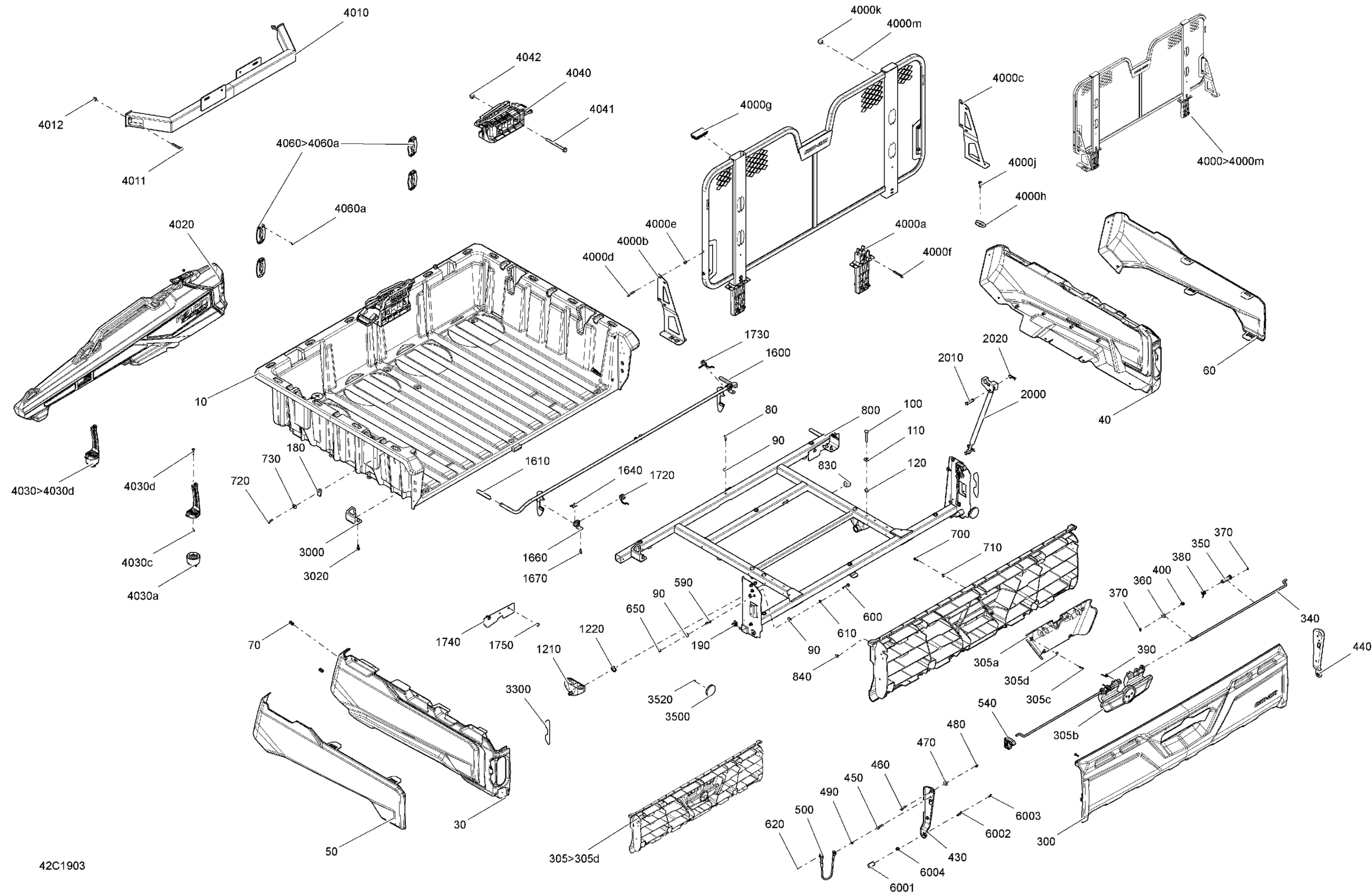

Can-Am Defender HD10 - 2019 Rear Cargo Box - Hunting Edition Diagram

#

Description
Price

30

LH Panel Exterior

708304328

$175.35

40

RH Panel

708302579

$175.35

50

Break Up Country, LH Open Carrier Trim | Package XT, Cab, Camo

708304247

$263.05

60

Break Up Country, RH Open Carrier Trim | Model Break Up Country

708304246

$263.05

70

Tuflok Plastic Rivet

293150230

$1.21

80

Torx Screw M6 X 25 | XT Models

250000728

$3.61

90

Flat Washer M6.6 X 22

250200162

$1.91

100

Carriage Bolt M8 X 60

207786044

$10.54

110

Flat Washer 8 mm

234082410

$1.11

120

Hex. Flange Elastic Nut M8

233281414

$1.14

180

Panel Nut M6 X 1.0

250100224

$1.70

190

Panel Nut M6 X 1.0

250100198

$1.73

200

Deflector

708302584

$15.22

210

Pop Rivet 3/16”

293150108

$1.23

220

Washer

517124300

$0.16

300

Outside Tailgate

708301227

$115.35

305

Panel Cargo Box Ass'y | Includes 305 to 305f

708302914

$341.51

305a

Handle Support

708302913

$27.66

305b

Handle

708302911

$27.66

305c

Torx Screw Truss Head K50X20 T20

250000760

$1.74

305d

Washer M5

250200025

$0.61

340

Handle Rod

708301500

$6.45

350

Bushing Hinge

708304564

$3.08

360

Washer

708301653

$2.31

370

Hairpin Cotter

269800431

$1.00

380

Spring

705009468

$4.62

390

Spring

705009470

$12.91

400

Spring

705009471

$12.91

430

LH Tailgate Support

708304219

$23.05

440

RH Tailgate Support

708304221

$27.66

450

Hex. Flange Screw M6 X 35

207663554

$1.74

460

Hex. Flange Screw M6 X 25

207662554

$1.48

470

Flat Washer M6.6 X 22

250200162

$1.91

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

490

Bushing

708300737

$4.62

500

Cable

708301491

$32.28

540

Latch Stopper

708304062

$9.29

590

Hex. Flange Screw M6 X 25

207662554

$1.48

600

Hex. Flange Screw M6 X 35

207663554

$1.74

610

Flat Washer

224061121

$0.44

620

Bushing

708300737

$4.62

650

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

700

Torx Screw Truss Head K50X20 T20

250000760

$1.74

710

Washer M5

250200025

$0.61

720

Torx Truss Screw M6 X 25

250000807

$1.74

730

Flat Washer M6.6 X 22

250200162

$1.91

800

Cargo Box Frame

708302740

$313.82

830

Rubber Stopper

708001827

$6.45

840

Rubber Bumper

293830005

$5.33

1210

Support Pivot

708303735

$16.89

1220

O-Ring

293300131

$5.52

1600

Latch Ass'y

708302296

$83.05

1610

Cap Latch Lever

708300358

$5.38

1640

Half Ring

705500033

$4.92

1660

Clamp Retainer

708301479

$3.08

1670

Hex. Flange Screw M6 X 16

210261640

$1.74

1720

Spring

708301983

$7.60

1730

Spring

708301984

$3.85

1740

Deflector

708302267

$13.83

1750

Tuflok Plastic Rivet

293150230

$1.21

2000

Gas Shock Absorber

715007129

$50.74

2010

Clevis Pin

250400075

$4.73

2020

Hair Pin

414575600

$1.51

3000

Retaining Plate

708301480

$8.45

3020

Hex. Flange Screw M6 X 20

207662054

$0.83

3300

Reflector

704905074

$11.15

3500

Red Reflector

705011221

$12.32

3520

Elastic Stop Nut M5

232551414

$0.72

4000

Headache Rack Kit | Includes 4000 to 4000m

708302326

$479.99

4000a

Adjuster Foot

715003498

$96.89

4000b

LH Corner Support

708301759

$41.51

4000c

RH Corner Support

708301760

$41.51

4000d

Hex. Flange Screw M6 X 40

229000037

Unavailable

4000e

Hex. Flange Elastic Nut M6

233261494

$1.26

4000f

Hex. Flange Screw M6 X 55

229000023

$2.75

4000g

Cap

705204964

$5.52

4000h

Plate

708301907

$15.35

4000j

Hex Flange Screw M6 X 25

250000841

$6.15

4000k

Bumper

293830179

$4.60

4000m

Pop Rivet 1/8" | SM5

390401600

$5.32

4010

Firearm Support

708302307

$233.82

4011

Hex. Flange Screw M8 x 60

207686044

$2.56

4012

Hex. Flange Elastic Nut M8

233281414

$1.14

4013

Flat Washer M8

250200158

$1.74

4020

FIREARM BOOT CASE - Call your local BRP dealership

705011442

Unavailable

4030

Tool Holder Kit | Includes 4030 to 4030d

715003059

$67.66

4030a

Tool Holder Base | Package Hunter

705010209

$7.37

4030b

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.48

4030c

Torx Screw M6 X 30

235563054

$3.61

4040

Firearm Mount

705011441

$119.97

4041

Hex. Flange Screw M10 X 125

230602546

$6.08

4042

Hex. Flange Elastic Nut M10

233201436

$1.74

4060

Adaptor Kit | Includes 4060 to 4060 a

715003058

$24.46

4060a

Rivet 3/16"

293150102

$0.71

4070

LH Protector Support

708302424

$36.89

4080

RH Protector Support

708302425

$36.89

4090

Flat Washer M8

250200158

$1.74

4100

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

4110

Hex. Flange Screw M6 X 35

207663554

$1.74
