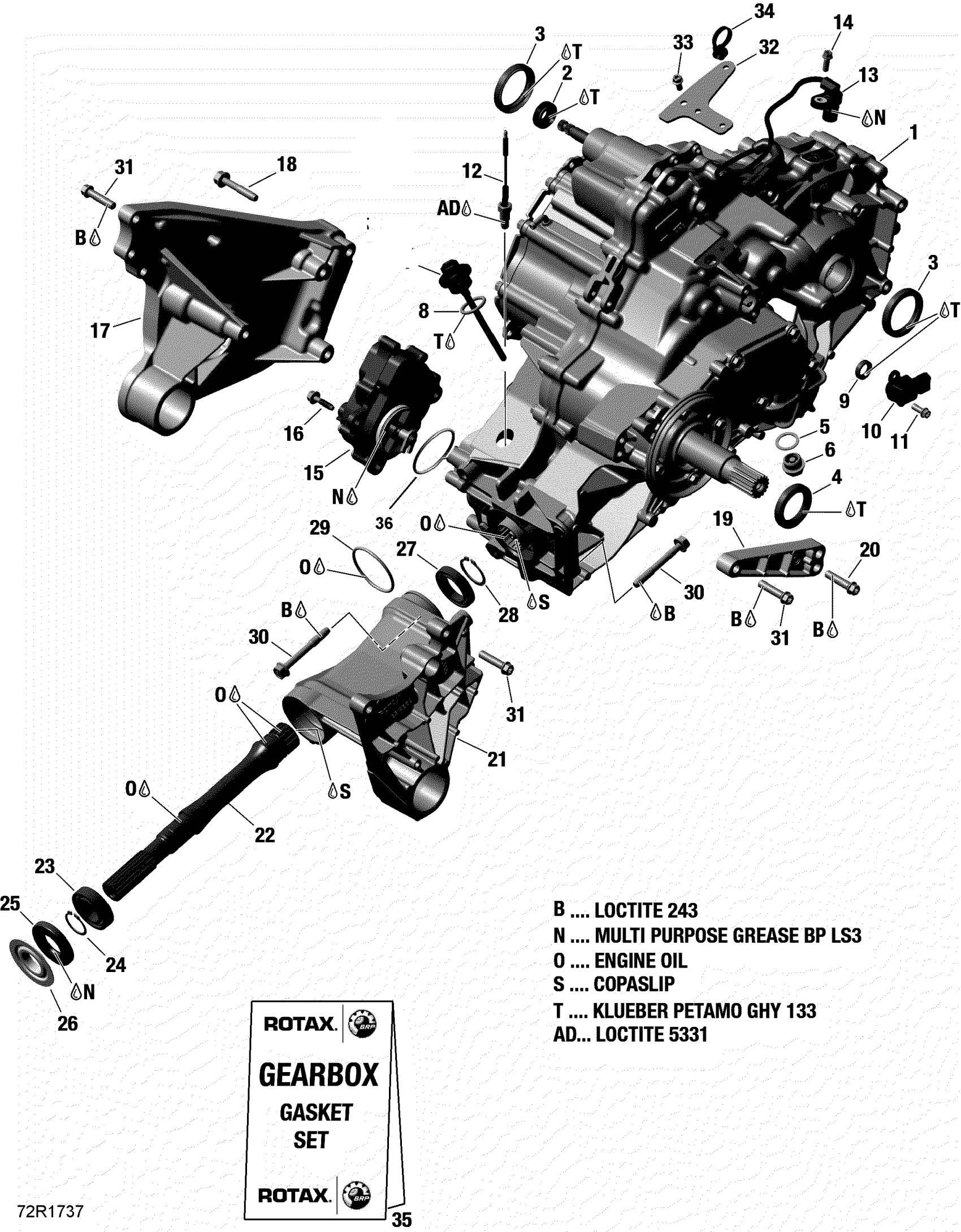

Can-Am Defender HD10 - 2019 Gear Box And Components Defender XMR Diagram

#

Description
Price

1>14

Gearbox

420686863

$2,859.99

1>14

Kit Gear Box | check number on side of transmission

703501142

$3,389.99

2

Oil Seal

420250452

$17.59

3

Oil Seal | Included in gasket set gearbox

420230137

$23.49

4

Oil Seal

420950089

$19.49

5

Crush Washer

420552280

$3.70

6

Drain Plug M18 X 1.5

420840278

$23.99

7

Oil Dipstick

420256806

$17.05

8

O-Ring

420631640

$2.11

9

Oil Seal

420931802

$7.65

10

Angle Rotation Sensor

420666850

$204.99

11

Torx Flange Screw M6 X 16

420440162

$3.17

12

3 Position Switch

420640192

$42.49

13

Camshft Position Sensor Ass'y

420265727

$109.99

14

Torx Flange Screw M6 X 16

420440162

$3.17

15

Actuator Ass'y 4 pins

715900613

$319.99

16

Collar Screw M6 x 25

420441951

$2.19

17

Kit Engine Bracket

703501134

$153.49

18

Torx Flange Screw M8 X 45

420441932

$1.79

19

Gear Box Bracket

420212641

$26.99

20

Torx Flange Screw M8 X 35

420440861

$3.27

21

Engine Bracket PTO Side

420212631

$174.99

22

Drive Shaft

420637600

$301.99

23

Ball Bearing

420232342

$26.49

24

Circlip

420945810

$2.11

25

Oil Seal

420831178

$35.99

26

Cover

420626990

$10.49

27

Ball Bearing

420632275

$43.49

28

Retaining Ring

420945610

$2.61

29

O-Ring | Included in gasket kit

420450393

$2.46

30

Torx Flange Screw M8 X 65

420440403

$2.19

31

Torx Flange Screw M8 X 35

420440861

$3.27

32

Support Plate

420651042

$19.99

33

Hex. Flange Screw M6 X 12

420440147

$2.00

34

Tie Rap

420951345

$2.61

35

To be determined

TBD

Unavailable

36

O-Ring

293300117

$4.44
