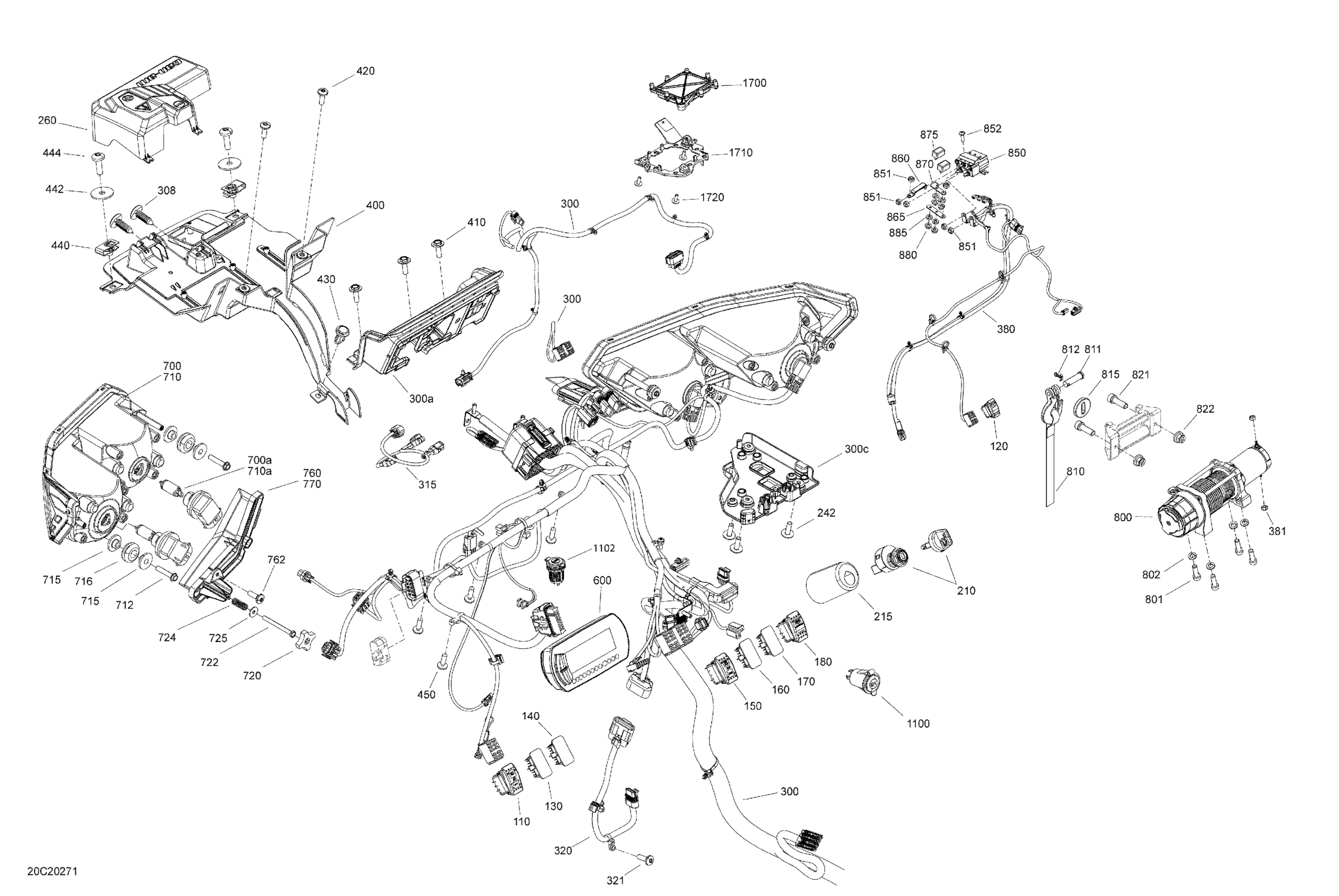

Can-Am Defender HD10 - Except XMR - 2020 Electric - System - Front Section - Mossy Oak Edition Diagram

#

Description
Price

110

Light Switch

710004492

$46.12

120

Switch Winch

710002052

$28.92

130

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

140

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

150

Differential Switch

710006040

$32.28

160

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

170

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

180

Differential Lock Switch

710005470

$46.12

210

Inter Allumage *Ignition

710007870

$55.35

215

Key Switch Protector

710005739

$2.69

242

Screw PT Type K-50 X 16

250000959

$1.74

260

Junction Block Cover

710006707

$6.45

300

Main Wiring Harness | Includes 300 to 300c

710006750

$876.89

300a

Fusebox Support

710006640

$7.69

300c

Connector Support

710006706

$5.00

308

Black, Dart

293730006

$0.81

315

Front Differential Wiring Harness

710006807

$46.12

320

Throttle Pedal Harness

710006837

$226.12

321

Torx Screw K50 X 16

250000720

$1.39

380

Winch Wiring Harness

710006654

$106.12

381

Elastic Stop Nut M6

232561434

$1.55

400

Wiring Harness Support

710006649

$22.28

410

Screw PT Type K-50 X 16

250000959

$1.74

420

Torx Screw K50 X 16

250000720

$1.39

430

Tuflok Plastic Rivet

293150230

$1.21

440

Panel Nut M6 X 1.0

250100198

$1.73

442

Washer M6

250200029

$1.83

444

Torx Screw M6 X 20

250000712

$1.74

450

Torx Screw K50 X 16

250000720

$1.39

600

Compact Multifonction Gauge | Package DPS

710006739

$355.35

700

LH Beam | Includes 700 to 700a

710008316

$189.20

700a

Halogen Bulb H8 12V 35W Blue

715900653

$46.12

710

RH Beam | Includes 710 to 710a

710008317

$189.20

710a

Halogen Bulb H8 12V 35W Blue

715900653

$46.12

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

715

Shoulder Bushing

710004749

$2.75

716

Grommet

709000582

$4.38

720

Handle

572106600

$9.31

722

Hex. Screw K40 X 45

250000718

$1.74

724

Spring

517168600

$6.91

725

Flat Washer 4 mm, Stainless

234042600

$0.92

760

Deep Black, LH Front Headlight Trim

710008973

$19.20

762

Torx Screw K50 X 16

250000720

$1.39

770

Deep Black, RH Front Headlight Trim

710008974

$19.20

800

Electric Winch

710006990

$738.43

801

Socket Head Screw M8 X 30

205083044

$0.92

802

Lock Washer 8 mm

234181401

$0.89

810

Winch Hook Kit

705014949

$27.66

811

Winch Hook Kit

705014949

$27.66

812

Winch Hook Kit

705014949

$27.66

815

Stopper

710007028

$10.18

821

Socket Screw M10 x 30 | XT

205003044

$2.61

822

Hex. Flange Elastic Nut M10

233201414

$1.26

850

Solenoid

710006991

$59.97

851

Elastic Stop Nut M6, Brass

232561200

$3.51

852

Torx Screw K50 X 16

250000720

$1.39

860

Power Bar

710004772

$11.98

865

Copper Busbar

710006401

$11.98

870

Power Bar

710004873

$11.98

875

Circuit Breaker 50 Amp

710007039

$18.43

880

Hex. Flange Nut M5

250100071

$1.77

885

Lock Washer Helical M6

234161601

$0.92

1100

12V Power Outlet

710005374

$27.27

1102

USB Outlet

219400510

$40.92

1700

Front Drive Module

710006479

$447.66

1710

FDM Support

710005532

$6.92

1720

Screw PT Type K-50 X 16

250000959

$1.74
