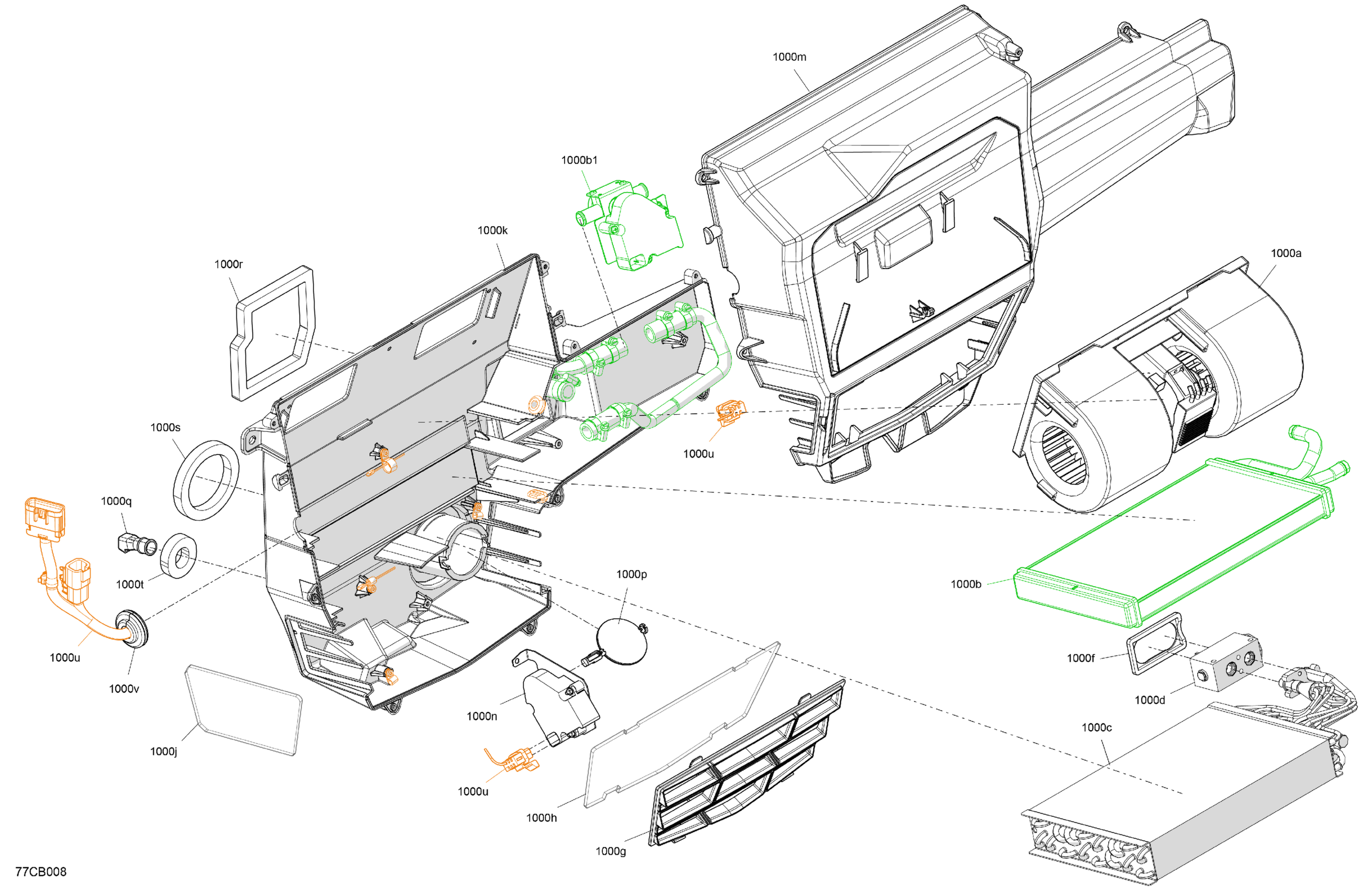

Can-Am Defender 6X6 HD10 - LTD CAB - 2022 Enclosure Cab - Air Conditioning Unit Diagram

Description

Price

1000a

Fan

520001536

$410.74

1000b

Heater Coil | Includes 1000b to 1000b1

705800648

$646.12

1000b1

Valve Ass'y

705800486

$286.12

1000c

Evaporator | Includes 1000c to 1000c2

705800694

$410.74

1000d

Expansion Valve

705800693

$73.82

1000f

Gasket

705800519

$16.89

1000g

Grille Unit

705800453

$11.18

1000h

Air Filter

705800440

$46.12

1000j

Air Filter

705800430

$32.28

1000k

Front Cover

705800383

$129.20

1000m

Rear Cover

705800384

$106.12

1000n

Actuator Ass'y

705800490

$286.12

1000p

Door Vent

705800488

$6.75

1000q

Drain Valve

705800809

$6.45

1000r

Self Adhesive Weather Strip

705800494

$11.98

1000s

Self Adhesive Weather Strip

705800495

$11.98

1000t

Self Adhesive Weather Strip

705800496

$6.15

1000u

Air Conditioning Wiring Harness

705800457

$309.20

1000v

Grommet 5/8'' | Not Shown

520001676

$7.09

1000w

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

1000x

Mounting Clip | Not Shown

715900670

$8.45
