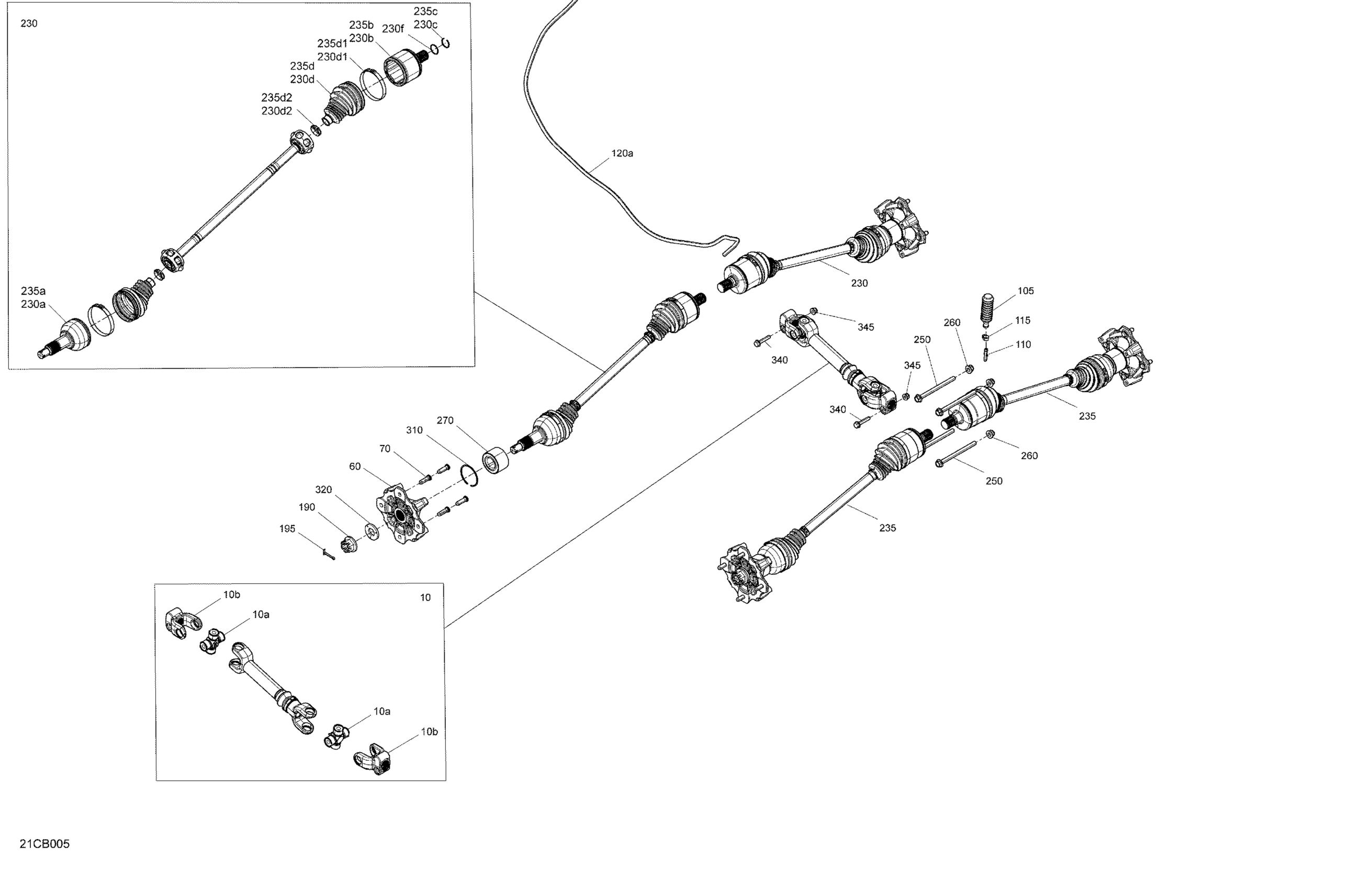

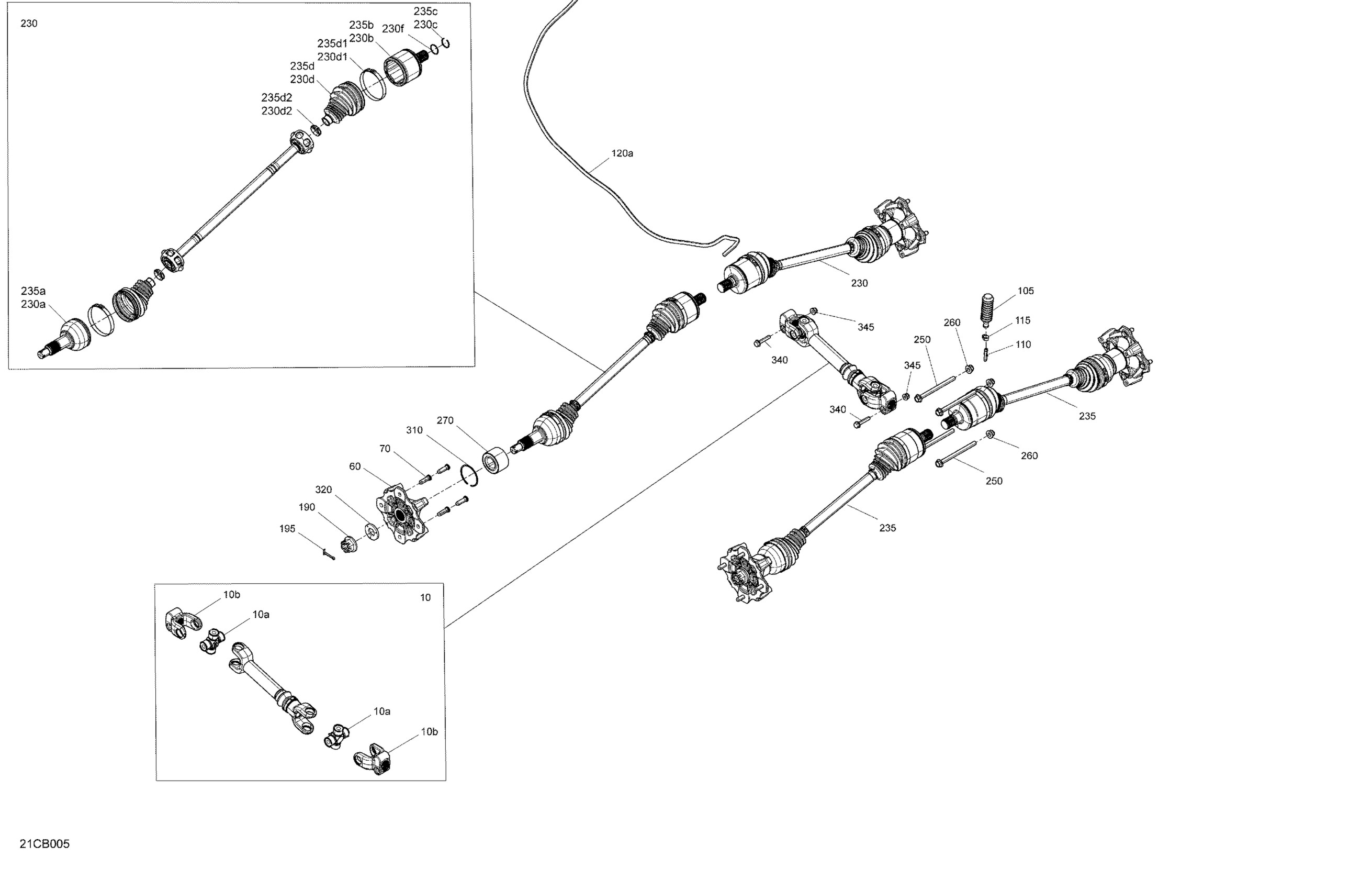

Can-Am 003 - Defender 6X6 HD10 - LTD CAB - North America, 2022 04- Drive - Rear - Common Parts Diagram

Description

Price

Drive Axle Ass'y | Includes 10 to 10b

705502784

$264.99

10a

U-joint (universal joint) Kit

715900648

$78.49

10b

Yoke

715900645

$24.99

Wheel Hub

705502338

$116.49

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

105

Rubber Bellow | 4X4

705400552

$6.14

110

Straight Fitting

293710039

$7.59

115

Oetiker Clamp

293650042

$3.09

120a

POLYURETHANE HOSE - Call your local BRP dealership

293830195

Unavailable

190

Castle Nut M20

250100193

$8.05

195

Cotter Pin

250400084

$2.29

230

Half Shaft | Includes 230 to 230f

705503051

$243.99

230a

JOINT_CV EXT - Call your local BRP dealership

715900429

$244.99

230b

Plunging Joint

715900444

$275.49

230c

Circlip

705501781

$6.50

230d

Boot Kit

705501864

$42.49

230d1

Oetiker Clamp, 82.1 mm

715900241

$10.33

230d2

Oetiker Clamp, 27.3 mm

715900242

$10.33

230f

O-Ring

715900579

$2.51

235

Half Shaft | Includes 235 to 235d2

705503271

$243.99

235a

JOINT_CV EXT - Call your local BRP dealership

715900429

$244.99

235b

Plunging Joint

715900433

$259.49

235c

Circlip

705501781

$6.50

235d

Boot Kit

705501864

$42.49

235d1

Oetiker Clamp, 82.1 mm

715900241

$10.33

235d2

Oetiker Clamp, 27.3 mm

715900242

$10.33

250

Hex. Flange Screw, M10 X 130

230603046

$7.41

260

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M20

250200170

$14.74

340

Hex. Flange Screw M8 X 42

250001050

$1.16

345

Hex. Elastic Flange Nut M8

233281416

$1.48
