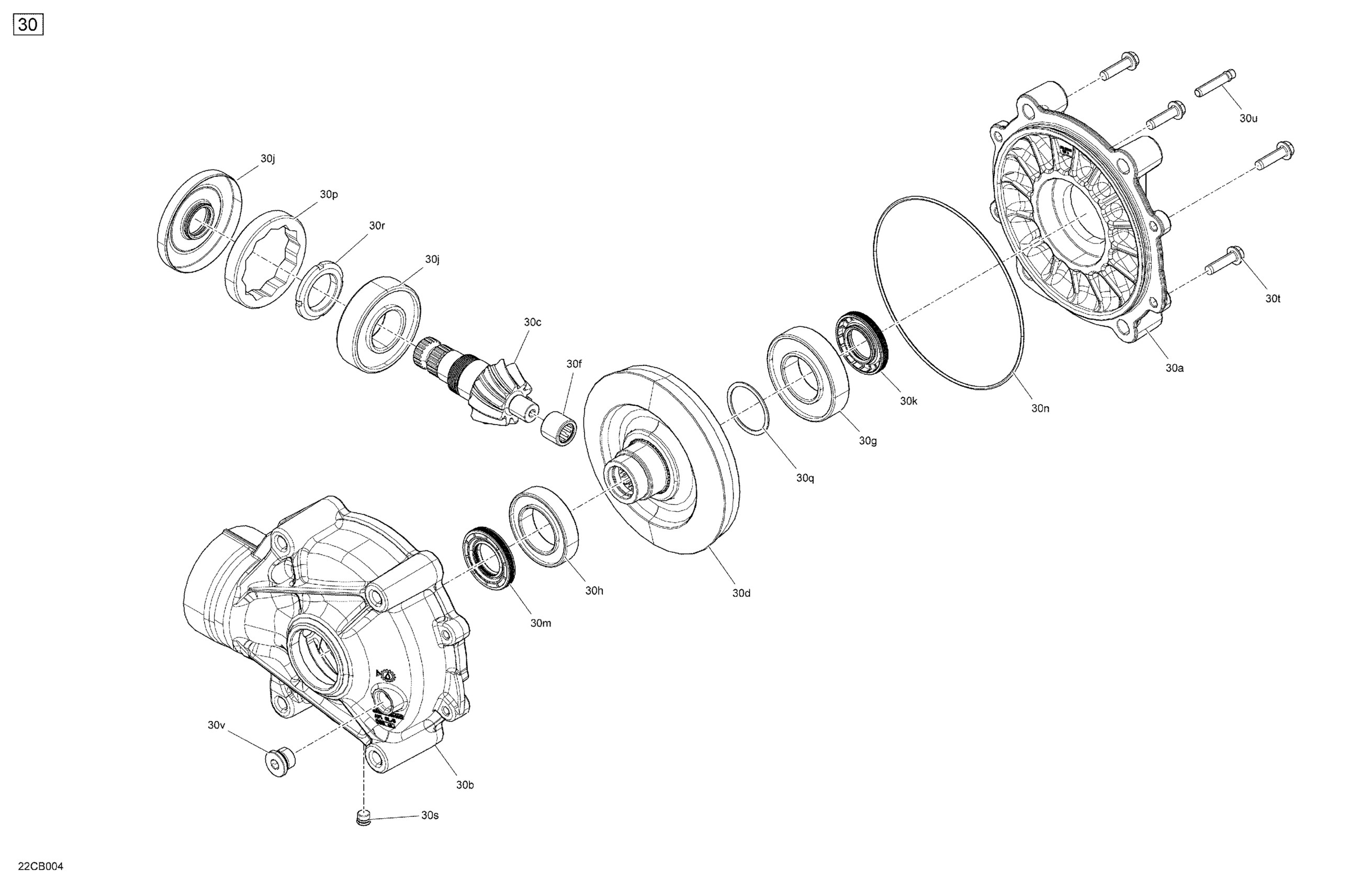

Can-Am Defender 6X6 HD10 - LTD CAB - 2022 Drive - Final Drive Unit Diagram

Description

Price

Final Drive Unit | Includes 30 to 30s

705502827

$1,409.99

30a

Rear Cover

705502518

$179.99

30b

Pinion Cover

705502519

$179.99

30c

Gear 10 Teeth

705502828

$349.99

30d

36 Tooth Gear

705502109

$499.99

30f

Needle Bearing

705501874

$73.99

30g

Ball Bearing

705501875

$78.49

30h

Ball Bearing

705501876

$78.49

30j

Ball Bearing

705501877

$78.49

30k

Oil Seal

705502829

$36.99

30m

Oil Seal

705502110

$20.49

30n

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$9.27

30p

Nut

705501882

$36.99

30q

Shim Kit

705501883

$46.99

30r

Nut

705502830

$20.99

30s

Drain Plug | After May 30, 2014

705501885

$14.22

30t

Bolt

705501886

$7.69

30u

Vent Valve

705401935

$16.49

30v

Fill Level Plug

705501889

$20.49
