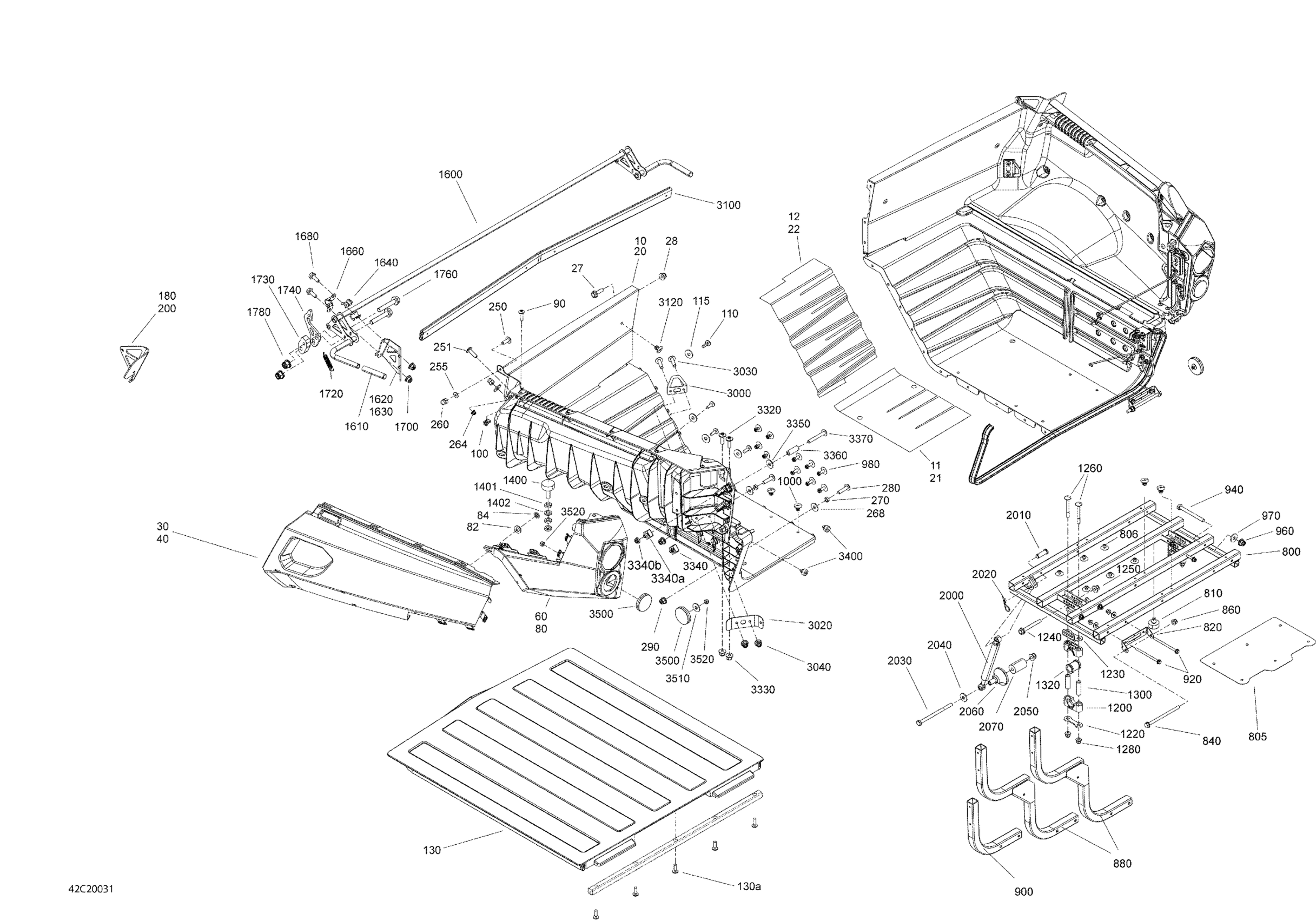

Can-Am Commander MAX 800R EFI - 2020 Rear Cargo Box - Box Diagram

#

Description
Price

10

Left Box Kit

715002361

$229.97

11

Heat Deflector Sheet

708300809

$9.20

12

Heat Deflector Sheet

708300811

$8.45

20

Right Box Kit | Com-Max

715003387

$229.97

21

Heat Deflector Sheet

708300810

$9.20

22

Heat Deflector Sheet

708300812

$9.20

27

Hex. Flange Screw M6 X 20

207662054

$0.83

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

30

Squadron Green, LH Rear Fender | Squadron Green Models

708302337

$128.43

40

Squadron Green, RH Rear Fender | Squadron Green Models

708302338

$128.43

60

LH Rear Facia

708301383

$19.97

80

RH Rear Facia

708301384

$19.97

82

Flat Washer 8 mm, Nylon

234081100

$1.00

84

Push Nut

732610072

$1.72

90

Torx Screw M5 X 20

250000724

$1.39

100

Panel Nut M5 X 0.8

250000958

$3.48

110

Torx Screw K50 X 16

250000720

$1.39

115

Stainless Steel Flat Washer

234062670

$1.74

130

Separator Pannel Ass'y | Includes 16 to 17

708300131

$263.05

130a

Torx Screw K50 X 16

250000720

$1.39

180

LH Painted Rail Cap | Except XT

708300333

$15.35

200

RH Painted Rail Cap | Except XT

708300334

$15.22

250

Torx Truss Screw M6 X 16

250000721

$1.39

251

Torx Screw M6 X 20

250000722

$1.34

255

Stainless Steel Flat Washer

234062670

$1.74

260

Domed Nut M6

232361493

$1.77

264

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

268

Stainless Steel Flat Washer

234062670

$1.74

270

Bushing

708300737

$4.62

280

Torx Screw M6 X 25

250000758

$1.74

290

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

800

Black Box Support

708300875

$290.74

805

Heat Deflector

708300780

$12.91

806

Pop Rivet 3/16"

293150103

$0.54

810

Rubber Stopper

708000884

$6.45

820

Bracket Pivot

708300185

$3.85

840

Hex. Flange Screw M8 X 130

230683034

$6.15

860

Hex. Flange Elastic Nut M8

233281414

$1.14

880

Black Welded Lateral Support

708300879

$46.12

900

Black Lateral Support

708300877

$170.74

920

Hex. Flange Screw M6 X 95

207669584

$3.28

940

Hex. Screw M6 X 65

207066544

$0.46

960

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

970

Flat Washer 6 mm

234062410

$0.64

980

Pop Rivet 3/16"

293150100

$1.08

1000

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1200

Housing Half

506150400

$7.31

1220

Stopper Plate

506150600

$4.15

1230

Adjustable Stopper Plate

708300210

$3.85

1240

Hex. Flange Screw M6 X 50

207665044

$3.38

1250

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1260

Carriage Bolt M8 X 70

207787044

$1.11

1280

Hex. Flange Elastic Nut M8

233281414

$1.14

1300

Housing Bushing

506150500

$7.49

1320

Pivot Bushing

708300172

$3.85

1400

Frame Rubber Bumper

293720091

$8.45

1401

Hex. Jam Nut M8

232180600

$0.56

1402

Lock Washer 8 mm

234181401

$0.89

1600

Cargo Handle Ass'y

708300751

$73.82

1610

Cap Latch Lever

708300358

$5.38

1620

LH Latch Lever Support

708300278

$8.45

1630

RH Latch Lever Support

708300351

$8.45

1640

Half Ring

705500033

$4.92

1660

Clamp Reatiner

708300392

$2.75

1680

Hex. Flange Screw M6 X 16

207661644

$0.61

1700

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1720

Spring

708300454

$3.85

1730

Spacer

708300902

$8.45

1740

Box Retainer

708300136

$7.60

1760

Hex. Flange Screw M6 X 45

250001028

$1.07

1780

Hex. Flange Elastic Nut M8

233281414

$1.14

2000

Gaz Shock

708301136

$36.89

2010

Pin

414079100

$2.23

2020

Hair Pin

414575600

$1.51

2030

Hex. Screw M6 X 90

207069044

$4.02

2040

Flat Washer 6 mm

234062410

$0.64

2050

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

2060

Spacer

708301059

$17.66

2070

Spacer

708300470

$7.37

3000

Retaining Plate

708300183

$8.45

3020

Retaining Plate Support

708300206

$3.98

3030

Torx Screw M6 X 25

250000758

$1.74

3040

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

3100

Front Support

708301633

$27.66

3120

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

3320

Torx Screw M6 X 20

250000722

$1.34

3330

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

3340

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

3340a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

3340b

Hex. Elastic Stop Nut M6

232561600

$0.92

3350

Stainless Steel Flat Washer

234062670

$1.74

3360

Spacer

708300736

$8.45

3370

Torx Screw M6 X 45

250000748

$1.56

3400

Rubber Bumper

293830005

$5.33

3500

Red Reflector

705011221

$12.32

3510

Stainless Steel Flat Washer

234062670

$1.74

3520

Elastic Stop Nut M5

232551414

$0.72
