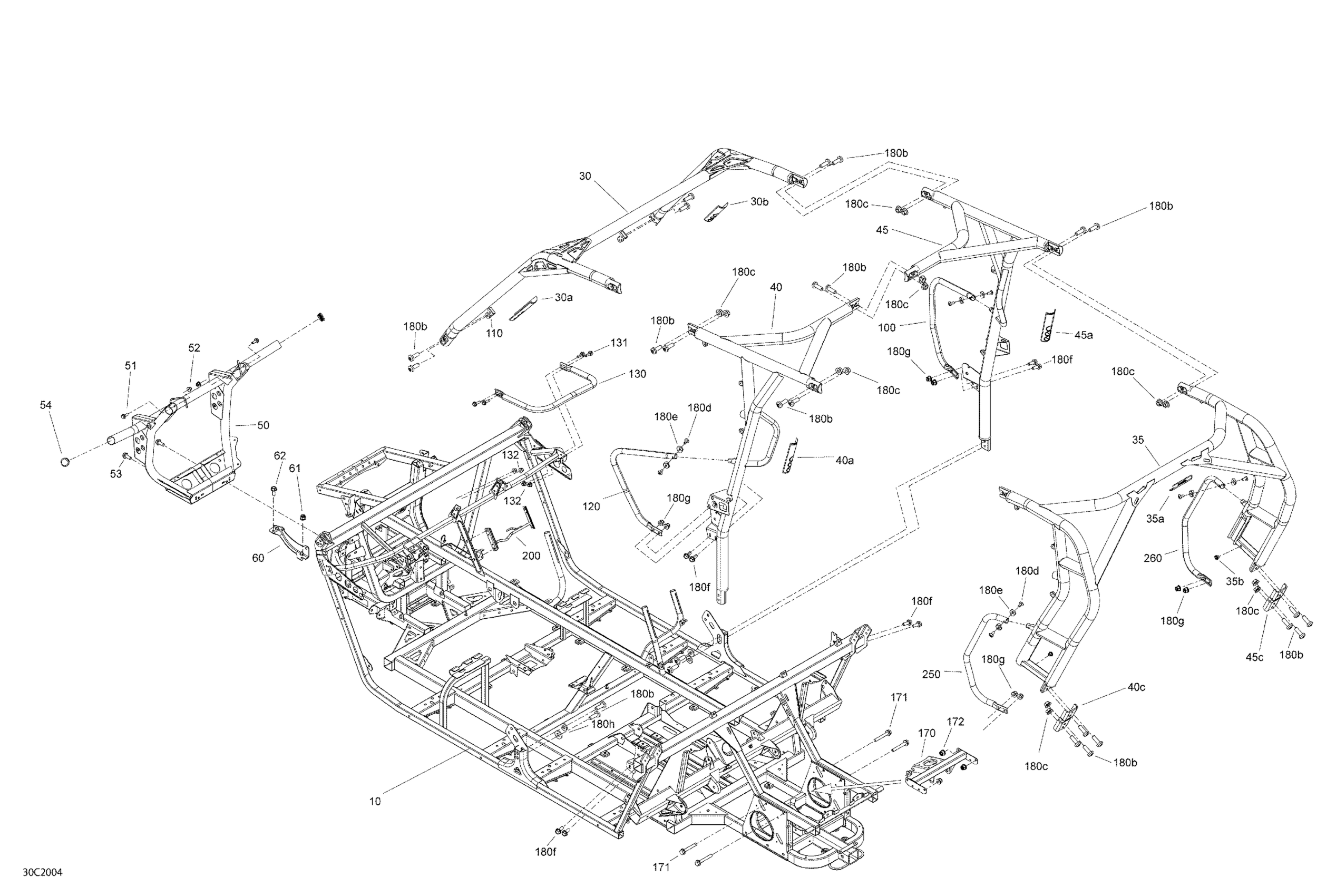

Can-Am Commander MAX 800R EFI - 2020 Frame Diagram

#

Description
Price

10

FRAME KIT - Call your local BRP dealership

715003935

Unavailable

30

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

30a

Warning Label

704908180

Unavailable

30b

Warning Label

704908181

Unavailable

35

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

35a

Warning Label

704903492

Unavailable

35b

Insert Half Hex Body M6 x 1.0

250100199

$2.54

40

Black Central Cage Kit | Includes 40 to 40c

703501095

$779.99

40a

Warning Label

704903679

Unavailable

40b

Hex. Flange Nut M8

233181414

$0.91

40c

Rear Hand Mounting

705203514

$18.43

45

Black Central Cage Kit | Includes 40 to 40c

703501095

$779.99

45a

Warning Label

704903680

Unavailable

45b

Hex. Flange Nut M8

233181414

$0.91

45c

Rear Hand Mounting

705203514

$18.43

50

Black Front Bumper

705202995

$394.24

51

Hex. Flange Screw M6 X 16

207661644

$0.61

52

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

53

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

54

Cap

705202455

$4.62

60

Front Differential Support

705201721

$18.43

61

Hex. Flange Elastic Nut M8

233281414

$1.14

62

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

100

Black RH Front Side Protector Tube

705203642

$46.12

110

Binding Block

705203415

$16.89

120

Black LH Front Side Protector Tube

705203643

$46.12

130

Black Handle

705203332

$129.20

131

Hex. Flange Screw M6 X 20

207662046

$1.74

132

Elastic Flange Nut M6 X 1.0

233261416

$1.74

170

Differential Holder

705203538

$35.35

171

Hex. Flange Screw M8 X 55

207685544

$4.41

172

Hex. Flange Elastic Nut M8

233281414

$1.14

180b

Screw Pan M10 X 30

250000848

$1.56

180c

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$1.74

180d

Torx Truss M6X14

250000789

$4.41

180e

Offset Washer

705202223

$4.98

180f

Hex. Flange Screw M8 X 20

207682044

$0.92

180g

Hex. Flange Elastic Nut M8

233281414

$1.14

180h

Washer

250200154

$3.58

200

Reinforcement Panel

705203717

$147.66

250

Black LH Rear Side Protector Tube

705203649

$46.12

260

Black RH Rear Side Protector Tube

705203652

$46.12
