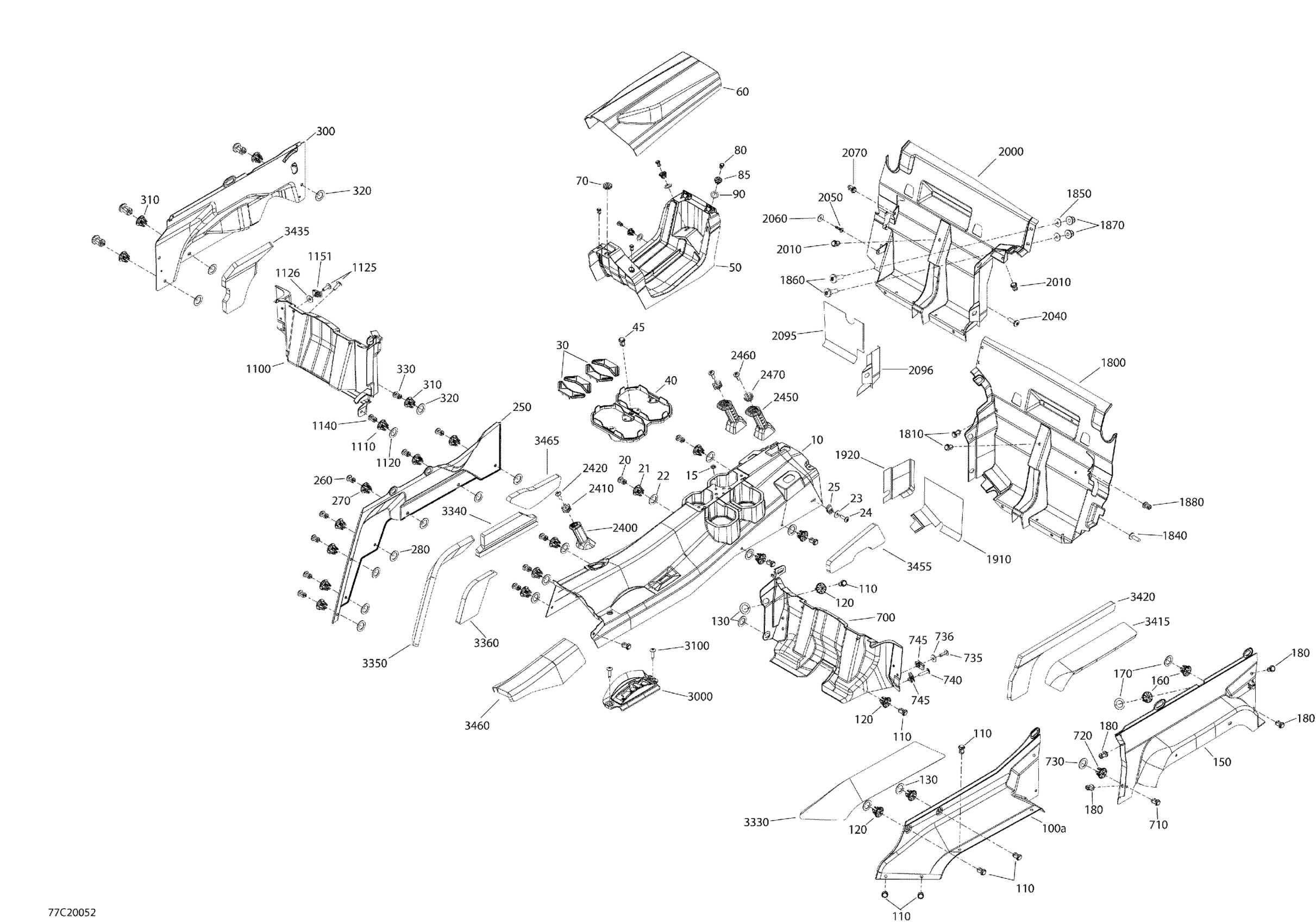

Can-Am Commander MAX 800R EFI - 2020 Cab Interior - Upper part Diagram

#

Description
Price

10

Front Center Console Assembly | Except Package LTD

715006470

$147.66

15

Push Nut

732610072

$1.72

20

Tuflok Plastic Rivet

293150230

$1.21

21

Insert

707900133

$2.75

22

Washer

503189273

$3.20

23

Stainless Steel Flat Washer

234062670

$1.74

24

Torx Screw M6 X 20

250000722

$1.34

25

Panel Nut M6 X 1.0

250100198

$1.73

30

Cup Retainer

707900036

$6.45

40

Cup Holder

707900100

$16.89

45

Tuflok Plastic Rivet

293150230

$1.21

50

Rear Central Console

707900075

$46.12

60

Rear Console Cover Kit

707900229

Unavailable

70

Grommet

517303756

$3.15

80

Tuflok Plastic Rivet

293150230

$1.21

85

Insert

707900133

$2.75

90

Washer

503189273

$3.20

100a

LH Side Console

707900001

$41.51

110

Tuflok Plastic Rivet

293150230

$1.21

120

Insert

707900133

$2.75

130

Washer

503189273

$3.20

150

Rear Left Dash

707900633

$78.43

160

Insert

707900133

$2.75

170

Washer

503189273

$3.20

180

Tuflok Plastic Rivet

293150230

$1.21

250

RH Side Console

707900002

$36.89

260

Tuflok Plastic Rivet

293150230

$1.21

270

Insert

707900133

$2.75

280

Washer

503189273

$3.20

300

RH Rear Console Panel

707900080

$59.20

310

Insert

707900133

$2.75

320

Washer

503189273

$3.20

330

Tuflok Plastic Rivet

293150230

$1.21

700

LH Rear Upper Floor Cover

707900082

$50.74

710

Tuflok Plastic Rivet

293150230

$1.21

720

Insert

707900133

$2.75

730

Washer

503189273

$3.20

735

Torx Screw M6 X 20

250000722

$1.34

736

Stainless Steel Flat Washer

234062670

$1.74

740

Torx Screw M6 X 25

250000758

$1.74

745

Panel Nut M6 X 1.0

250100198

$1.73

1100

Seat Cover

707900083

$46.12

1110

Insert

707900133

$2.75

1120

Washer

503189273

$3.20

1125

Torx Screw M6 X 20

250000722

$1.34

1126

Stainless Steel Flat Washer

234062670

$1.74

1140

Tuflok Plastic Rivet

293150230

$1.21

1151

Panel Nut M6 X 1.0

250100198

$1.73

1800

DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership

707900220

Unavailable

1810

Tuflok Plastic Rivet

293150230

$1.21

1840

Torx Screw K50 X 16

250000720

$1.39

1850

Flat Washer

250200040

$1.82

1860

Torx Screw M6 X 20

250000712

$1.74

1870

Hex. Flange Elastic Nut M6

233261494

$1.26

1880

Tuflok Plastic Rivet

293150230

$1.21

1910

Heat Shield

707900182

$8.98

1920

Heat Shield

707900183

$5.52

2000

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900219

Unavailable

2010

Tuflok Plastic Rivet

293150230

$1.21

2040

Torx Screw K50 X 16

250000720

$1.39

2050

Torx Screw Truss Head K50X20 T20

250000760

$1.74

2060

Stainless Steel Flat Washer

234062670

$1.74

2070

Tuflok Plastic Rivet

293150230

$1.21

2095

Heat Shield

707900167

$8.45

2096

Heat Shield

707900184

$5.52

2400

Passenger Handle

707900011

$12.91

2410

Torx Screw M6 X 20

250000722

$1.34

2420

Connector Tube

707900048

$6.45

2450

Handle

707900103

$14.75

2460

Torx Screw M6 X 20

250000722

$1.34

2470

Connector Tube

707900048

$6.45

3000

Shift Lever Indicator

707900088

$14.75

3100

Torx Screw M6 X 25 | XT Models

250000728

$3.61

3330

LH Lower Lateral Console Foam

707900621

$20.74

3340

RH Lateral Console Foam

707900622

$15.35

3350

RH Lateral Console Foam

707900623

$15.35

3360

RH Lateral Console Foam

707900624

$15.35

3415

LH Rear Lateral Foam | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900625

$20.74

3420

LH Rear Lateral Foam

707900626

$15.35

3435

RH Rear Lateral Foam

707900627

$14.37

3455

Front Central Foam

707900628

$10.14

3460

Front Central Foam

707900629

$15.22

3465

Front Central Foam

707900630

$10.14

3600

Torx Screw M5 X 14

250000742

$1.20

3610

Flat Washer

250200040

$1.82

3615

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

3620

Hex. Flange Screw M8 X 20

207682044

$0.92

3625

Hex. Flange Elastic Nut M8

233281414

$1.14
