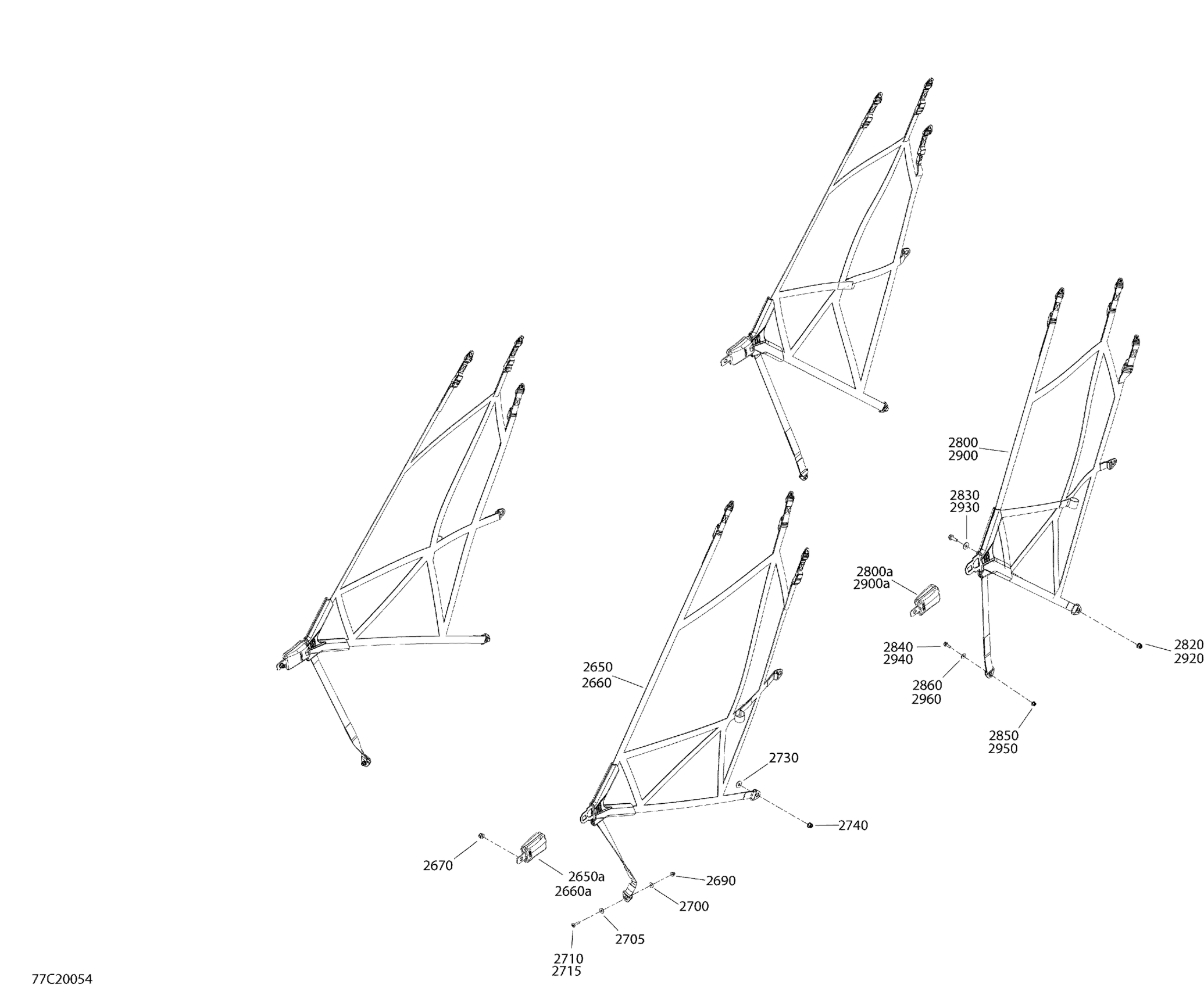

Can-Am Commander MAX 800R EFI - 2020 Cab Interior - Safety net Diagram

Description

Price

2650

Front LH Safety Net

707900237

$119.99

2650a

Buckle

707900035

$53.99

2660

Front RH Safety Net

707900238

$119.99

2660a

Buckle

707900035

$53.99

2670

Hex. Flange Elastic Nut M8

233281414

$1.47

2690

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2700

Flat Washer 6 mm

234062410

$0.77

2705

Stainless Steel Flat Washer

234062670

$2.11

2710

Hex. Flange Screw M6 X 20

207662044

$2.00

2715

Torx Screw M6 X 25

250000758

$2.11

2730

Flat Washer 8 mm

234082410

$1.47

2740

Hex. Flange Elastic Nut M8

233281414

$1.47

2800

Rear LH Safety Net | Upper Link 707900049

707900239

$224.99

2800a

Buckle

707900035

$53.99

2820

Hex. Flange Elastic Nut M8

233281414

$1.47

2830

Flat Washer 8 mm

234082410

$1.47

2840

Hex. Flange Screw M6 X 20

207662054

$1.01

2850

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2860

Stainless Steel Flat Washer

234062670

$2.11

2900

Rear RH Safety Net | Upper Link 707900049

707900240

$224.99

2900a

Buckle

707900035

$53.99

2920

Hex. Flange Elastic Nut M8

233281414

$1.47

2930

Flat Washer 8 mm

234082410

$1.47

2940

Hex. Flange Screw M6 X 20

207662054

$1.01

2950

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2960

Stainless Steel Flat Washer

234062670

$2.11

3600

Torx Screw M5 X 14

250000742

$1.47

3610

Flat Washer

250200040

$1.90

3615

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

3620

Hex. Flange Screw M8 X 20

207682044

$1.15

3625

Hex. Flange Elastic Nut M8

233281414

$1.47
