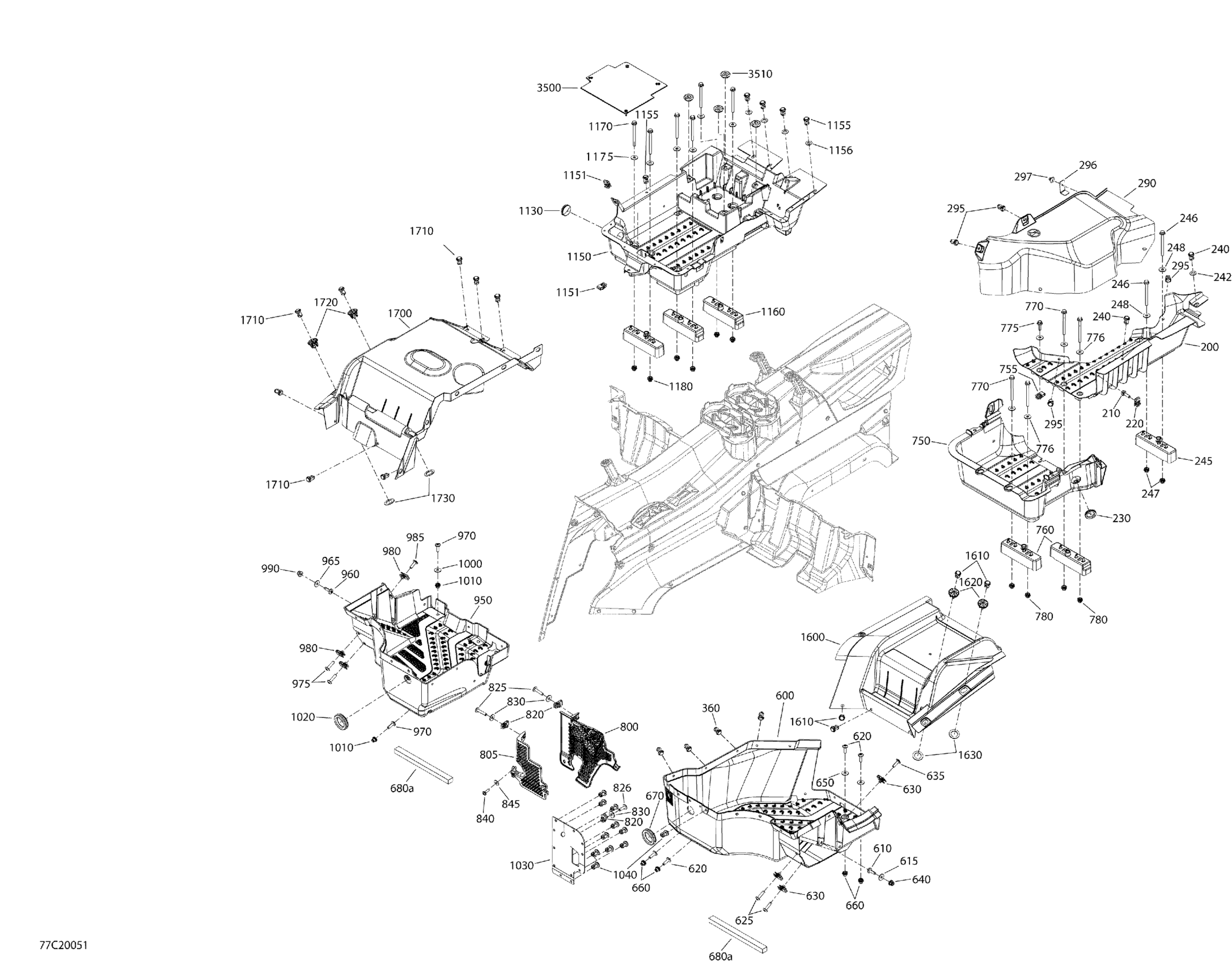

Can-Am Commander MAX 800R EFI - 2020 Cab Interior - Lower part Diagram

#

Description
Price

200

Under cover

707900387

$152.28

210

Hex. Flange Screw M6 X 20

207662054

$0.83

220

Panel Nut M6 X 1.0

250100198

$1.73

230

Rubber Cover

293250242

$5.38

240

Tuflok Plastic Rivet

293150230

$1.21

242

Washer

506151252

$3.11

245

Support Plate

707900099

$15.35

246

Hex. Flange Screw M6 X 70

207667056

$3.61

247

Insert Half Hex Body M6 x 1.0

250100199

$2.54

248

Stainless Steel Flat Washer

234062670

$1.74

290

Rear Floor cap

707900388

$152.28

295

Tuflok Plastic Rivet

293150230

$1.21

296

INSERT SUPPORT - Call your local BRP dealership

705205445

Unavailable

297

Pop Rivet 3/16"

293150103

$0.54

360

Tuflok Plastic Rivet

293150230

$1.21

600

LH Lower Floor

707900022

$253.82

610

Torx Screw M6 X 20

250000712

$1.74

615

Stainless Steel Flat Washer

234062670

$1.74

620

Torx Screw M6 X 20

250000722

$1.34

625

Torx Truss Screw M6 X 25

250000807

$1.74

630

Panel Nut M6 X 1.0

250100198

$1.73

635

Torx Screw M6 X 20

250000722

$1.34

640

Hex. Flange Elastic Nut M6

233261494

$1.26

650

Stainless Steel Flat Washer

234062670

$1.74

660

Insert Half Hex Body M6 x 1.0

250100199

$2.54

670

Rubber Cover

293250242

$5.38

680a

SEAL-TRAY 300MM LONG - Call your local BRP dealership

219704380

Unavailable

750

Rear Floor | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900331

$78.43

755

Panel Nut M6 X 1.0

250100198

$1.73

760

Support Plate

707900099

$15.35

770

Hex. Flange Screw M6 X 70

207667056

$3.61

775

Hex. Flange Screw M6 X 20

207662054

$0.83

776

Stainless Steel Flat Washer

234062670

$1.74

780

Insert Half Hex Body M6 x 1.0

250100199

$2.54

800

Grille

707900178

$9.18

805

Grille

707900180

$9.18

820

Panel Nut M6 X 1.0

250100198

$1.73

825

Torx Truss Screw M6 X 30

250000843

$1.74

826

Torx Screw M6 X 20

250000722

$1.34

830

Stainless Steel Flat Washer

234062670

$1.74

840

Torx Screw K50 X 16

250000720

$1.39

845

Washer M5

250200025

$0.61

950

RH Lower Floor

707900023

$184.58

960

Torx Screw M6 X 20

250000712

$1.74

965

Stainless Steel Flat Washer

234062670

$1.74

970

Torx Screw M6 X 20

250000722

$1.34

975

Torx Truss Screw M6 X 25

250000807

$1.74

980

Panel Nut M6 X 1.0

250100198

$1.73

985

Torx Screw M6 X 20

250000722

$1.34

990

Hex. Flange Elastic Nut M6

233261494

$1.26

1000

Stainless Steel Flat Washer

234062670

$1.74

1010

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1020

Rubber Cover

293250242

$5.38

1030

Deflector

707900192

$16.89

1040

Tuflok Plastic Rivet

293150230

$1.21

1130

Rubber Cover

293250242

$5.38

1150

RH Lower Rear Floor

707900670

$184.58

1151

Panel Nut M6 X 1.0

250100198

$1.73

1155

Tuflok Plastic Rivet

293150230

$1.21

1156

Washer

506151252

$3.11

1160

Support Plate

707900099

$15.35

1170

Hex. Flange Screw M6 X 70

207667056

$3.61

1175

Stainless Steel Flat Washer

234062670

$1.74

1180

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1600

Under Seat Cover

707900130

$78.43

1610

Tuflok Plastic Rivet

293150230

$1.21

1620

Insert

707900133

$2.75

1630

Washer

503189273

$3.20

1700

RH Under Seat Plate

707900006

$106.12

1710

Tuflok Plastic Rivet

293150230

$1.21

1720

Insert

707900133

$2.75

1730

Washer

503189273

$3.20

3500

Battery Cover

707900163

$17.66

3510

Grommet

705003264

$3.43

3600

Torx Screw M5 X 14

250000742

$1.20

3610

Flat Washer

250200040

$1.82

3615

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

3620

Hex. Flange Screw M8 X 20

207682044

$0.92

3625

Hex. Flange Elastic Nut M8

233281414

$1.14
