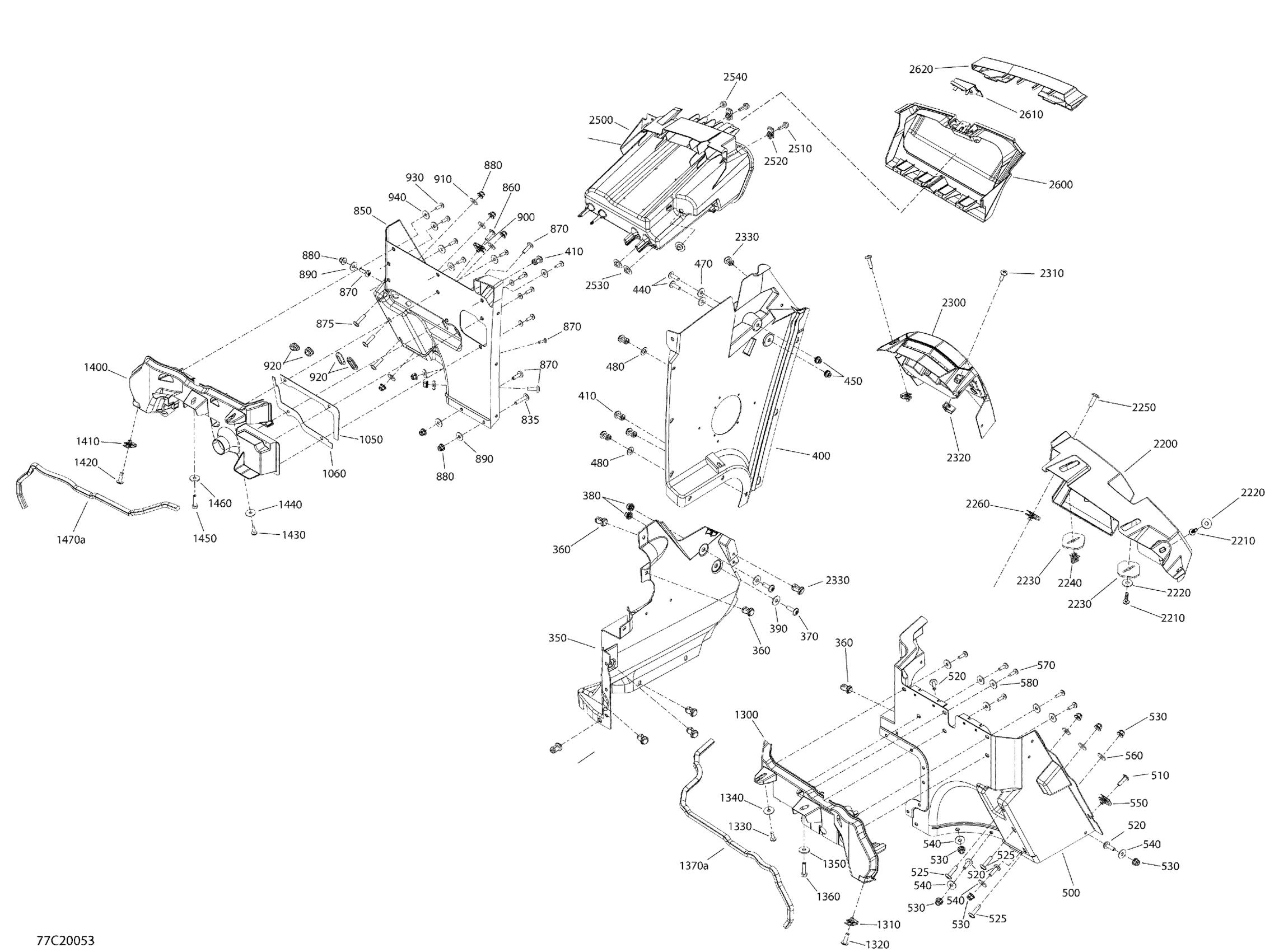

Can-Am Commander MAX 800R EFI - 2020 Cab Interior - Front part Diagram

#

Description
Price

350

Front Side Dash Panel

707900193

$69.20

360

Tuflok Plastic Rivet

293150230

$1.21

370

Torx Screw M6 X 20

250000722

$1.34

380

Insert Half Hex Body M6 x 1.0

250100199

$2.54

390

Stainless Steel Flat Washer

234062670

$1.74

400

RH Fixe Side Console

707900021

$73.82

410

Tuflok Plastic Rivet

293150230

$1.21

440

Torx Screw M6 X 20

250000722

$1.34

450

Insert Half Hex Body M6 x 1.0

250100199

$2.54

470

Stainless Steel Flat Washer

234062670

$1.74

480

Washer

506151252

$3.11

500

LH Front Upper Floor

707900175

$78.43

510

Torx Screw M6 X 20

250000722

$1.34

520

Torx Screw M6 X 20

250000712

$1.74

525

Torx Screw M6 X 25

250000758

$1.74

530

Hex. Flange Elastic Nut M6

233261494

$1.26

540

Stainless Steel Flat Washer

234062670

$1.74

550

Panel Nut M6 X 1.0

250100198

$1.73

560

Stainless Steel Flat Washer

234062670

$1.74

570

Torx Screw K50 X 16

250000720

$1.39

580

Flat Washer 6 mm

234062410

$0.64

835

Torx Truss Screw M6 X 30

250000843

$1.74

850

RH Front Floor

707900004

$78.43

860

Torx Screw M6 X 20

250000722

$1.34

870

Torx Screw M6 X 20

250000712

$1.74

875

Torx Screw M6 X 25

250000758

$1.74

880

Hex. Flange Elastic Nut M6

233261494

$1.26

890

Stainless Steel Flat Washer

234062670

$1.74

900

Panel Nut M6 X 1.0

250100198

$1.73

910

Stainless Steel Flat Washer

234062670

$1.74

920

Oblong Grommet

705003668

$4.54

930

Torx Screw K50 X 16

250000720

$1.39

940

Flat Washer 6 mm

234062410

$0.64

1050

Upper Seal

293250252

$2.75

1060

Bottom Seal

293250253

$2.99

1300

SUPPORT_PANEL LH - Call your local BRP dealership

707900029

$11.98

1310

Panel Nut M6 X 1.0

250100198

$1.73

1320

Torx Screw M6 X 20

250000722

$1.34

1330

Torx Screw K50 X 16

250000720

$1.39

1340

Flat Washer

224060201

$1.15

1350

Hex. Screw M6 X 25

207162544

$1.05

1360

Flat Washer

224061201

$1.11

1370a

Was 293200017 Neoprene Seal

219704365

$118.27

1400

SUPPORT_PANEL RH - Call your local BRP dealership

707900030

Unavailable

1410

Panel Nut M6 X 1.0

250100198

$1.73

1420

Torx Screw M6 X 20

250000722

$1.34

1430

Torx Screw K50 X 16

250000720

$1.39

1440

Flat Washer

224060201

$1.15

1450

Hex. Screw M6 X 25

207162544

$1.05

1460

Flat Washer

224061201

$1.11

1470a

Was 293200017 Neoprene Seal

219704365

$118.27

2200

Dashboard Ass'y

715001250

$78.43

2210

Torx Screw Truss Head K50X20 T20

250000760

$1.74

2220

Stainless Steel Flat Washer

234062670

$1.74

2230

Support Plate

705003841

$0.91

2240

Edge Clip

517302785

$0.70

2250

Torx Screw M6 X 20

250000722

$1.34

2260

Panel Nut M6 X 1.0

250100198

$1.73

2300

Lower Central Dashboard Ass'y | Europe

707900019

$41.51

2310

Torx Screw M5 X 20

250000724

$1.39

2320

Panel Nut M5 X 0.8

250000958

$3.48

2330

Tuflok Plastic Rivet

293150230

$1.21

2500

Storage Bin

707900009

$110.74

2510

Hex. Flange Screw M6 X 20

207662034

$1.74

2520

Panel Nut M6 X 1.0

250100198

$1.73

2530

CAP - Call your local BRP dealership

414859400

Unavailable

2540

Rubber Bumper

293830005

$5.33

2600

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

2610

Latch

707900031

$8.29

2620

Trim Glove Box

707900062

$17.66

3600

Torx Screw M5 X 14

250000742

$1.20

3610

Flat Washer

250200040

$1.82

3615

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

3620

Hex. Flange Screw M8 X 20

207682044

$0.92

3625

Hex. Flange Elastic Nut M8

233281414

$1.14
