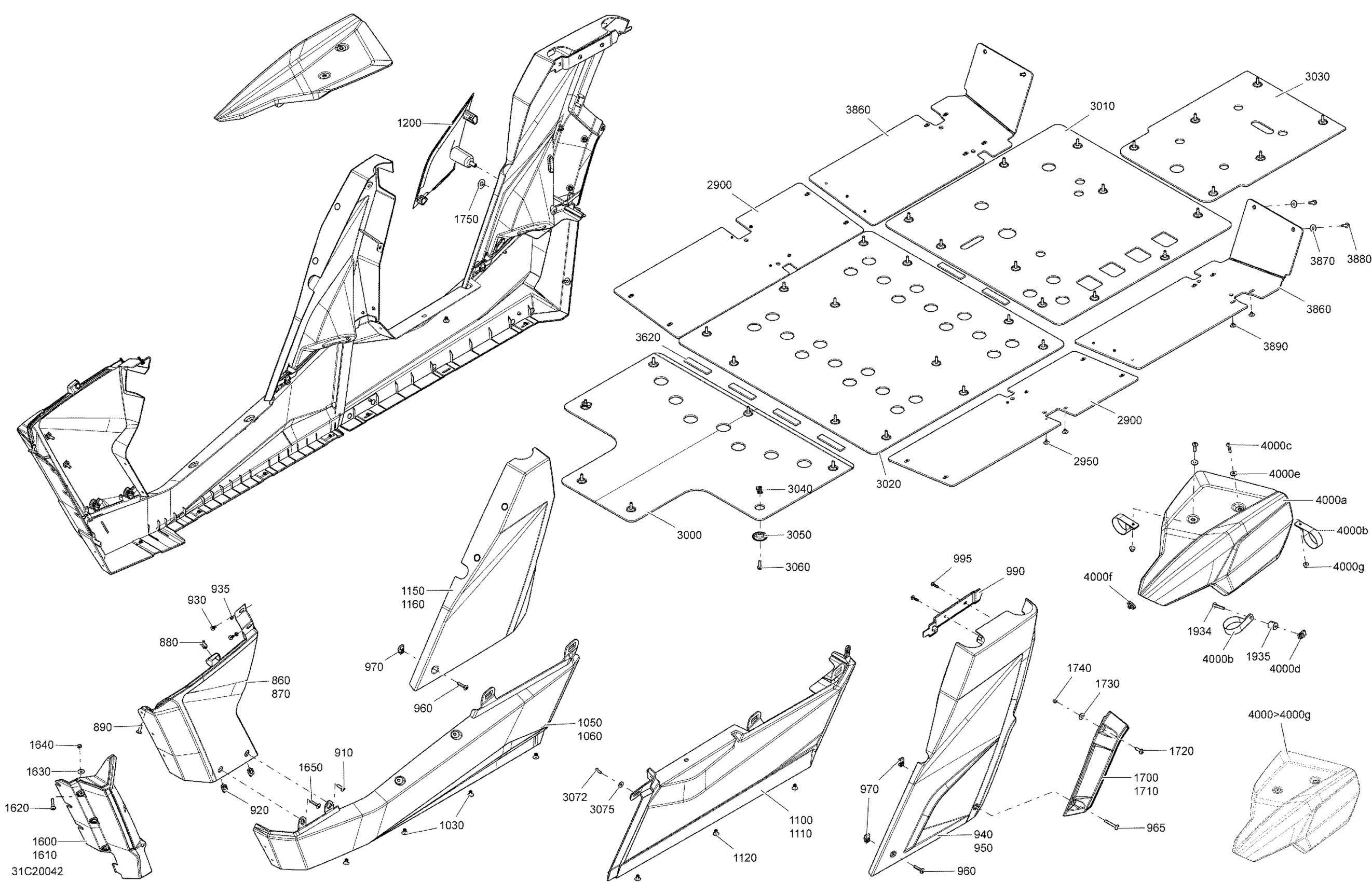

Can-Am Commander MAX 800R EFI - 2020 Body - Mid Section - Squadron Green Diagram

#

Description
Price

860

Squadron Green, LH Front Lateral Panel | Squadron Green Models

705011538

$40.99

870

Squadron Green, RH Front Lateral Panel | Squadron Green Models

705011539

$40.99

880

Tuflok Plastic Rivet

293150230

$1.47

890

Torx Screw M6 X 20

250000722

$1.68

900

Panel Nut M6 X 1.0

250100198

$2.11

910

Torx Screw M6 X 20

250000722

$1.68

920

Panel Nut M6 X 1.0

250100198

$2.11

930

Torx Screw Truss Head K50X20 T20

250000760

$2.11

935

Flat Washer M5

234051410

$0.53

940

Squadron Green, LH Rear Lateral Panel | Squadron Green Models

705011545

$104.99

950

Squadron Green, RH Panel | Squadron Green Models

705011567

$98.99

960

Torx Truss Screw M6 X 30

250000843

$2.11

965

Torx Screw M6 X 45

250000748

$1.90

970

Panel Nut M6 X 1.0

250100198

$2.11

990

Support Skid Plate

705007916

$14.74

995

Torx Screw Truss Head K50X20 T20

250000760

$2.11

1030

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1050

Black, LH Lower Panel | Model-DPS

705005423

$63.99

1060

Black, RH Lower Panel | Model-DPS

705005424

$62.99

1100

Black, LH Rear Lower Panel

705005425

$109.99

1110

Black, RH Rear Lower Panel

705005426

$114.99

1120

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1150

Squadron Green, LH Central Panel | Squadron Green Models

705011569

$71.99

1160

Squadron Green, RH Central Panel | Squadron Green Models

705011570

$71.99

1200

Squadron Green, Panel Cover | Squadron Green Models

705011573

$93.99

1600

Black, LH Lower Mudguard | LTD

705008668

$34.99

1610

Black, RH Lower Mudguard | LTD

705008669

$34.99

1620

Stainless, Torx Screw M6 X 30

250000842

$2.11

1630

Stainless Steel Flat Washer

234062670

$2.11

1640

Elastic Stop Nut M6

232561434

$1.99

1650

Stainless, Torx Screw M6 X 30

250000842

$2.11

1700

Black, LH Rear Lower Mudguard | LTD

705008670

$34.99

1710

RH Rear Lower Black Mudguard | LTD

705008672

$34.99

1720

Torx Screw M6 X 20

250000712

$2.11

1730

Stainless Steel Flat Washer

234062670

$2.11

1740

Elastic Stop Nut M6

232561434

$1.99

1750

Hardened Washer

706200281

$2.85

1934

Torx Truss Screw M6 X 50

250000749

$3.17

1935

Roof Spacer Bushing

705007138

$1.89

2900

Side Protector Plate

705008421

$51.99

2950

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3000

Middle Protector Plate

705007055

$80.49

3010

Rear Protector Plate

705007056

$121.49

3020

Skid Plate

705009447

$121.49

3030

Rear Protector Plate

705007227

$31.99

3040

Panel Nut M6 X 1.0

250100198

$2.11

3050

Cup | Package Hunter

705007171

$7.89

3060

Hexagonal Head Screw

210262050

$2.11

3072

Torx Screw K50 X 16

250000720

$1.69

3075

Washer M5

250200025

$0.74

3620

Pad

291001932

$10.99

3860

RH Lateral Skid Plate

705007038

$64.49

3870

Flat Washer

250200097

$2.11

3880

Hexagonal Head Screw

210262050

$2.11

3890

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4000

Black, Cage Cover Kit | Model-Brush Aluminum

705008450

$199.99

4000a

Black, LH Top Center Cage Cover | Model-Camo

705008452

$38.99

4000a

Black, RH Top Center Cage Cover | Model-Camo

705008453

$38.99

4000b

"P" Bracket, 2" Dia.

705005626

$27.99

4000c

Hex. Flange Screw M6 X 20

207662054

$1.01

4000d

Panel Nut M6 X 1.0

250100198

$2.11

4000e

Stainless Steel Flat Washer

234062670

$2.11

4000f

Tie Wrap 368 mm

293750008

$1.04

4000g

Hex. Flange Elastic Nut M6

233261494

$1.58
