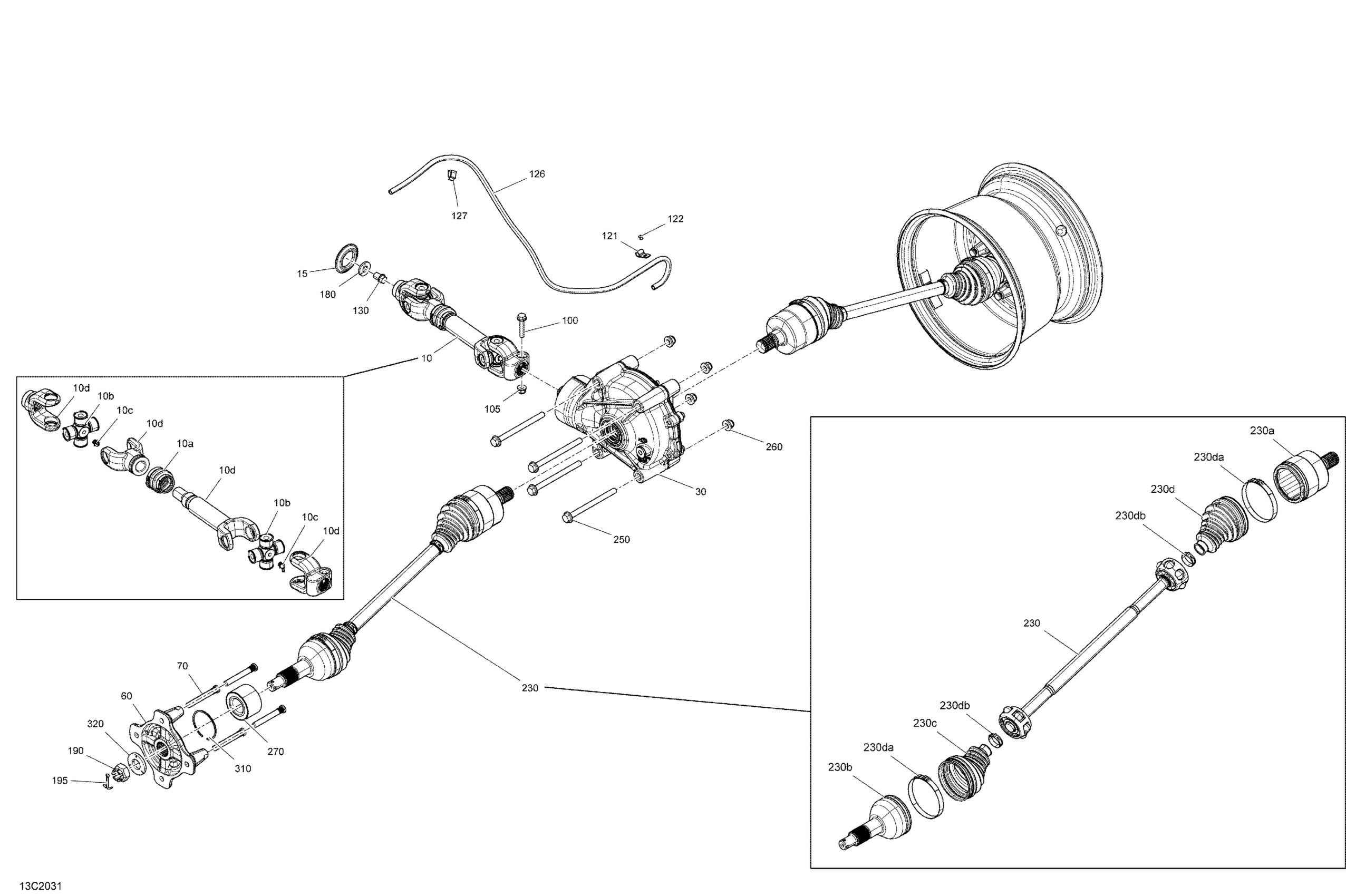

Can-Am Commander MAX 800R EFI - 2020 Rear Drive - Common Parts Diagram

#

Description
Price

10

Drive Axle Ass'y | Includes 10 to 10d

705502935

$259.49

10a

Rubber Boot

715900118

$14.30

10b

Universal Joint Ass'y | T3

703500846

$59.49

10c

Grease Fitting | T3

715900295

$5.24

10d

Joint | T3

715900436

$24.99

15

Protector

705501123

$7.55

30

Final Drive Unit | Includes 30 to 30s

705502827

$1,409.99

60

Wheel Hub | RH Except MAX Model - Except Package XTP

705502470

$116.99

70

Wheel Stud

705401964

$11.06

100

Hex. Flange Screw M8 X 42

250001050

$1.16

105

Hex. Elastic Flange Nut M8

233281416

$1.48

121

Open Clamp

414108400

$3.17

122

Pop Rivet 3/16"

390402200

$0.35

126

Was 293830195 Polyurethane Hose

219704390

$20.49

127

Clip

414227300

$1.67

130

Hex Flange Screw M12 X 16

250001039

$2.11

180

Conical Spring Washer M12

250200005

$3.27

190

Castle Nut M20

250100193

$8.05

195

Cotter Pin

250400084

$2.29

230

Rear - Premium CV Axle

705502411

$243.99

230a

Plunging Joint

715900433

$259.49

230b

JOINT_CV EXT - Call your local BRP dealership

715900429

$244.99

230c

Circlip

705501781

$6.50

230d

Boot Kit

705501864

$42.49

230da

Oetiker Clamp, 82.1 mm

715900241

$10.33

230db

Oetiker Clamp, 27.3 mm

715900242

$10.33

250

Hex. Flange Screw M10 X 125

230602546

$7.41

260

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M20

250200170

$14.74
