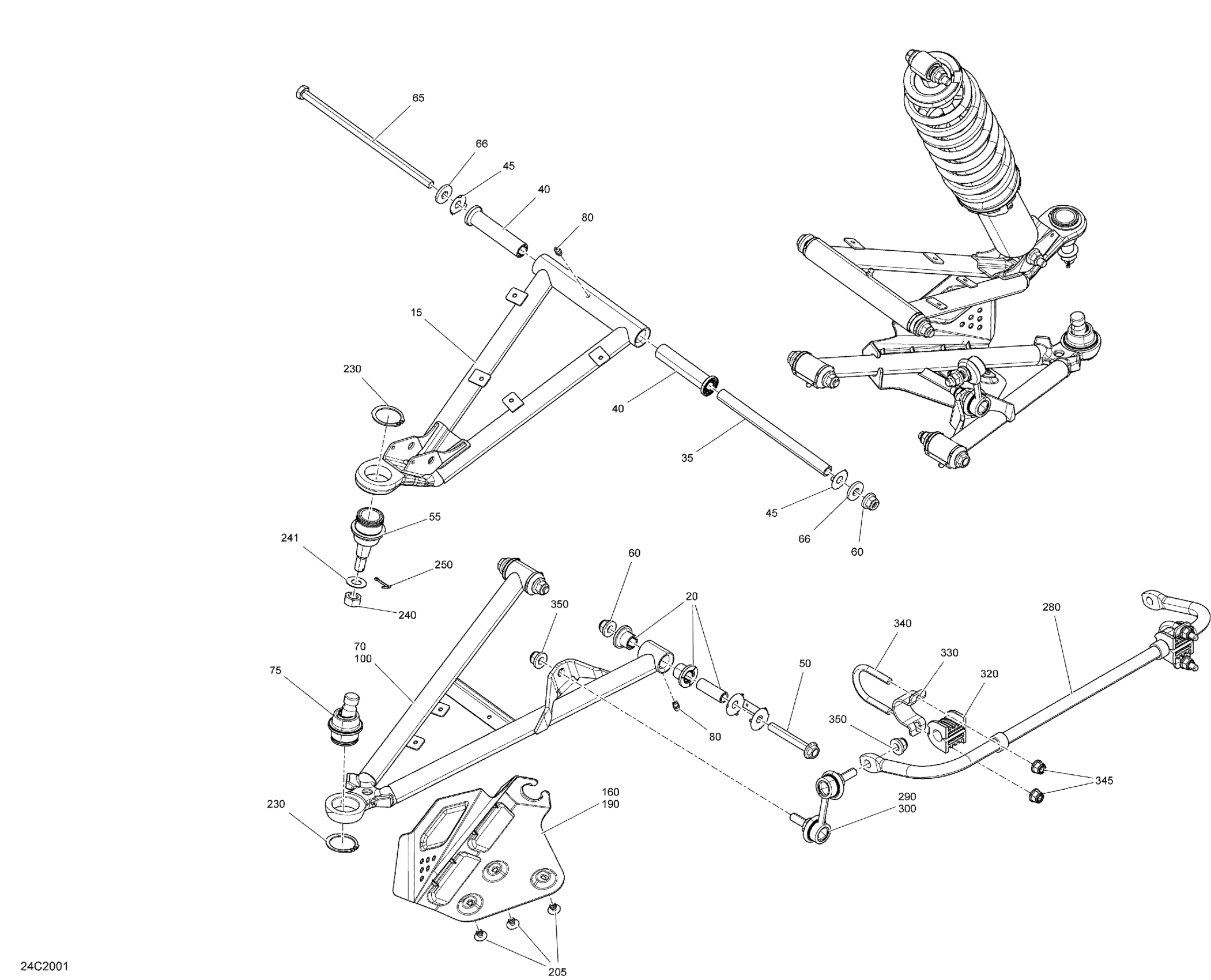

Can-Am Commander MAX 800R EFI - 2020 Front Suspension Diagram

#

Description
Price

15

Suspension Upper Arm

706200796

$184.58

20

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

35

Bushing

706202445

$16.89

40

Cushion

706201062

$4.60

45

Wear Plate

706201063

$0.89

50

Hex. Flange Screw M10 X 70

207607046

$2.91

55

Ball Joint

706202044

$35.14

60

Hex. Flange Elastic Nut M10

233201436

$1.74

65

Hex. Cap Screw M10 X 225

250001032

$9.49

66

Washer

503190439

$5.82

70

RH Lower Suspension Arm

706200744

$184.58

75

Ball Joint

706202045

$35.35

80

Grease Fitting

408200700

$2.80

100

LH Lower Suspension Arm

706200742

$184.58

160

RH Protector

706201670

$17.66

190

LH Protector

706201669

$17.66

205

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

230

Circlip

293370035

$2.55

240

Nut M12

250100099

$1.64

241

Hardened Washer

706200281

$2.34

250

Cotter Pin

211400017

$0.25

280

Sway Bar Ass'y | X

706202560

$96.89

290

LH Sway Bar Link | X

706202536

$64.58

300

RH Sway Bar Link | X

706202537

$69.20

320

Stabilizer Bushing | X

706201086

$9.22

330

Clamp | X

706201087

$11.98

340

U-clamp | X

506060600

$15.35

345

Hex. Flange Elastic Nut M8

233281414

$1.14

350

Hex. Flange Elastic Nut M10

233201436

$1.74
