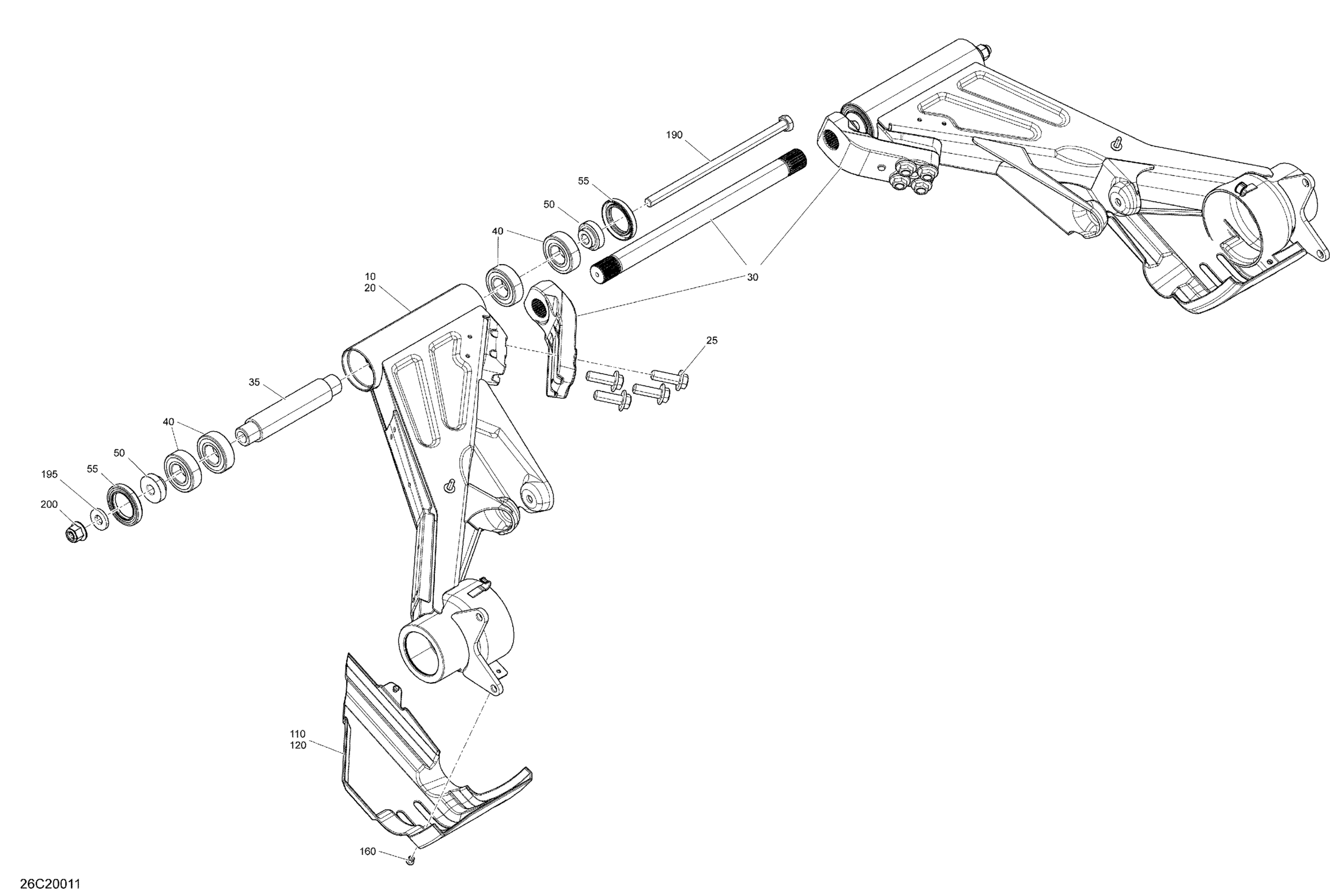

Can-Am Commander MAX 800R EFI - 2020 Rear Suspension Diagram

#

Description
Price

10

RH Swing Arm

706001513

$190.99

20

LH Swing Arm

706001514

$190.99

25

Hex. Flange Screw M12 X 35, Scotch Grip

207523544

$3.91

30

Sway Bar

706001718

$190.99

35

Bushing

706001529

$34.99

40

Ball Bearing

293350115

$12.11

50

Spacer

706001350

$10.49

55

Seal

293200094

$10.33

110

LH Joint Protector

706000630

$8.85

120

RH Joint Protector

706000814

$8.85

160

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

190

Hex. Cap Screw M12 X 241

250001031

$3.81

195

Flat Washer M12

250200120

$2.61

200

Elastic Flange Nut M12

233221416

$2.85
