Description

Price

1

CVT Air Guide

420612304

$194.99

2

O-Ring

420430408

$5.29

3

O-Ring

420631089

$5.29

4

Hex.Screw M6 X 20

420441311

$5.18

5

Flat Washer

224061121

$0.53

6

Elastic Stop Nut M6

232561434

$1.99

7

Gasket

420430126

$41.49

8

Governor Cup Ass'Y | Includes 8 to 11

420280524

$389.99

9

Slider Shoe Set

420281296

$65.49

10

Roller Axle

417223257

$6.99

11

Roller

420229999

$24.99

12

Outher Haft Ass'y | Includes 12 to 14

420280462

$435.99

13

Slide Plate

420651763

$43.49

14

Elastic Stop Nut M5

232551414

$0.87

15a

Centrifugal Lever Kit (Set Of 6) | Includes 15a to 18

420248608

$186.49

15b

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Compression Spring, Drive Pulley

420238615

$36.99

20

Seat Spring

420627578

$35.99

21

Drive Pulley Clutch

420657370

$144.99

22

Ball Bearing

420632377

$49.99

23

Retaining Ring

420245951

$5.31

24

Inner Half

420280577

$338.99

25

Spring Sleeve

420229577

$18.49

26

Spring

420239134

$3.06

27

Clutch Bolt Repair Kit

703500842

$68.99

28

Washer 40 MM

420427061

$24.99

29

Washer 30 MM

420427054

$26.49

30

Nut

420441811

$14.22

31

Socket Set Screw

420242381

$20.99

32

Cam

420280475

$126.99

33

Driven Pulley Shaft

420220914

$129.99

34

Compression Spring

420238176

$35.99

35

Inner Half Pulley

420280188

$339.99

36

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

37

Ball Bearing

420932421

$28.49

38

Retaining Ring

420245911

$5.31

39

Torque Gear

420660124

$23.49

40

V Belt

422280367

$206.49

41

Thrust Washer

420627594

$13.49

42

Stud Screw M10 X 136

420441900

$25.99

42a

Nut M10

420242097

$2.51

42b

Hexagonal Nut M10

420242403

$1.90

43

Variator Cover Ass'y | Cover with dual inlet

420212286

$296.99

44

Hex Screw M6 X 30

420440568

$8.58

45

Heat Protection Mat

715900358

$49.99

46

Drain Plug Kit

707001179

$9.63

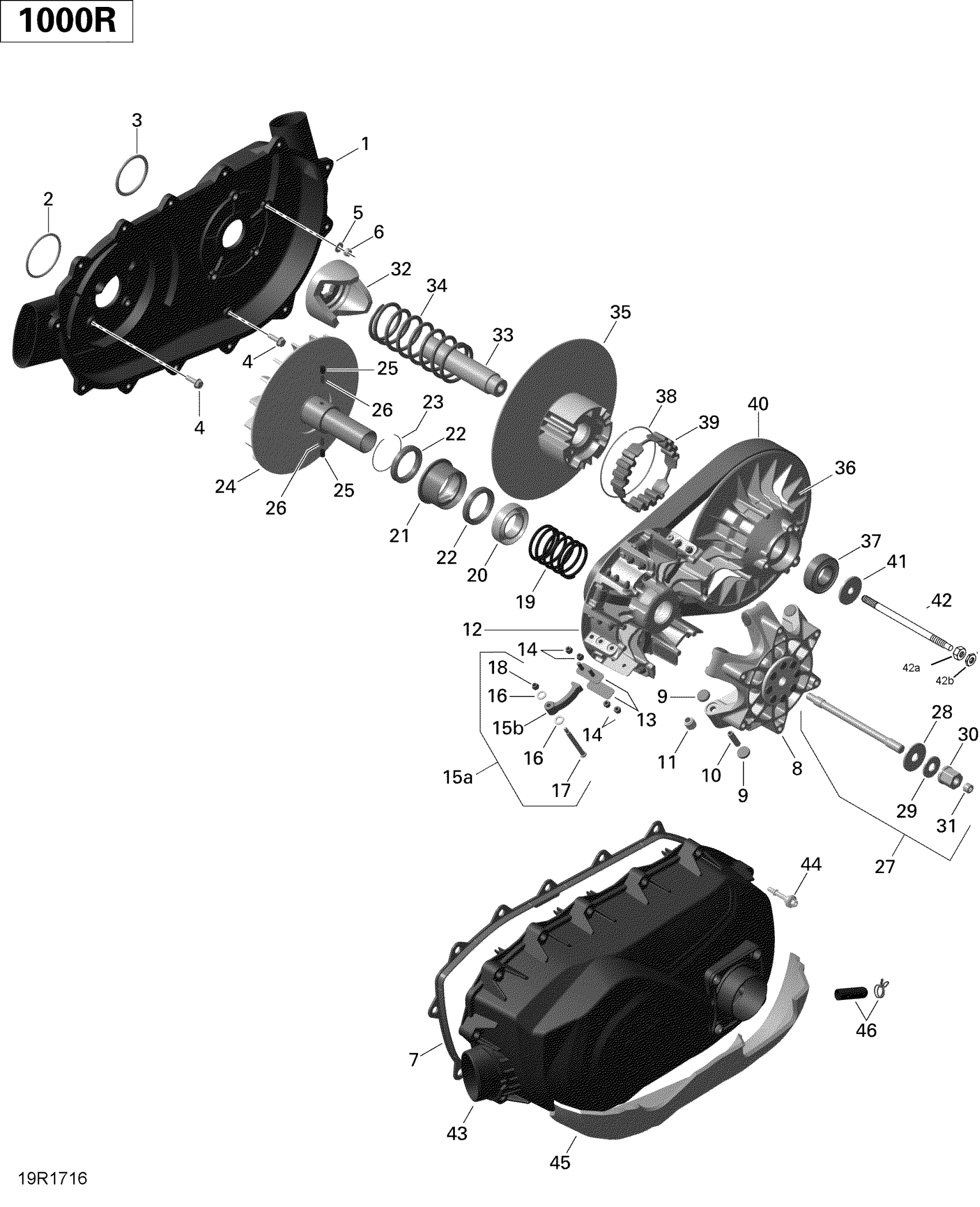

Can-Am Commander 1000R EFI - 2020 Transmission - 1000R Diagram

CVT Air Guide

O-Ring

O-Ring

Hex.Screw M6 X 20

Flat Washer

Elastic Stop Nut M6

Gasket

Governor Cup Ass'Y | Includes 8 to 11

Slider Shoe Set

Roller Axle

Roller

Outher Haft Ass'y | Includes 12 to 14

Slide Plate

Elastic Stop Nut M5

Centrifugal Lever Kit (Set Of 6) | Includes 15a to 18

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Compression Spring, Drive Pulley

Seat Spring

Drive Pulley Clutch

Ball Bearing

Retaining Ring

Inner Half

Spring Sleeve

Spring

Clutch Bolt Repair Kit

Washer 40 MM

Washer 30 MM

Nut

Socket Set Screw

Cam

Driven Pulley Shaft

Compression Spring

Inner Half Pulley

Outer Half Pulley Ass'y | Includes 27 to 32

Ball Bearing

Retaining Ring

Torque Gear

V Belt

Thrust Washer

Stud Screw M10 X 136

Nut M10

Hexagonal Nut M10

Variator Cover Ass'y | Cover with dual inlet

Hex Screw M6 X 30

Heat Protection Mat

Drain Plug Kit
