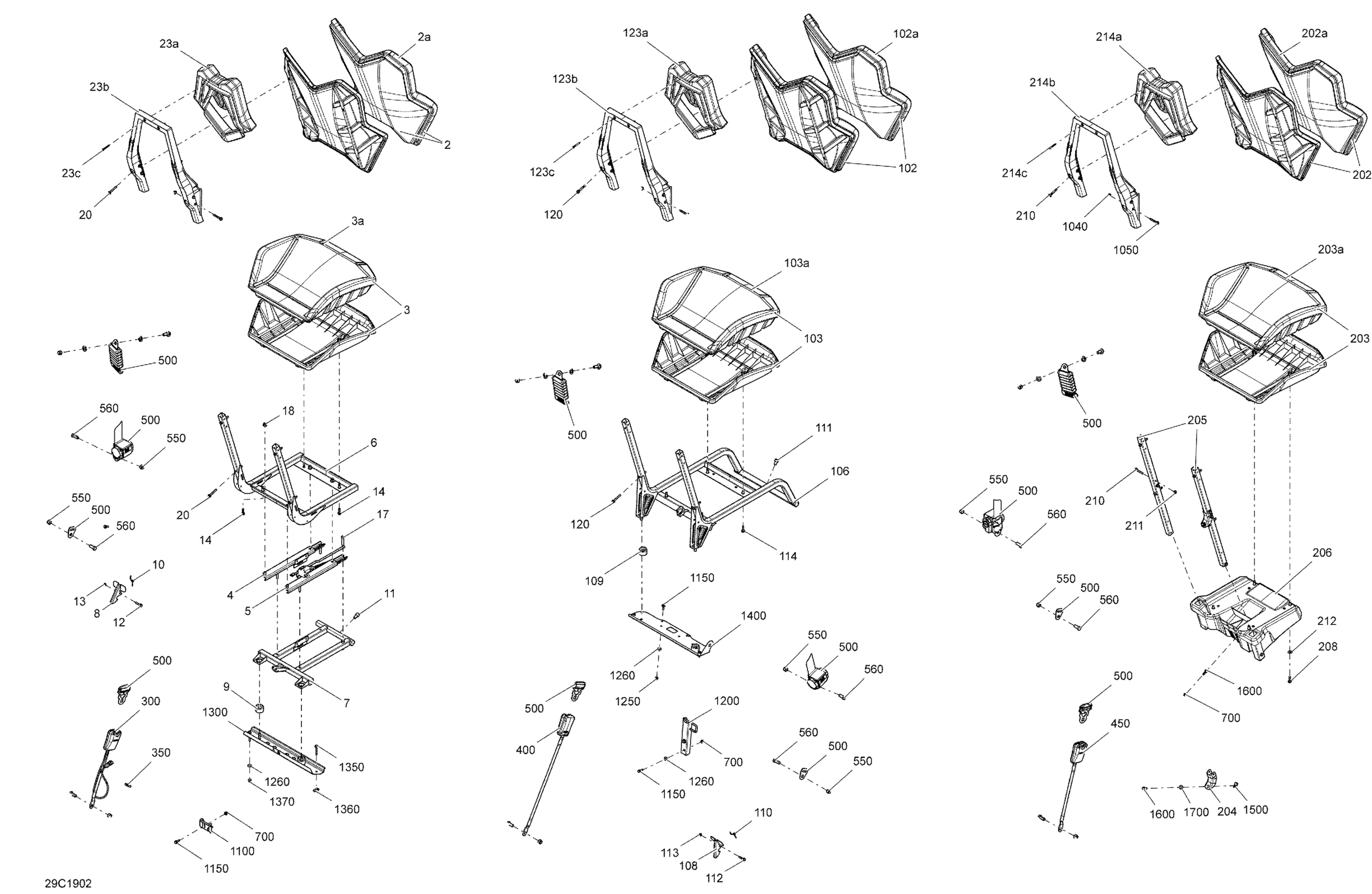

Can-Am Commander MAX 800R EFI - 2019 Seat Diagram

#

Description
Price

2

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

2

Backrest Ass'y | Package LTD

708002616

$415.35

2a

Backrest Cover

708000675

$92.28

2a

Backrest Cover | Package LTD

708002618

$152.28

3

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

3

Cushion Ass'y | Package LTD

708002617

$295.35

3a

Seat Cover

708001103

$110.74

3a

Seat Cover | Package LTD

708002619

$96.89

4

LH Rail

708000848

$50.74

5

RH Rail

708001739

$36.89

6

Operator Seat Frame

708001356

$313.82

7

Seat Member

708001174

$78.43

8

Seat Latch

708001355

$2.75

9

Rubber Bumper

708001671

$2.31

10

Spring

708000921

$1.15

11

Socket Screw M10 X 16

205501644

$3.38

12

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

13

Hex. Elastic Stop Nut M6

232561600

$0.92

14

Hex. Flange Screw M6 X 25

207562544

$1.39

17

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

18

Hex. Flange Elastic Nut M8

233281414

$1.14

20

Hex. Flange Screw M6

250000672

$1.74

23a

Head Rest

708001074

$96.89

23b

Seat Support

708001245

$27.66

23c

Hex. Flange Screw K50 X 40

250000897

Unavailable

102

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

102

Backrest Ass'y | Package LTD

708002616

$415.35

102a

Backrest Cover

708000675

$92.28

102a

Backrest Cover | Package LTD

708002618

$152.28

103

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

103

Cushion Ass'y | Package LTD

708002617

$295.35

103a

Seat Cover

708001103

$110.74

103a

Seat Cover | Package LTD

708002619

$96.89

106

Passenger Seat Frame

708001357

$304.58

108

Seat Latch

708001355

$2.75

109

Rubber Bumper

708001671

$2.31

110

Spring

708000921

$1.15

111

Socket Screw M10 X 16

205501644

$3.38

112

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

113

Hex. Elastic Stop Nut M6

232561600

$0.92

114

Hex. Flange Screw M6 X 25

207562544

$1.39

120

Hex. Flange Screw M6

250000672

$1.74

123a

Head Rest

708001074

$96.89

123b

Seat Support

708001245

$27.66

123c

Hex. Flange Screw K50 X 40

250000897

Unavailable

202

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

202

Backrest Ass'y | Package LTD

708002616

$415.35

202a

Backrest Cover

708000675

$92.28

202a

Backrest Cover | Package LTD

708002618

$152.28

203

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

203

Cushion Ass'y | Package LTD

708002617

$295.35

203a

Seat Cover

708001103

$110.74

203a

Seat Cover | Package LTD

708002619

$96.89

204

Rear Anchor

708001474

$18.43

205

Side Tube

708001476

$32.28

206

Seat Support

708001198

$64.58

208

Hex. Flange Screw M6 X 25

207562544

$1.39

210

Hex. Flange Screw M6

250000672

$1.74

211

Hex. Elastic Flange Nut M6

233161464

$0.83

212

Stainless Steel Flat Washer

234062670

$1.74

214a

Head Rest

708001074

$96.89

214b

Seat Support

708001245

$27.66

214c

Hex. Flange Screw K50 X 40

250000897

Unavailable

300

Driver Buckle Side

708002061

$69.20

400

Passenger Buckle Side

708002064

$64.58

450

Rear Passenger Buckle Side

708002063

$64.58

500

Safety Belt

708002644

$272.28

550

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$5.84

560

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

700

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1100

Anchor

708001212

$18.43

1150

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

1200

Anchor

708001213

$23.05

1250

Hex. Flange Nut M6

233061414

$1.34

1260

Stainless Steel Flat Washer

234062670

$1.74

1300

Seat Support

708001214

$64.58

1350

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.06

1360

Panel Nut M6 X 1.0

250100171

$3.21

1370

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1400

Support

708001804

$46.12

1500

Panel Nut M6 X 1.0

250100171

$3.21

1600

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

1700

Conical Spring Washer M8

234281474

$1.25

1800

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$5.84

1810

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

1820

Safety Belt Screw

708000890

$3.68

1830

Position Washer

708000891

$1.15

1840

Hex. Elastic Flange Nut M6

233161464

$0.83

1850

Hex. Flange Screw M6

250000672

$1.74
