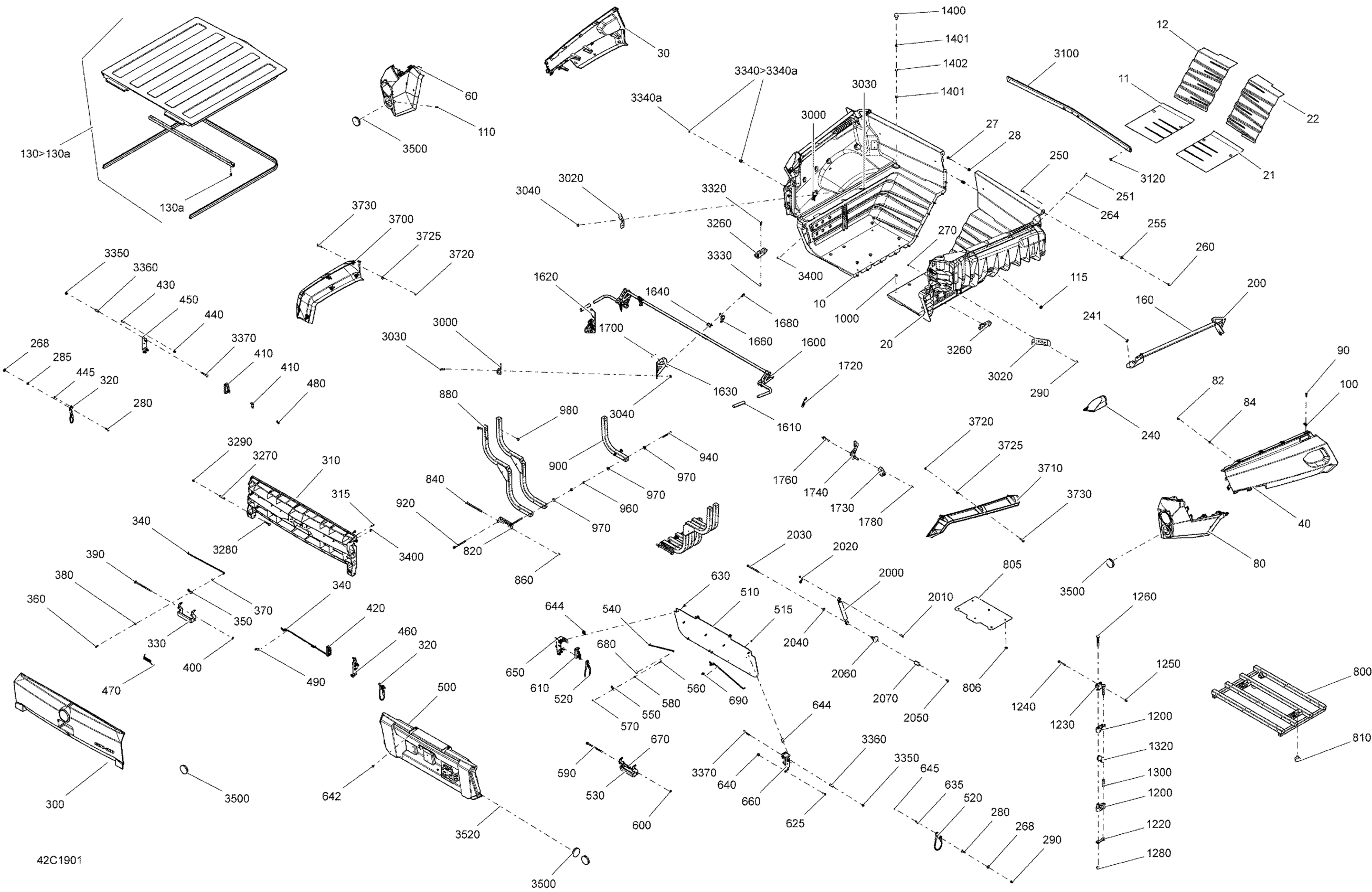

Can-Am Commander MAX 800R EFI - 2019 Rear Cargo Box Diagram

#

Description
Price

10

Left Box Kit

715002361

$229.97

11

Heat Deflector Sheet

708300809

$9.20

12

Heat Deflector Sheet

708300811

$8.45

20

Right Box Kit | Com-Max

715003387

$229.97

21

Heat Deflector Sheet

708300810

$9.20

22

Heat Deflector Sheet

708300812

$9.20

27

Hex. Flange Screw M6 X 20

207662054

$0.83

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

30

Camo, LH Rear Fender | Camo Model

708301687

$379.97

30

Squadron Green, LH Rear Fender | Squadron Green Models

708302337

$128.43

30

Timeless Black, LH Rear Fender

708302380

$285.35

30

Boreal Green, LH Rear Fender | Boreal Green

708302767

$379.97

40

Camo, RH Rear Fender | Camo Model

708301688

$379.97

40

Squadron Green, RH Rear Fender | Squadron Green Models

708302338

$128.43

40

Timeless Black, RH Rear Fender

708302381

$379.97

40

Boreal Green, RH Rear Fender | Boreal Green

708302768

$379.97

60

LH Rear Facia

708301383

$19.97

80

RH Rear Facia

708301384

$19.97

82

Flat Washer 8 mm, Nylon

234081100

$1.00

84

Push Nut

732610072

$1.72

90

Torx Screw M5 X 20

250000724

$1.39

100

Panel Nut M5 X 0.8

250000958

$3.48

105

Panel Nut M5 X 0.8

250000958

$3.48

110

Torx Screw K50 X 16

250000720

$1.39

115

Stainless Steel Flat Washer

234062670

$1.74

130

Separator Pannel Ass'y | Includes 16 to 17

708300131

$263.05

130a

Torx Screw K50 X 16

250000720

$1.39

160

LH Welded Rail | XT

708300231

$73.82

160

RH Welded Rail | XT

708300232

$73.82

200

LH Painted Rail Cap | Except XT

708300333

$15.35

200

RH Painted Rail Cap | Except XT

708300334

$15.22

240

LH Rail Cover

708301380

$3.08

240

RH Rail Cover

708301381

$3.08

241

Pop Rivet 3/16 | XT

293150190

$4.60

244

Torx Screw M5 X 20

250000724

$1.39

250

Torx Truss Screw M6 X 16

250000721

$1.39

251

Torx Screw M6 X 20

250000722

$1.34

255

Stainless Steel Flat Washer

234062670

$1.74

260

Domed Nut M6

232361493

$1.77

264

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

268

Stainless Steel Flat Washer

234062670

$1.74

270

Bushing

708300737

$4.62

280

Torx Screw M6 X 25

250000758

$1.74

285

Flat Washer

224061121

$0.44

290

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

300

Camo, Outside Top Panel | Camo Model

708301693

$369.20

300

Squadron Green, Outside Top Panel | Squadron Green Models

708302339

$106.12

300

Timeless Black, Top Panel

708302403

$378.43

300

Boreal Green, Top Panel | Timeless Black

708302766

$378.43

310

Inside Top Pannel

708300053

$129.20

315

Torx Screw K50 X 16

250000720

$1.39

320

Upper Retainer Cable

708300763

$32.28

330

Handle

708300398

$12.91

340

Top Rod

708300160

$3.08

350

Activator

708300184

$8.45

360

Torx Screw K50 X 16

250000720

$1.39

370

Flat Washer 6 mm

234061410

$1.04

380

Bushing

708300365

$5.52

390

Hex. Flange Screw M6 X 130

230663084

$2.77

400

Push Nut

732610072

$1.72

410

LH Latch

708300162

$20.74

420

RH Latch

708300201

$20.74

430

Torx Screw M6 X 20

250000722

$1.34

435

Torx Screw M6 X 20

250000722

$1.34

440

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

445

Bushing

708300737

$4.62

450

LH Upper Support

708300359

$36.89

460

RH Upper Support

708300360

$9.22

470

Spring

708300219

$3.85

480

LH Tie Rod Clip

708300182

$2.31

490

RH Tie Rod Clip

708300202

$2.31

500

Outside Bottom Pannel Ass'y

715002365

$147.66

510

INSIDE BOTTOM PANNEL - Call your local BRP dealership

708300073

Unavailable

515

Torx Screw K50 X 16

250000720

$1.39

520

Lower Retainer Cable

708300762

$15.22

530

Handle

708300398

$12.91

540

Lower Bottom Rod

708300164

$3.08

550

Activator

708300184

$8.45

560

Torx Screw K50 X 16

250000720

$1.39

570

Flat Washer 6 mm

234061410

$1.04

580

Bushing

708300365

$5.52

590

Hex. Flange Screw M6 X 130

230663084

$2.77

600

Push Nut

732610072

$1.72

610

LH Latch

708300162

$20.74

610

RH Latch

708300201

$20.74

625

Torx Truss Screw M6 X 16

250000721

$1.39

630

Torx Truss Screw M6 X 16

250000721

$1.39

635

Torx Screw M6 X 20

250000722

$1.34

640

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

642

Domed Nut M6

232361493

$1.77

644

Panel Nut M6 X 1.0

250100198

$1.73

645

Bushing

708300737

$4.62

650

LH Lower Support

708300361

$9.11

660

RH Lower Support

708300362

$8.45

670

Spring

708300219

$3.85

680

LH Tie Rod Clip

708300182

$2.31

690

RH Tie Rod Clip

708300202

$2.31

800

Black Box Support

708300875

$290.74

805

Heat Deflector

708300780

$12.91

806

Pop Rivet 3/16"

293150103

$0.54

810

Rubber Stopper

708000884

$6.45

820

Bracket Pivot

708300185

$3.85

840

Hex. Flange Screw M8 X 130

230683034

$6.15

860

Hex. Flange Elastic Nut M8

233281414

$1.14

880

Black Welded Lateral Support

708300879

$46.12

900

Black Lateral Support

708300877

$170.74

920

Hex. Flange Screw M6 X 95

207669584

$3.28

940

Hex. Screw M6 X 65

207066544

$0.46

960

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

970

Flat Washer 6 mm

234062410

$0.64

980

Pop Rivet 3/16"

293150100

$1.08

1000

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1200

Housing Half

506150400

$7.31

1220

Stopper Plate

506150600

$4.15

1230

Adjustable Stopper Plate

708300210

$3.85

1240

Hex. Flange Screw M6 X 50

207665044

$3.38

1250

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1260

Carriage Bolt M8 X 70

207787044

$1.11

1280

Hex. Flange Elastic Nut M8

233281414

$1.14

1300

Housing Bushing

506150500

$7.49

1320

Pivot Bushing

708300172

$3.85

1400

Frame Rubber Bumper

293720091

$8.45

1401

Hex. Jam Nut M8

232180600

$0.56

1402

Lock Washer 8 mm

234181401

$0.89

1600

Cargo Handle Ass'y

708300751

$73.82

1610

Cap Latch Lever

708300358

$5.38

1620

LH Latch Lever Support

708300278

$8.45

1630

RH Latch Lever Support

708300351

$8.45

1640

Half Ring

705500033

$4.92

1660

Clamp Reatiner

708300392

$2.75

1680

Hex. Flange Screw M6 X 16

207661644

$0.61

1700

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1720

Spring

708300454

$3.85

1730

Spacer

708300902

$8.45

1740

Box Retainer

708300136

$7.60

1760

Hex. Flange Screw M6 X 45

250001028

$1.07

1780

Hex. Flange Elastic Nut M8

233281414

$1.14

2000

Gaz Shock

708301136

$36.89

2010

Pin

414079100

$2.23

2020

Hair Pin

414575600

$1.51

2030

Hex. Screw M6 X 90

207069044

$4.02

2040

Flat Washer 6 mm

234062410

$0.64

2050

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

2060

Spacer

708301059

$17.66

2070

Spacer

708300470

$7.37

3000

Retaining Plate

708300183

$8.45

3020

Retaining Plate Support

708300206

$3.98

3030

Torx Screw M6 X 25

250000758

$1.74

3040

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

3100

Front Support

708301633

$27.66

3120

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

3260

Upper Pivot Support

708300345

$3.85

3270

Bushing

708300735

$11.83

3280

Torx Truss Screw M6 X 50

250000749

$3.11

3290

Domed Nut M6

232361493

$1.77

3320

Torx Screw M6 X 20

250000722

$1.34

3330

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

3340

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

3340a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

3340b

Hex. Elastic Stop Nut M6

232561600

$0.92

3350

Stainless Steel Flat Washer

234062670

$1.74

3360

Spacer

708300736

$8.45

3370

Torx Screw M6 X 45

250000748

$1.56

3400

Rubber Bumper

293830005

$5.33

3500

Red Reflector

705011221

$12.32

3510

Stainless Steel Flat Washer

234062670

$1.74

3520

Elastic Stop Nut M5

232551414

$0.72

3700

LH Upper Rear Mudguards | LTD

705008671

$38.56

3710

RH Upper Rear Mudguards | LTD

705008673

$38.56

3720

Elastic Stop Nut M6

232561434

$1.55

3725

Stainless Steel Flat Washer

234062670

$1.74

3730

Stainless, Torx Screw M6 X 30

250000842

$1.74
