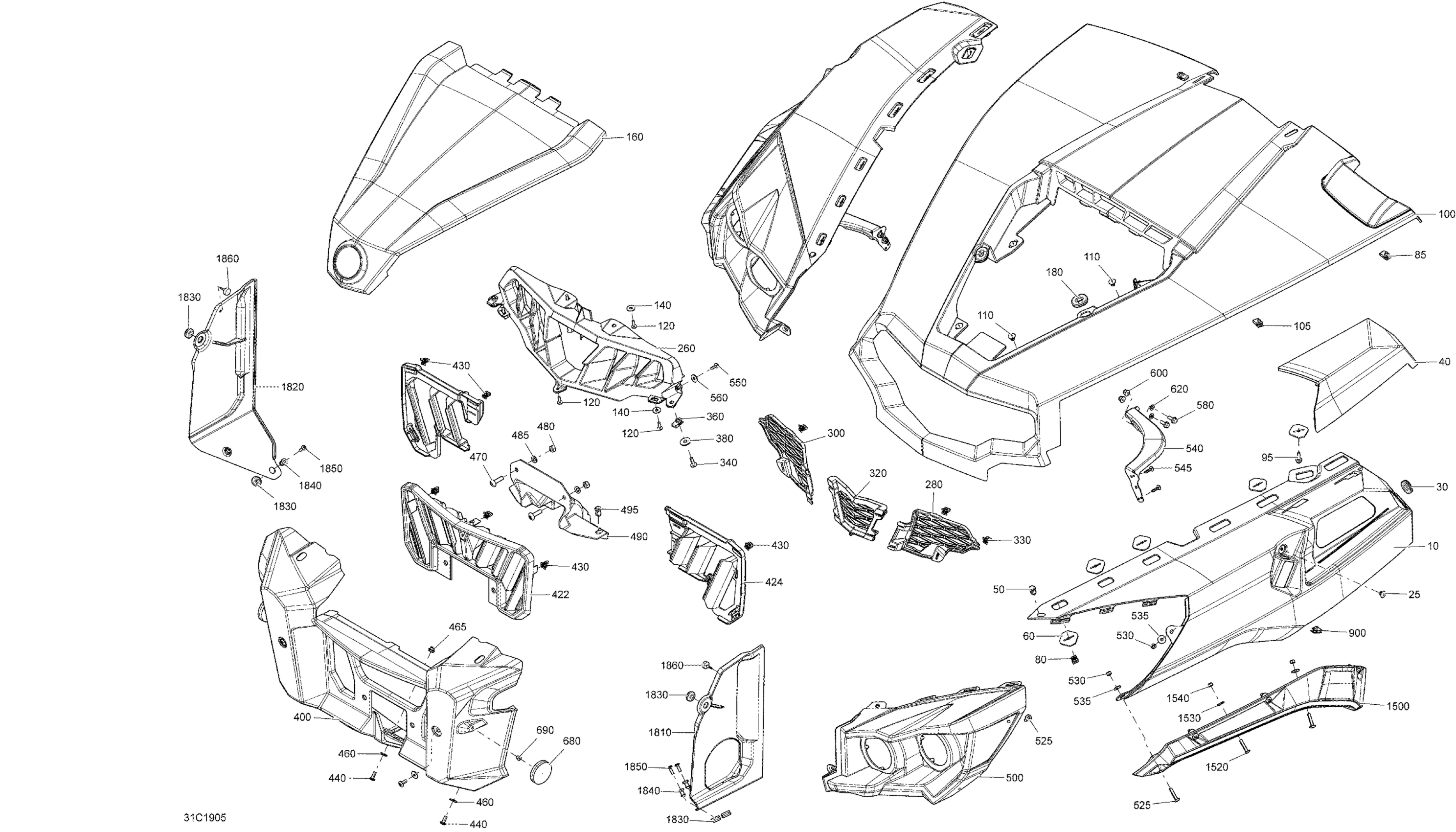

Can-Am Commander MAX 1000R EFI - 2019 Body And Accessories - Front Section - Boreal Green Diagram

#

Description
Price

10

Boreal Green, LH Front Fender

705013171

$379.97

20

Boreal Green, RH Front Fender

705013172

$379.97

25

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

30

Grommet

517303756

$3.15

40

Boreal Green, Inlet Cover CVT

705013170

$146.89

50

Tuflok Plastic Rivet

293150230

$1.21

60

Support Plate

705003841

$0.91

80

Edge Clip

517302785

$0.70

85

Panel Nut M6 X 1.0

250100198

$1.73

95

Hex. Flange Screw M6 X 20

207662054

$0.83

100

Boreal Green, Hood Fixed

705013169

$903.05

105

Panel Nut M6 X 1.0

250100198

$1.73

110

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

120

Torx Screw K50 X 16

250000720

$1.39

140

Stainless Steel Flat Washer

234062670

$1.74

160

Boreal Green, Hood

705013168

$471.51

180

Oval Washer

705005156

$4.85

260

FASCIA UP B-160 - Call your local BRP dealership

705003629

$19.20

280

LH Upper Facia Protector

705004350

$4.03

300

RH Upper Facia Protector

705004351

$4.03

320

Center Upper Facia Protector

705004336

$4.03

330

Edge Clip

517302785

$0.70

340

Torx Screw M6 X 20

250000722

$1.34

360

Panel Nut M6 X 1.0

250100198

$1.73

380

Flat Washer 8 mm

234082410

$1.11

400

Black Front Facia

705008689

$94.58

422

Lower Front Facia Protector

705004755

$16.89

424

LH Lower Rear Facia Protector

705004819

$16.89

426

RH Lower Rear Facia Protector

705004820

$16.89

430

Edge Clip

517302785

$0.70

440

Torx Screw M6 X 16

250000755

$0.72

460

Stainless Steel Flat Washer

234062670

$1.74

465

Insert Half Hex Body M6 x 1.0

250100199

$2.54

500

LH Front Facia

705002885

$69.20

520

RH Front Facia

705002886

$69.20

525

Stainless, Torx Screw M6 X 30

250000842

$1.74

530

Elastic Stop Nut M6

232561434

$1.55

535

Stainless Steel Flat Washer

234062670

$1.74

540

Facia Front Support

705002891

$36.89

545

Torx Screw Truss Head K50X20 T20

250000760

$1.74

550

Torx Screw K50 X 16

250000720

$1.39

560

Stainless Steel Flat Washer

234062670

$1.74

580

Hex. Flange Screw M6 X 16

207661644

$0.61

600

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

620

Stainless Flat Washer M6

234061600

$0.25

680

Amber Reflector | Except Europe Model

705011222

$12.32

900

Panel Nut M6 X 1.0

250100198

$1.73

1500

Black, LH Upper Front Mudguard | LTD

705008666

$38.56

1510

Black, RH Upper Front Mudguard | LTD

705008667

$38.56

1520

Stainless, Torx Screw M6 X 30

250000842

$1.74

1530

Stainless Steel Flat Washer

234062670

$1.74

1540

Elastic Stop Nut M6

232561434

$1.55

1810

LH Deflector | XT

705005113

$15.35

1820

RH Deflector

705002894

$18.43

1830

Grommet

709000582

$4.38

1840

Knob

517303439

$3.73

1850

Torx Screw K50 X 16

250000720

$1.39

1860

Rubber Stopper

708000759

$3.61
