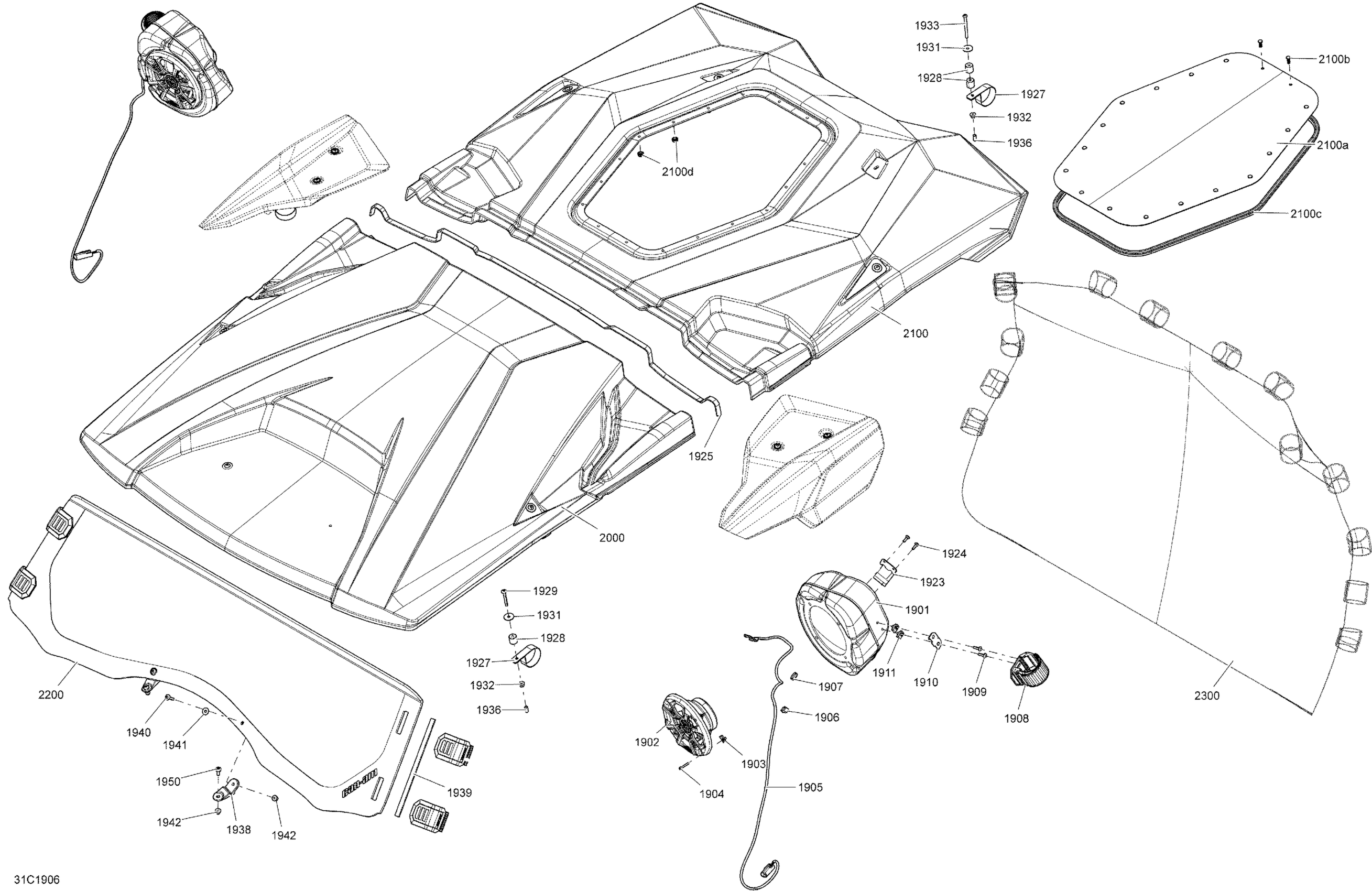

Can-Am Commander MAX 1000R EFI - 2019 Body And Accessories - Accessories - LTD Diagram

Description

Price

1901

LH Speaker Box Ass'y

710002837

$137.28

1901

RH Speaker Box Ass'y

710002839

$137.28

1902

Speaker

710002838

$158.18

1903

Extruded Panel Nut M4 X 0.7

250100143

$7.78

1904

Torx Pan Screw M4 X 20

250000622

$1.79

1905

Speaker Harness

710004341

$102.21

1906

Clip

414227300

$1.40

1904

Grommet

414036300

$2.55

1908

Retainer Velcro Perforated

705013420

$39.52

1909

Torx Screw M5 X 20

250000724

$1.60

1910

M5 Support Plate

710002946

$7.18

1911

Panel Nut M5 X 0.8

250000958

$4.00

1923

U Brace Strip | LTD

705009030

$17.88

1924

Torx Screw K50 X 16

250000720

$1.60

1925

Gasket, Neoprene 2000Mm Long

219704476

$14.51

1925

Neoprene Seal (1PAC=3M)

219704364

$26.09

1927

"P" Bracket, 2" Dia.

705005626

$24.60

1928

Roof Spacer Bushing

705007138

$1.69

1929

Torx Truss Screw M6 X 50

250000749

$3.01

1931

Washer M6

250200029

$1.78

1933

Torx Screw Button Head M6 X 70

235567084

$7.06

1934

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.00

1935

Spacer

705009217

Unavailable

1936

Cap

515176141

$2.82

1937

J Clip

705011349

$8.60

1938

Windshield Support

705006537

Unavailable

1939

Gasket, Neoprene 2000Mm Long

219704476

$14.51

1940

Torx Screw M6 X 25

250000758

$2.00

1942

Hex. Flange Elastic Nut M6

233261494

$1.45

1950

Torx Truss Screw M6 X 20

250000488

$2.00

2000

Deep Black Roof Front Section

705009203

$570.12

2100

Deep Black Roof Rear Section

705009205

$570.12

2100a

Clear Skylight Panel

705009562

$202.21

2100b

Plastic Dart

705009405

$1.73

2100c

EXTRUSION - Call your local BRP dealership

293250336

Unavailable

2100d

Push Nut

705009406

$0.85

2200

Windshield Half Ass'y

703501024

$281.31

2300

Wind Deflector

715003078

$128.33
