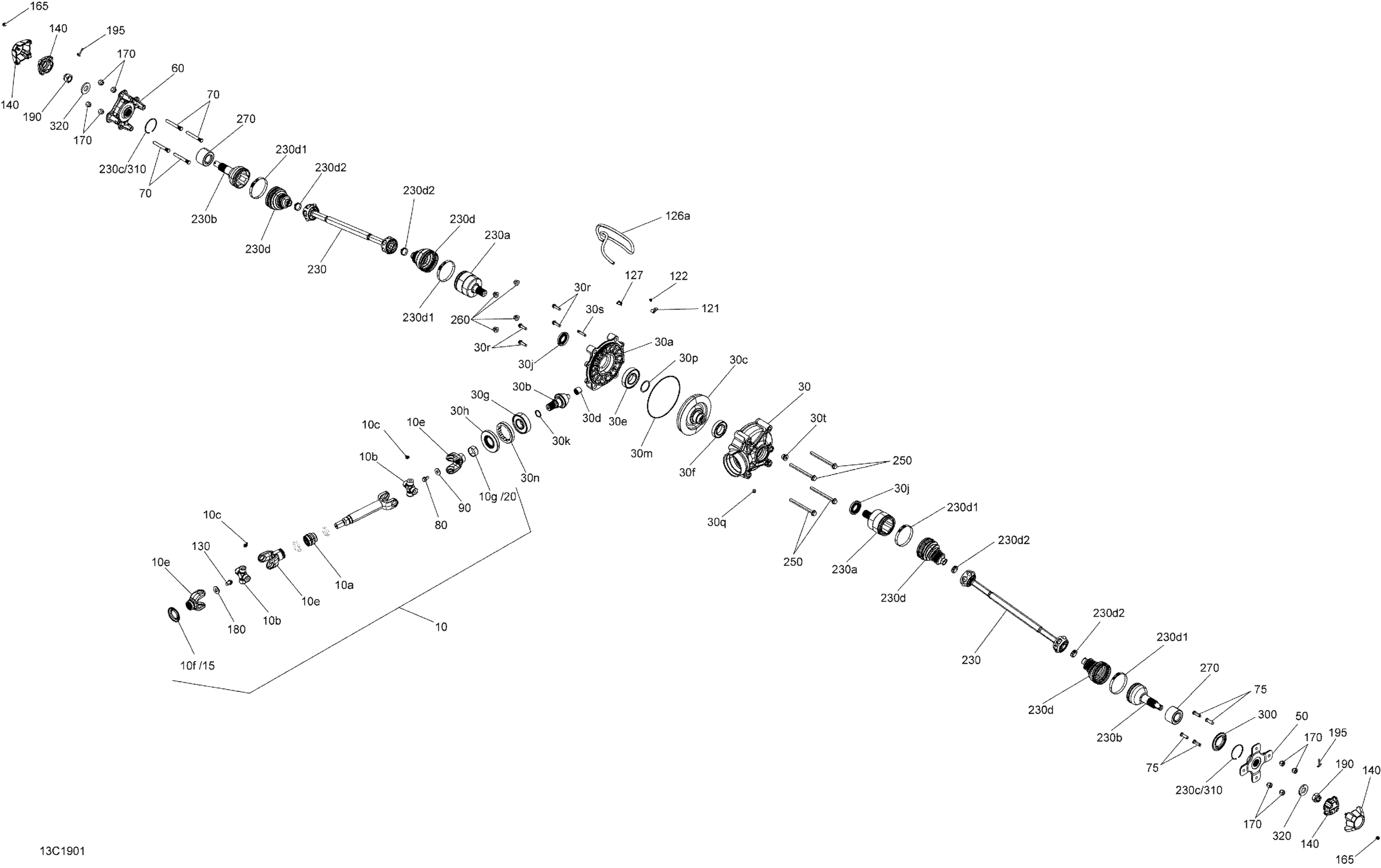

Can-Am Commander MAX 800R EFI - 2019 Rear Drive Diagram

#

Description
Price

10

Shaft Ass'y Kit

703500985

$105.19

10a

Rubber Boot

715900118

$13.28

10b

Universal Joint Ass'y | T3

703500846

$55.19

10c

Grease Fitting | T3

715900295

$4.09

10d

Yoke

715900499

$23.10

10e

Joint | T3

715900436

$23.10

10f

Protector

705501123

$5.90

10g

Wear Ring | 4X4

705400036

$24.60

15

Protector

705501123

$5.90

30

Final Drive Unit | Includes 30 to 30u

705502517

$1,712.66

30a

Rear Cover

705502518

$165.64

30b

10 Tooth Gear

705501871

$310.42

30c

36 Tooth Gear

705502109

$443.25

30d

Needle Bearing

705501874

$66.39

30e

Ball Bearing

705501875

$72.36

30f

Ball Bearing

705501876

$72.36

30g

Ball Bearing

705501877

$72.36

30h

Oil Seal

705501878

$34.30

30j

Oil Seal

705502110

$18.63

30k

Oil Seal

705501880

$14.90

30m

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$7.94

30n

Nut

705501882

$34.30

30p

Shim Kit

705501883

$41.76

30q

Drain Plug | After May 30, 2014

705501885

$11.93

30r

Bolt

705501886

$6.30

30s

Vent Valve

705501887

$13.43

30t

Fill Level Plug

705501889

$18.63

60

Wheel Hub | RH Except MAX Model - Except Package XTP

705502470

$116.99

70

Wheel Stud

705401964

$9.34

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.00

90

Flat Washer M10 | 4X4

250200014

$1.34

121

Open Clamp

414108400

$3.01

122

Pop Rivet 3/16"

390402200

$0.30

126

Was 293830195 Polyurethane Hose

219704390

$18.63

127

Clip

414227300

$1.40

130

Hex Flange Screw M12 X 16

250001039

$2.00

180

Conical Spring Washer M12

250200005

$3.04

190

Castle Nut M20

250100193

$7.64

195

Cotter Pin

250400084

$2.06

230

Rear - Premium CV Axle

705502411

$226.84

230a

Plunging Joint

715900433

$238.78

230b

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

230c

Circlip

705501781

$5.10

230d

Boot Kit

705501864

$39.52

230d1

Oetiker Clamp, 82.1 mm

715900241

$9.00

230d2

Oetiker Clamp, 27.3 mm

715900242

$9.00

250

Hex. Flange Screw M10 X 125

230602546

$6.99

260

Hex. Flange Elastic Nut M10

233201436

$2.00

270

Ball Bearing

293350150

$50.34

300

Wear Sleeve | 4X4

705501121

$6.73

310

Circlip

293370019

$4.68

320

Conical Spring Washer M20

250200170

$12.63
