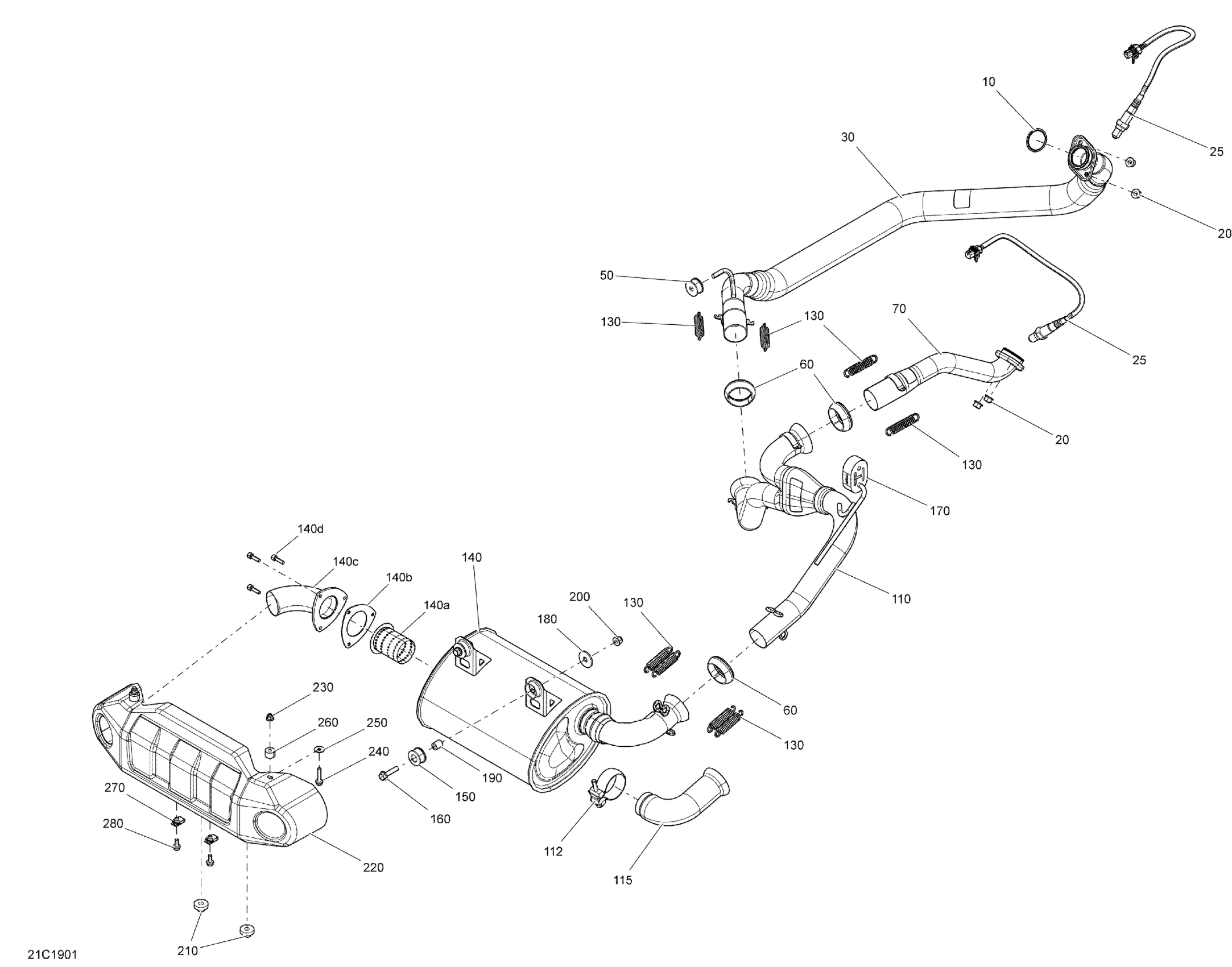

Can-Am Commander 1000R EFI - 2019 Exhaust - 1000R EFI Diagram

#

Description
Price

10

Gasket

707600317

$10.21

20

Hex. Flange Nut M8

233081416

$1.87

25

Oxygen Sensor

707600872

$132.81

30

Front Head Pipe | Except Model-Europe

707601204

$249.22

50

Anti-Vibration Rubber

707600702

$8.09

60

Exhaust Gasket

707601033

$13.04

70

Rear Head Pipe | Except Model-Europe

707601206

$249.22

110

Link Head Pipe | Except Model-Europe

707601207

$249.22

112

Exhaust Clamp

707600980

$23.10

115

LINK HEAD PIPE - Call your local BRP dealership

707601327

Unavailable

120

Exhaust Gasket

707601033

$13.04

130

Spring

415107100

$6.01

140

Muffler Ass'y | Except Model- Europe, Includes 39a To 39d

707601492

$783.55

140a

Spark Arrestor

707601803

$46.24

140b

Gasket

715900090

$11.46

140c

Muffler Outlet End Piece

715900091

$32.81

140d

Socket Head Screw M6 X 20

205062060

$2.21

150

Vibration Damper

707603323

$10.88

160

Hex. Flange Screw M8 X 35

207683544

$1.60

170

Rubber Bumper

707600638

$13.51

180

Washer

503032900

$3.10

190

Bushing

293900106

$4.28

200

Hex. Flange Elastic Nut M8

233281414

$1.31

210

Grommet

709200285

$8.13

220

Deflector

707600675

$39.52

230

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

240

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

250

Flat Washer

250200082

$0.40

260

Bushing

707000882

$3.33

270

Panel Nut M6 X 1.0

250100198

$1.99

280

Hex. Flange Screw M6 X 16

207661644

$0.70
