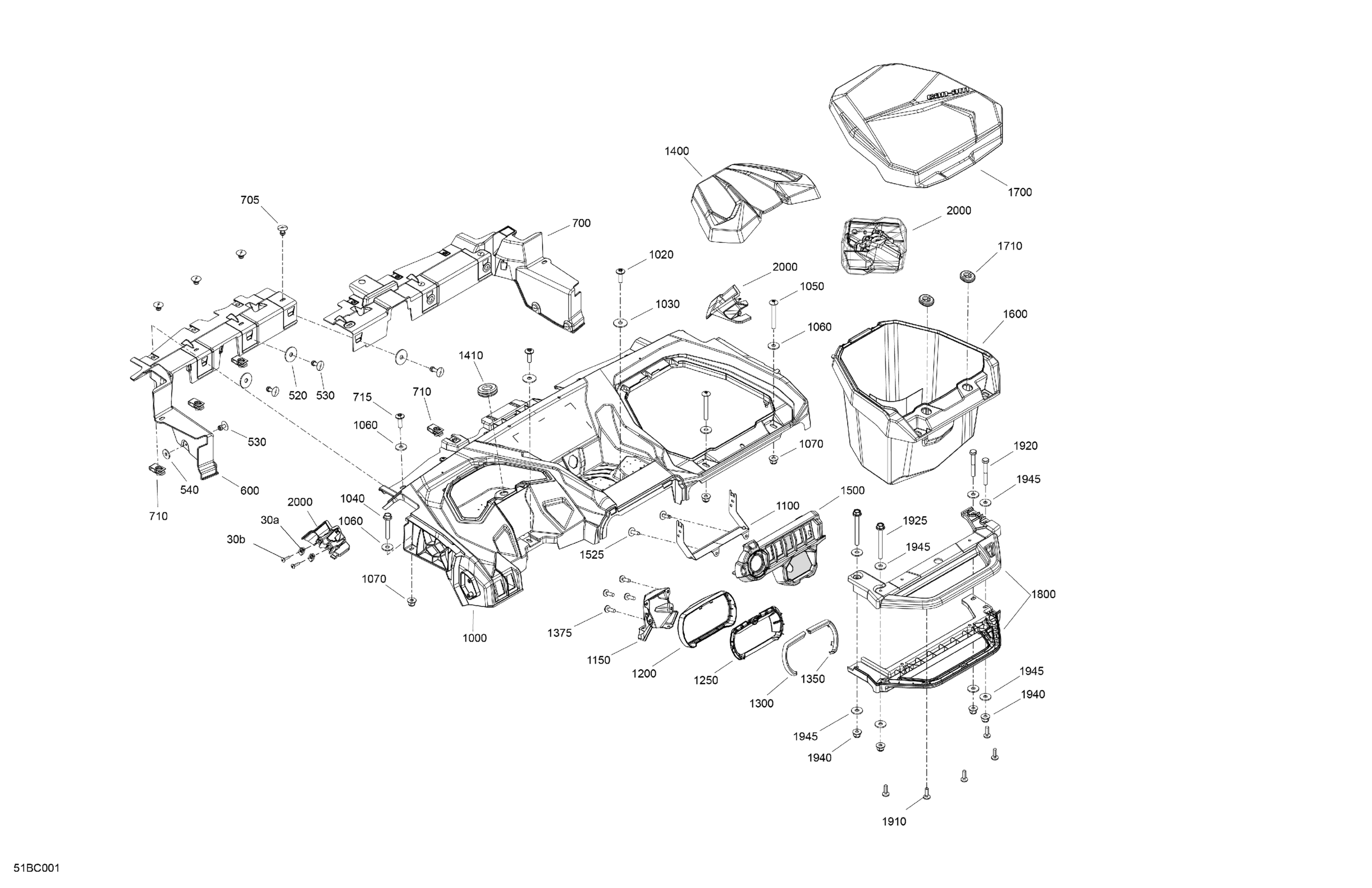

Can-Am Commander 1000R EFI - DPS - 2023 Cab Interior - Dashboard Diagram

#

Description
Price

30a

Panel Nut M5 X 0.8

250000958

$4.23

30b

Torx Screw M5 X 20

250000724

$1.69

520

Flat Washer M6 X 25

250200044

$2.69

530

Pop Rivet 3/16"

293150100

$1.09

540

Washer M5

250200025

$0.74

600

LH Upper Front Bulkhead

707900513

$18.99

700

RH Upper Front Bulkhead

707900514

$18.99

705

Pop Rivet 3/16"

293150100

$1.09

710

Panel Nut M6 X 1.0

250100198

$2.11

715

Torx Screw M6 X 20

250000722

$1.68

1000

Dashboard Kit

715008526

$204.99

1020

Torx Screw M6 X 20

250000722

$1.68

1030

Flat Washer M6.6 X 22

250200162

$2.32

1040

Hex. Flange Screw M6 X 40

207664044

$2.22

1050

Torx Truss Screw M6 X 50

250000749

$3.17

1060

Stainless Steel Flat Washer

234062670

$2.11

1070

Hex. Flange Elastic Nut M6

233261466

$2.00

1100

Dash Support

707900941

$9.79

1150

Cluster Support

709402140

$17.49

1200

Rear Cluster Cap

709402092

$13.99

1250

Gauge Trim

709402742

$13.99

1300

Deep Black, LH Trim Gauge

709402210

$28.99

1350

Deep Black, RH Trim Gauge

709402211

$28.99

1375

Torx Screw K50 X 16

250000720

$1.69

1400

Storage Cover

707900522

$16.49

1410

Grommet

517303756

$4.09

1500

Switch Support

707900524

$16.87

1525

Screw PT Type K-50 X 16

250000959

$2.11

1600

Glove Box

715005011

$57.99

1700

Glove Box Cover

715005009

$53.99

1710

Oblong Grommet

707900663

$2.79

1800

Passenger Handle Bar Kit

707900559

$34.99

1910

Torx Screw K50 X 16

250000720

$1.69

1920

Hex. Screw M6 X 45

207064544

$2.11

1925

Hex. Flange Screw M6 X 60

250000778

$4.44

1940

Hex. Flange Elastic Nut M6

233261466

$2.00

1945

Stainless Steel Flat Washer

234062670

$2.11

2000

Front Cage Trim Kit

707901021

$28.99
