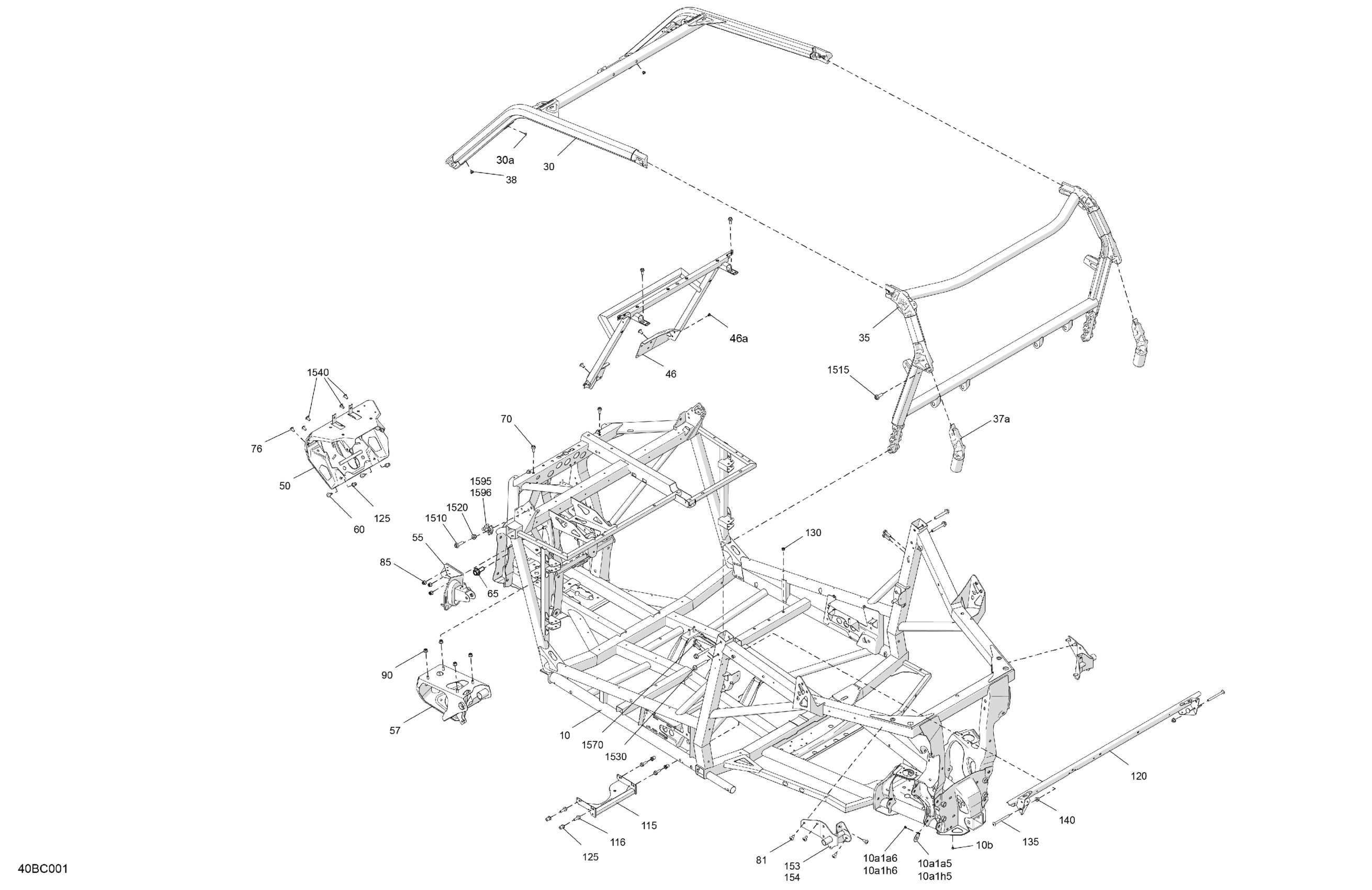

Can-Am Commander 1000R EFI - DPS - 2023 Frame - System Diagram

Black, Frame Kit | Includes 10 to 10a2w3

715009396

$3,629.99

Shim

705209479

$3.29

Pop Rivet 3/16"

390402200

$0.35

Shim

705209479

$3.29

Pop Rivet 3/16"

390402200

$0.35

Pop Rivet 3/16"

390402200

$0.35

Deep Black, Front Cage Kit | Includes 30 to 30a

715009384

$619.99

Pop Rivet 3/16"

390402200

$0.35

Deep Black, Rear Cage Kit

715009370

$619.99

Deep Black, Rear Cage Extension

705211464

$44.99

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Front Body Support | Includes 46 to 46a1h

705208893

$219.99

Pop Rivet 3/16"

390402200

$0.35

Deep Black, Front Bumper

705209043

$457.49

Brake Support

705206217

$49.99

DPS Support

705206294

$71.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Torx Truss Screw M8 X 16

250000746

$3.38

Torx Truss M/S M8 X 20

250000953

$2.11

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Elastic Flange Nut M8

233281416

$1.48

Bearing Support

705211563

$48.99

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

Central Tube

705209434

$159.99

Insert Half Hex Body M8 x 1.25

293450307

$2.69

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Torx Truss M8 X 90

250000806

$7.51

Hex. Flange Nut

233081436

$2.00

LH Rear Open Carrier Anchorage

705210342

$104.99

RH Rear Open Carrier Anchorage

705210343

$104.99

Hex. Flange Screw M10 X 35

250000855

$1.89

Hex. Flange Screw M10 X 30 Scotch G.

207503056

$2.53

Flange Elastic Nut M10

233201466

$3.17

Hex. Flange Screw M10 X 70

207607056

$4.29

Torx Truss Screw M8 X 16

250000746

$3.38

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

LH Front Anchorage

705209913

$38.99

RH Front Anchorage

705209914

$38.99
