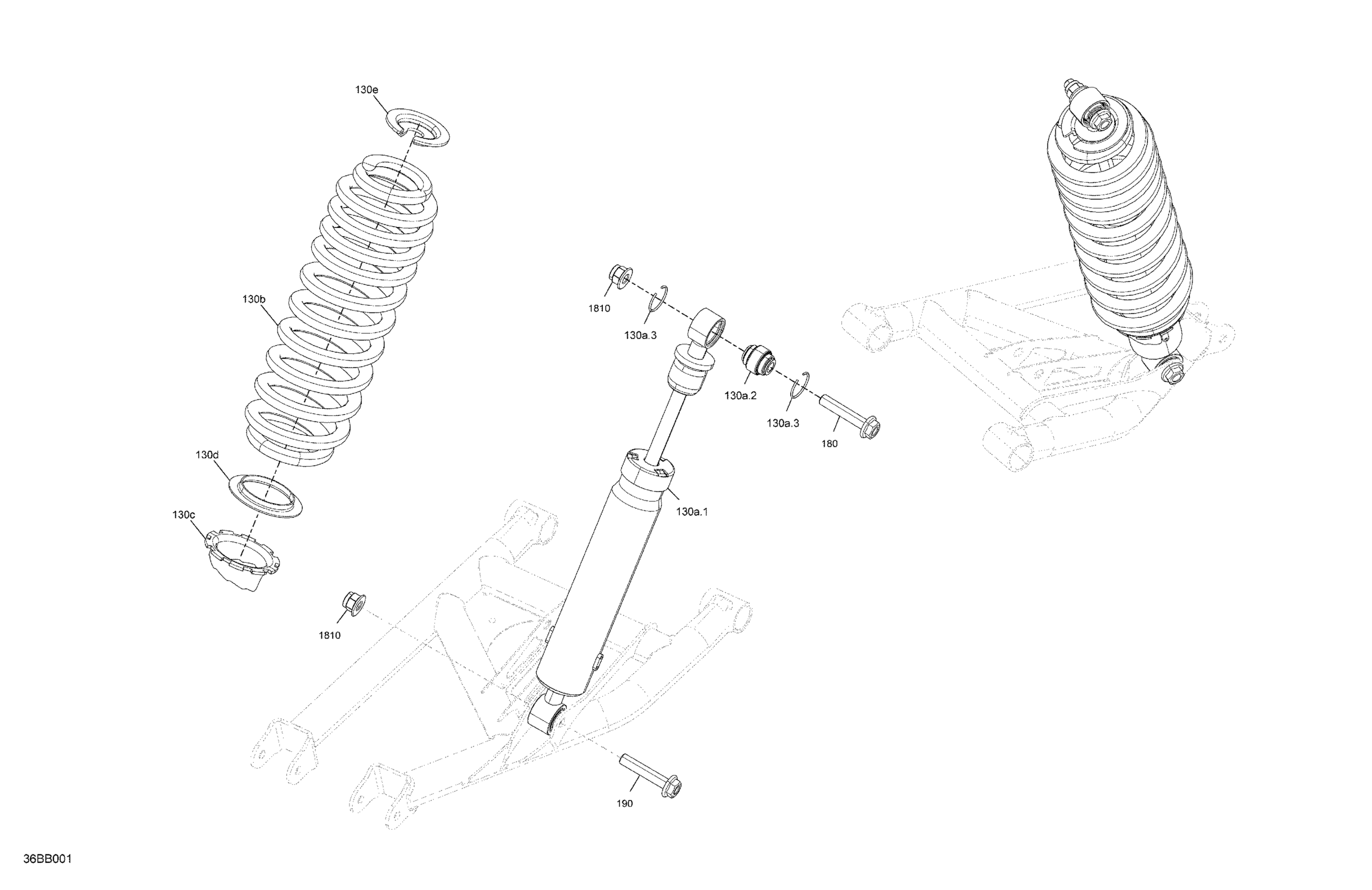

Can-Am Commander 700 EFI - DPS - 2022 Suspension - Rear Shocks Diagram

#

Description
Price

130a.1

Rear Shock Absorber

706004558

$194.58

130a.2

Ball Joint

706004078

$45.12

130a.3

Internal Retaining Ring

293370157

$1.99

130b

Deep Black, Compression Spring

706005169

$106.12

130c

Adjustment Ring

706000910

$14.37

130d

Protector Ring | STD, XT

706000911

$7.60

130e

Spring Cup

706001894

$14.75

180

Flange Screw M12 X 60

250000857

$6.08

190

Flange Screw M12 X 60

250000857

$6.08

1810

Elastic Flange Nut M12

233221466

$2.15
