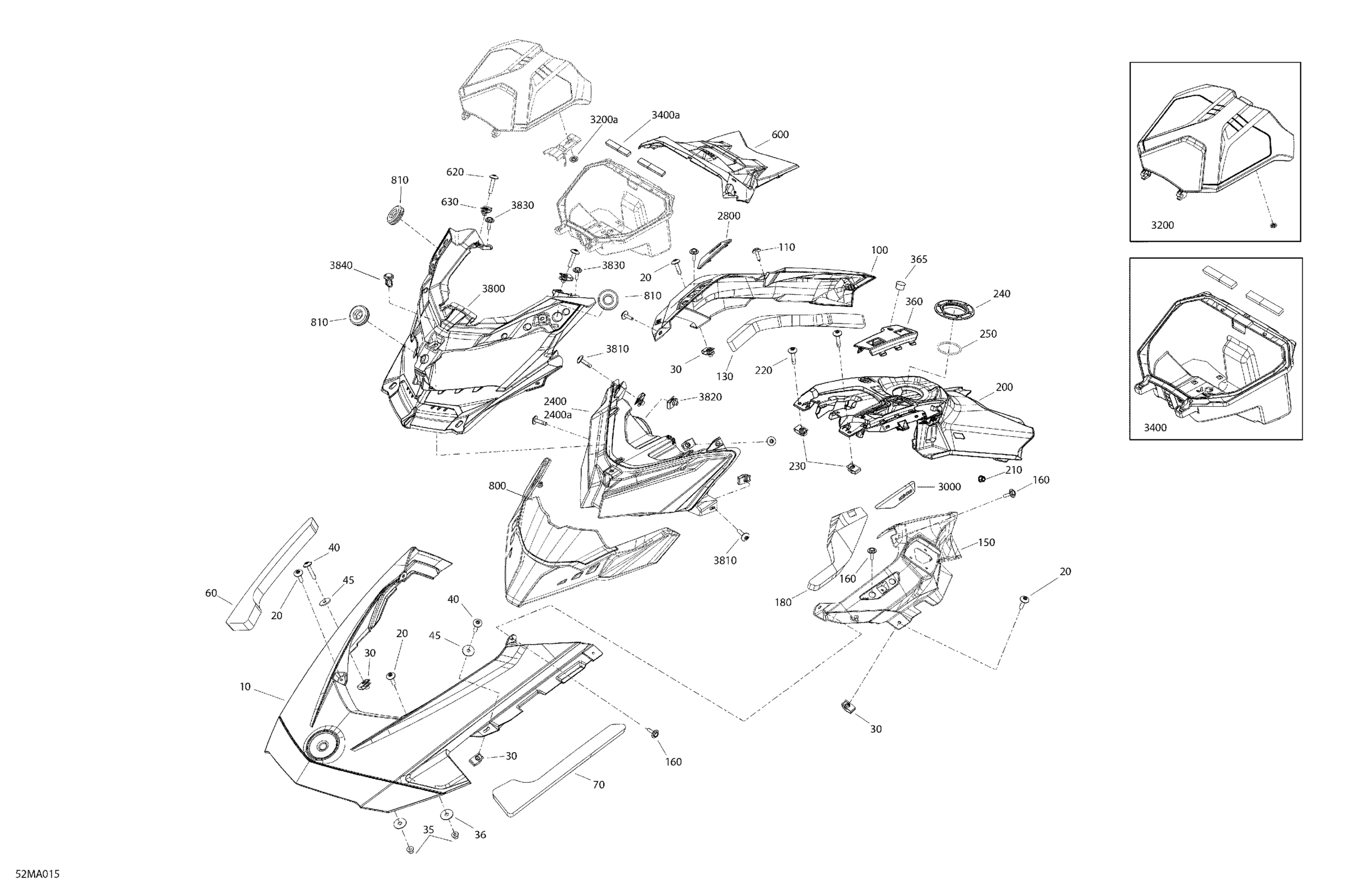

Ski-Doo 003 - BACKCOUNTRY 850 E-TEC - XRS - Europe, 2021 07- Body - Hood Diagram

Can-Am Red, Front Hood | Model Black/Lava Red

517306635

$214.99

Deep Black, Front Hood

517307291

$214.99

Torx Screw M5 X 20

250000528

$2.11

Panel Nut M5 X 0.8

250000958

$4.23

Hex. Flange Nut M5

233151414

$0.55

Flat Washer

250200040

$1.90

Torx Screw M5 X 26

250000587

$4.44

Washer

250200166

$2.11

RH Front Hood Foam

517305763

$13.49

LH Front Hood Foam

517305764

$14.99

Rh Hood | Model Black/Lava Red

517306636

$209.99

Deep Black, RH Hood

517307299

$209.99

Screw M4 X 16

250000725

$3.49

RH Hood Foam

517306001

$13.49

LH Rear Hood | VIP Hi-End Gauge

517307549

$209.99

Deep Black, LH Hood

517307300

$229.99

Screw M4 X 16

250000725

$3.49

LH Hood Foam

517306002

$13.49

Rear Console

517307685

$189.99

Flange Elastic Nut M5

233251434

$2.00

Torx Screw M5 X 26

250000587

$4.44

Panel Nut M5 X 0.8

250000958

$4.23

Console Nut

517306602

$13.49

O-Ring

706002839

$1.01

LH Front Console

517306580

$31.99

Cap

572051500

$5.89

Gauge Support

517307441

$38.99

Torx Truss M5 X 20

250000586

$4.44

Panel Nut M5 X 0.8

250000958

$4.23

Deep Black, Wind Deflector

517305875

$45.99

Wind Deflector | Model Catalyst Gray

517307383

$45.99

Grommet

517303756

$4.09

Headlamp | Includes 2400 to 2400a

517305752

$449.99

Bulb

415130081

$41.49

RH Hood Plate

517306049

$14.99

LH Hood Plate

517306050

$13.49

Cover Ass'y | Includes 3200 to 3200c

517307562

$21.99

Push Nut

732610072

$2.19

Trunk Ass'y | Includes 3400 to 3400b

517306058

$21.99

Seal Joint

517305157

$2.39

Lava Red, Headlight Fairing

517307446

$56.99

Deep Black, Headlamp Fairing

517305746

$64.99

Torx Screw M5 X 20

250000528

$2.11

Panel Nut M5 X 0.8

250000958

$4.23

Screw M4 X 16

250000725

$3.49

Tuflok Plastic Rivet

293150230

$1.47
