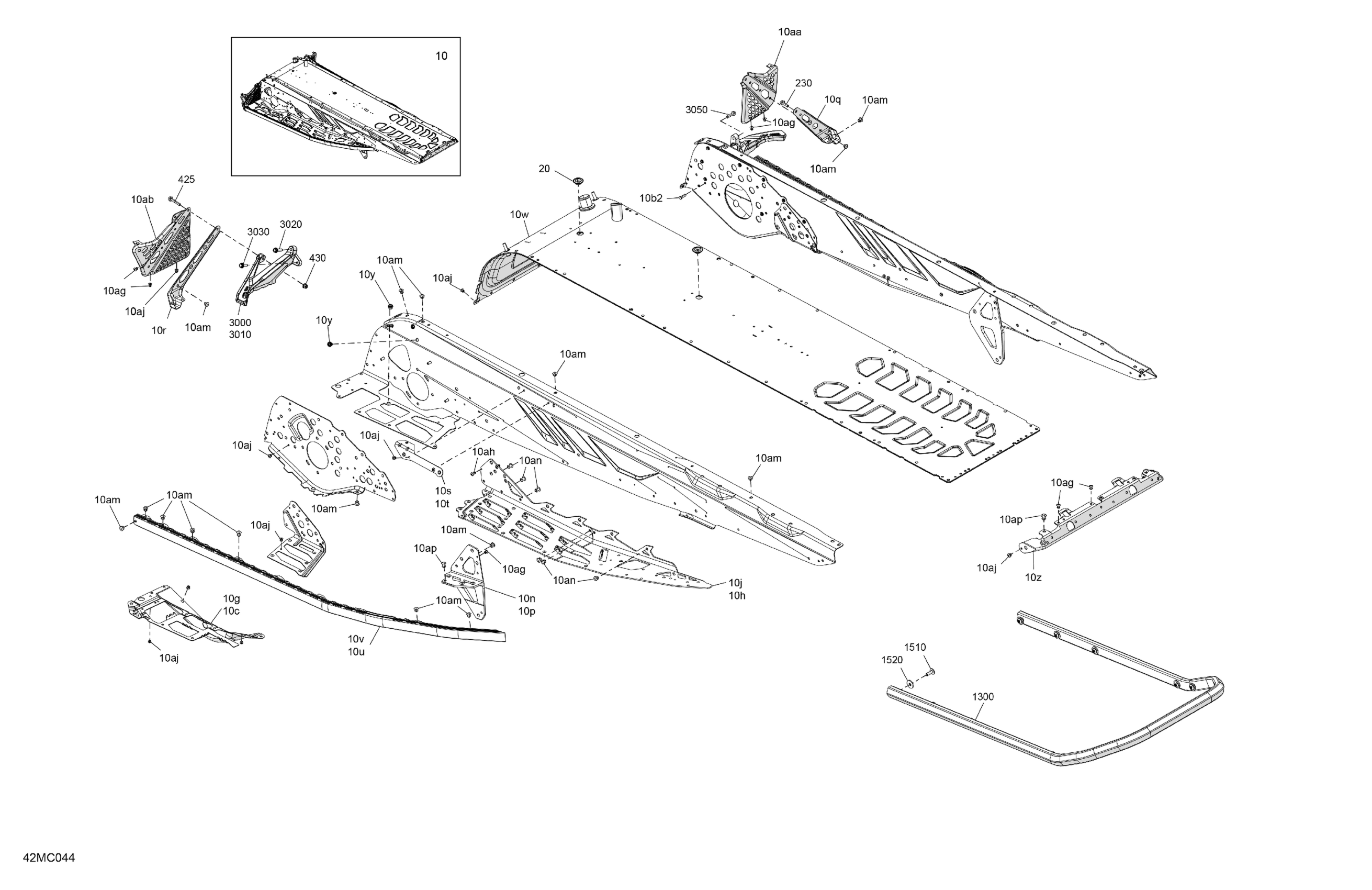

Ski-Doo BACKCOUNTRY 850 E-TEC - XRS - 146 Europe, 2023 Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 146" | Model Deep Black

518334202

Unavailable

Platinum Silver, Chassis Tunnel Module 146" | Model Manta Green

518334203

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$1.87

10c

RH Footrest Reinforcement

518332578

$79.07

10g

LH Footrest Reinforcement

518332577

$79.07

10h

RH Footrest

518332922

$38.78

10j

LH Footrest

518332923

$38.78

10n

LH Rear Suspension Support

518330682

$41.76

10p

RH Rear Suspension Support

518334395

$93.25

10q

Stirrup Reinforcement

518334507

$17.88

10r

Deep Black, LH Chassis Reinforcement

518332924

$17.88

10s

LH Under Chassis Reinforcement

518331744

$15.64

10t

RH Under Chassis Reinforcement

518331745

$16.39

10u

RH Roller

518329023

$175.34

10v

LH Roller

518329024

$175.34

10w

Radiator Tunnel 146

518334489

$658.93

10y

Clinch Nut M6 Hexsert

605636003

$4.00

10z

Rear Cap

518328990

$20.12

10aa

RH Footrest

518333006

$37.28

10ab

LH Footrest

518333007

$37.28

10ag

Avex Rivet

390909100

$0.28

10ah

Rivet Hucklok

293150163

$2.73

10aj

Avex Rivet

390909200

$0.28

10am

Rivet Ornit 6,5 X 12.5

293150265

$1.88

10an

Ornit Rivet 6,5 X 14.5

293150266

$1.88

10ap

Rivet Ornit 6,5 X 16.5

293150267

$1.88

Black, Plug

293730052

$6.18

230

Hex. Flange Screw M6 X 20

207562056

$2.00

425

Hex. Flange Screw M6 x 35

207663546

$0.99

430

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1300

Rear Bumper 146

518329553

$160.42

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

1520

Flat Washer

224061201

$1.27

3000

Black Toe-hold

518330358

$22.36

3010

Toe Hold

518329134

$15.64

3020

Hex. Flange Screw M6 X 25

250000793

$2.00

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

3050

Hex Screw Forming M6 x 25

250001124

$1.88
