Description

Price

1

Isolating Plate | Included in gasket kit

420430057

$4.46

2

Fuel Injector PTO

420874876

$330.57

3

Crush Ring

415129497

$7.16

4

O-Ring

415129498

$12.13

5

O-Ring

415129499

$6.61

6

Fuel Injector MAG | Includes no. 6-9

420874878

$330.57

7

Crush Ring

415129497

$7.16

8

O-Ring

415129498

$12.13

9

O-Ring

415129499

$6.61

10

O-Ring

420430775

$3.88

11

Tube

420874190

$5.06

12

Hex Screw M9 X 60

420840097

$1.99

13

Tie Rap 200 X 4.6

420951652

$6.07

14

Reed Valve Ass'y

420924798

$38.03

15

Intake Socket

420867390

$105.94

16

Tapping Screw M5 X 22

420841550

$1.63

17

Clamp

420251208

$13.10

18

Throttle Body Socket | Includes no. 18-20

420685754

$344.75

19

Throttle Valve Position Sensor | Includes no. 2-3

420866680

$64.90

20

Not Available As Spare Parts

XXX

Unavailable

21

Injection Valve Ass'y | Includes 18 to 20

420874887

$166.24

22

O-Ring

420431890

$5.69

23

O-Ring

420631220

$13.18

24

Injector Clip

420853030

$2.82

25

Fuel Rail

420874155

$22.36

26

Torx Flange Screw M6 X 25

420440234

$2.91

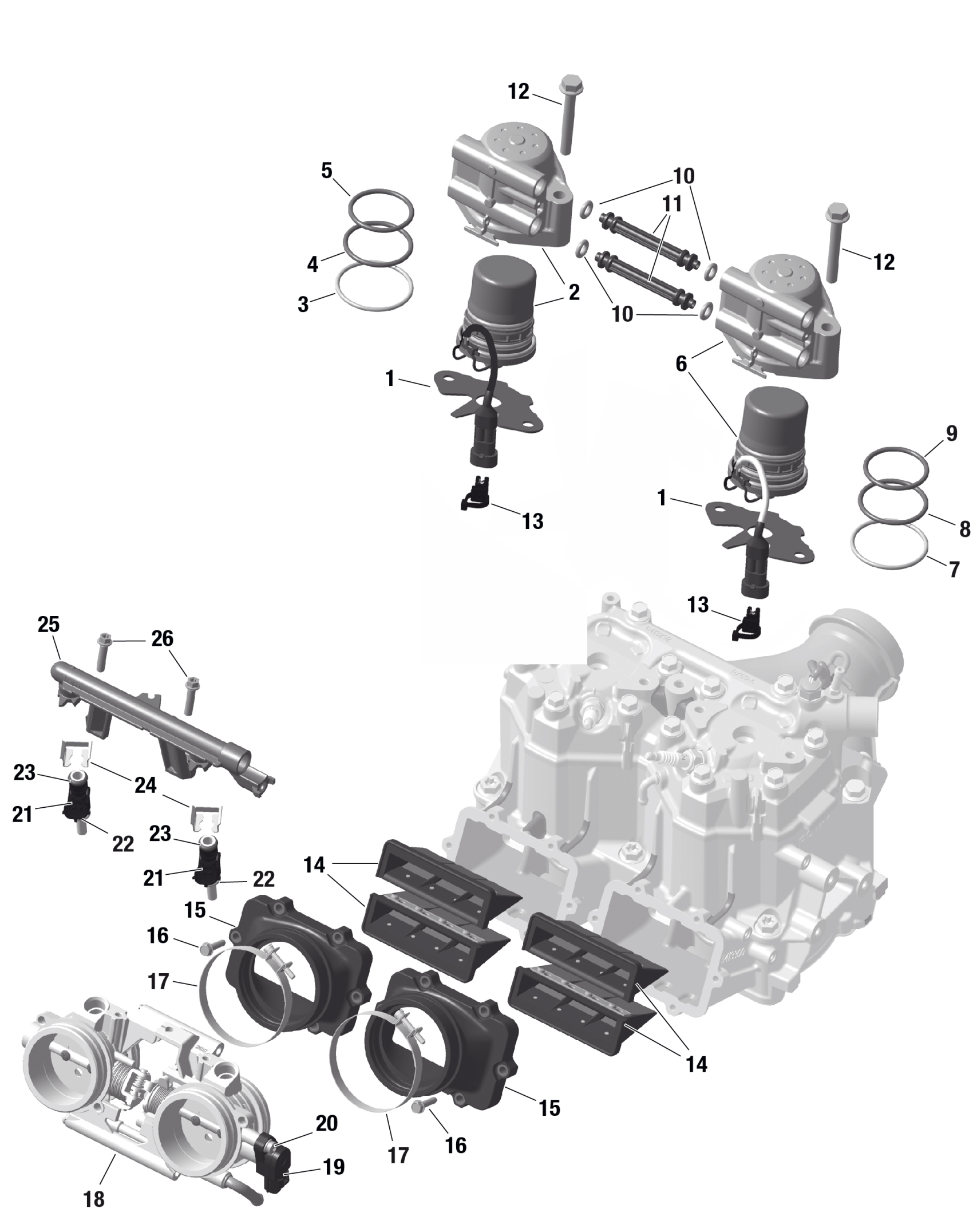

Ski-Doo BACKCOUNTRY 850 E-TEC - STD - 2023 ROTAX - Electronic Fuel Injection Diagram

Isolating Plate | Included in gasket kit

Fuel Injector PTO

Crush Ring

O-Ring

O-Ring

Fuel Injector MAG | Includes no. 6-9

Crush Ring

O-Ring

O-Ring

O-Ring

Tube

Hex Screw M9 X 60

Tie Rap 200 X 4.6

Reed Valve Ass'y

Intake Socket

Tapping Screw M5 X 22

Clamp

Throttle Body Socket | Includes no. 18-20

Throttle Valve Position Sensor | Includes no. 2-3

Not Available As Spare Parts

Injection Valve Ass'y | Includes 18 to 20

O-Ring

O-Ring

Injector Clip

Fuel Rail

Torx Flange Screw M6 X 25
