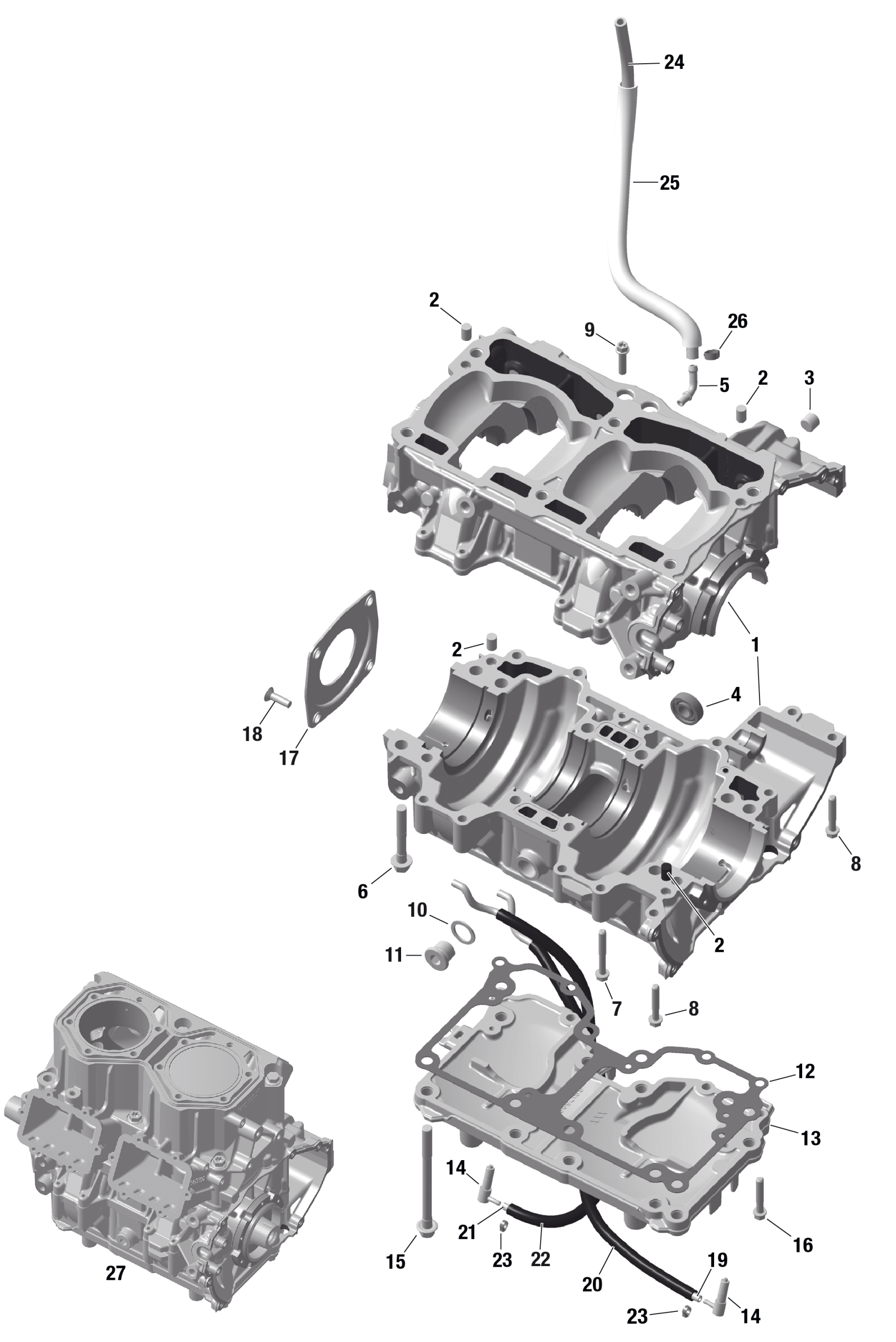

Ski-Doo BACKCOUNTRY 850 E-TEC - STD - 2023 ROTAX - Crankcase Diagram

#

Description
Price

1

Crankcase | Includes no. 1-6

420893774

$1.00

2

Center Pin 8 X 12

420632010

$4.01

3

Plug Screw M12x1,5

420840658

$7.51

4

Ball Bearing

420232100

$20.99

5

Fittin 90D

420924802

$3.49

6

Hex. Screw M8 X 56.5

420941627

$8.57

7

Torx Flange Screw M6 X 45

420440324

$0.98

8

Torx Flange Screw M6 X 35

420440274

$1.01

9

Torx Flange Screw M6 X 25

420440234

$3.06

10

O-Ring

420430622

$4.44

11

Plug Screw

420640457

$14.83

12

Engine Support Gasket | Included in gasket kit

420430072

$23.99

13

Engine Support

420812688

$105.99

14

Check Valve

420956511

$35.99

15

Screw M8x105

420941518

$10.60

16

Torx Flange Screw M6 X 35

420440274

$1.01

17

Oil Seal Cover

420812422

$14.83

18

Screw M6 X 20

420941436

$3.17

19

Oil Line 585 mm This part replaces 420201921.

420201928

$5.39

20

Tube 390MM

420460042

$8.57

21

Oil Line 585 mm This part replaces 420201921.

420201928

$5.39

22

Slider Shoe This part replaces 420460045.

417223021

$5.90

23

Clamp

420851508

$14.22

24

Oil Line 310MM

420201551

$7.51

25

Protector Tube

420460047

$14.22

26

Clamp

420853653

$7.41

27

Engine

420084914

$3.00
