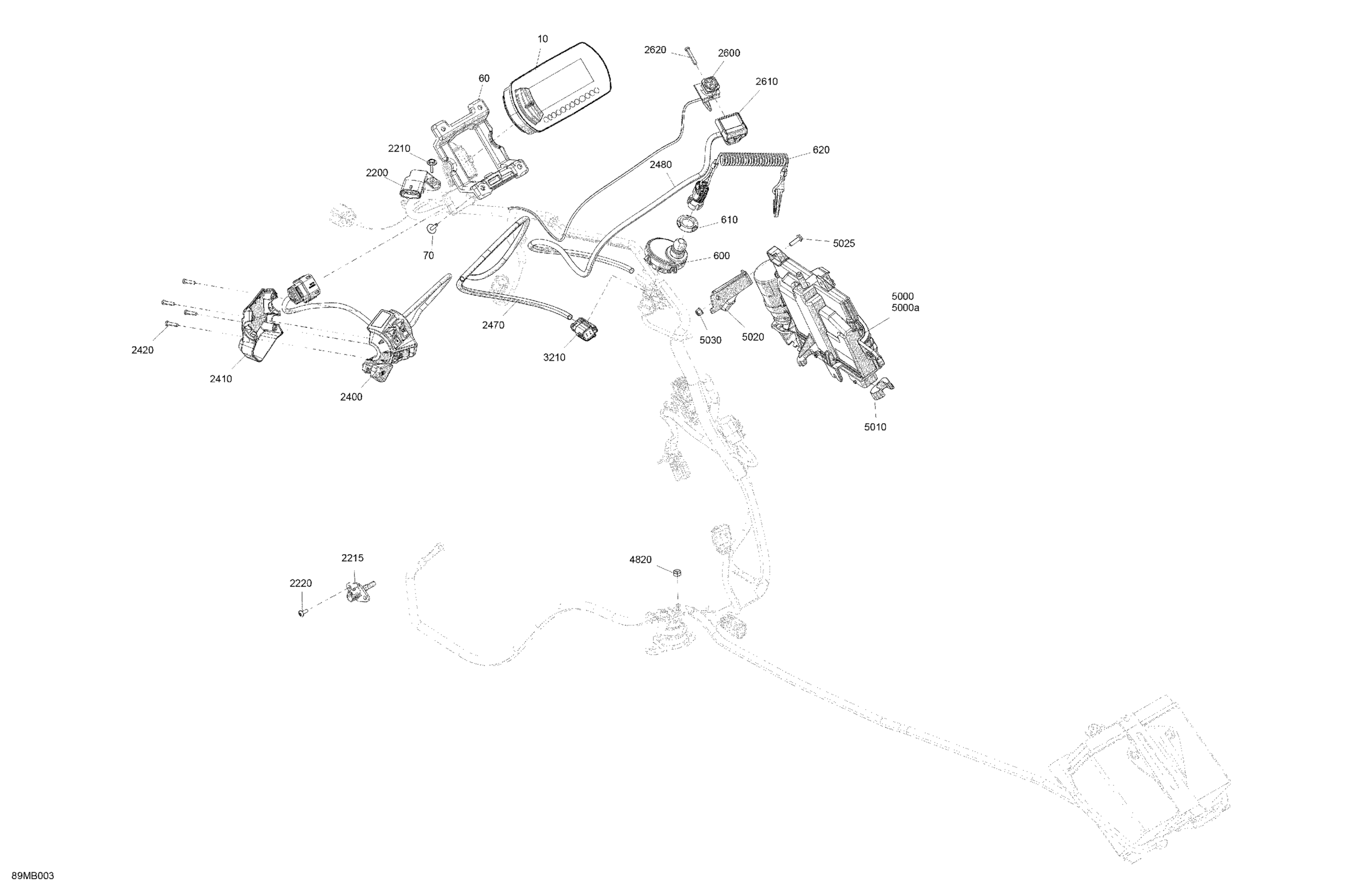

Ski-Doo 003 - BACKCOUNTRY 850 E-TEC - STD - North America, 2022 08- Electric - Upper Section Diagram

2 Button Multifunction Gauge Full Size Color

515178226

$599.99

Housing

515178450

$6.39

Screw M4 X 16

250000725

$3.49

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

Safety Nut (DESS Switch)

278002963

$3.28

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

Pressure And Temperature Sensor

707000995

$88.99

Screw M4 X 16

250000725

$3.49

Air Temperature Sensor

515176366

$19.99

Torx Truss PT K40 x 12

250001131

$2.11

LH Switch Housing

515178102

$284.99

Housing Plate

515177147

$20.99

Torx Screw

250000671

$1.01

Braided Sleeve

415130141

$55.99

Braided Sleeve

415130141

$55.99

Emergency Stop Switch

515177931

$76.49

Emergency Stop Switch Support

515177310

$9.19

Torx Screw #8-18

250000263

$1.04

4 Circuits Female Housing

515178177

$12.18

Elastic Stop Nut M6

232561434

$1.99

ECM Module | Includes 5000a to 5000a2

515179352

$589.99

Capacitor

515177272

$90.99

Rubber Stopper

515178430

$2.11

Module Support

515178159

$4.44

Hex. Flange Screw, Scotch Grip

207551634

$2.00

Flange Elastic Nut M5

233251434

$2.00
