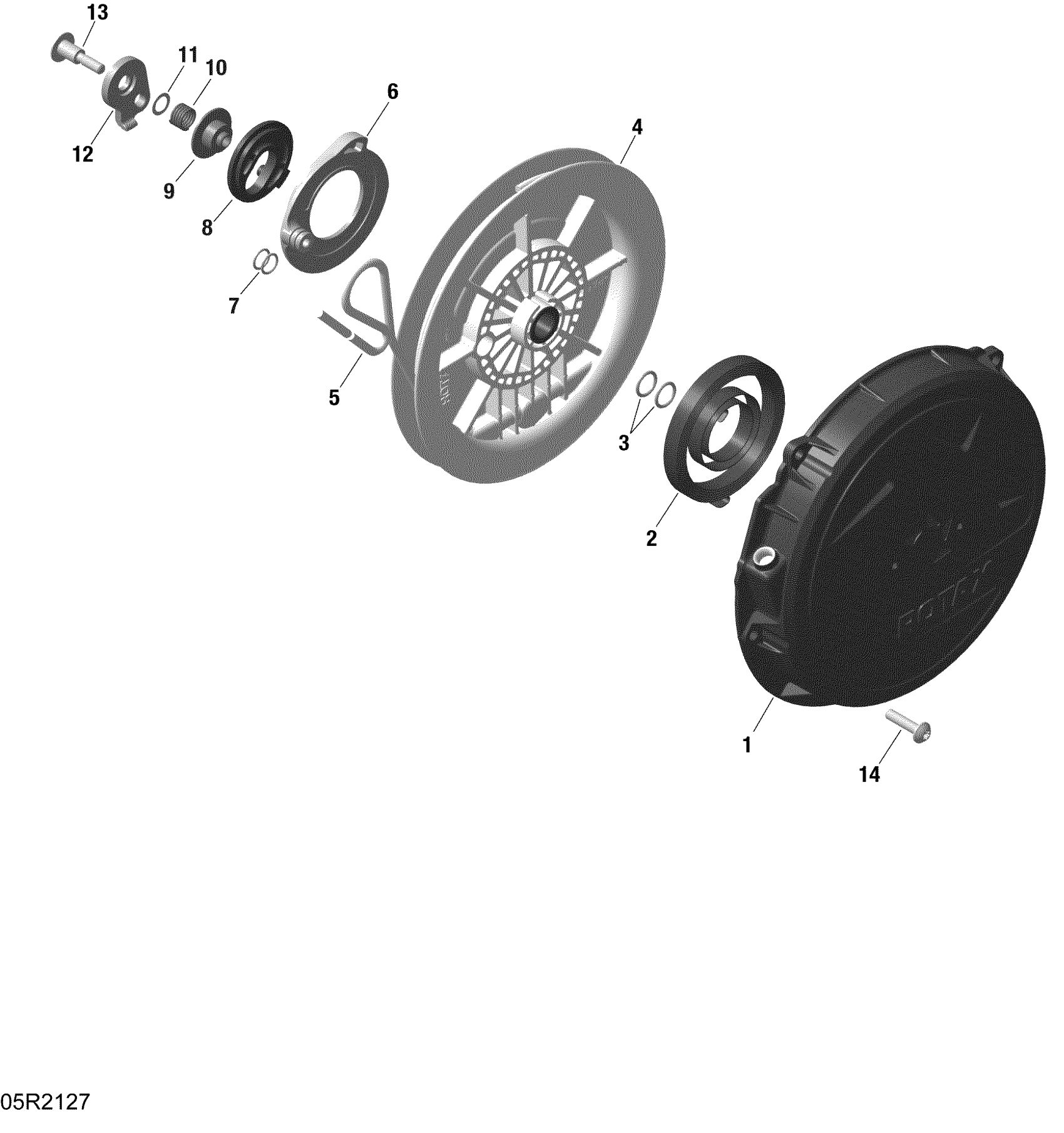

Ski-Doo BACKCOUNTRY 850 E-TEC - STD - 2022 Rotax - Rewind Starter Diagram

#

Description
Price

1

Starter Housing | Includes no. 1-12

420912121

$94.99

1

Rewind Starter

420893763

$227.99

2

Rewind Spring

420939115

$30.49

3

O-Ring

420950811

$4.44

4

Sheave

420852015

$41.49

5

Was 412500100 Rope-Starter

219704403

$158.99

6

Pawl

420852639

$33.99

7

O-Ring

420950951

$1.01

8

Pawl Lock | Includes no. 8-9

420852640

$6.99

9

Step Collar

420847928

$14.83

10

Compression Spring

420238962

$6.39

11

Thrust Washer

420227948

$2.00

12

Lock Lever

420852523

$8.57

13

Bearing Screw M6 X 12.5

420440502

$3.17

14

Plastite Screw

420940431

$7.65
