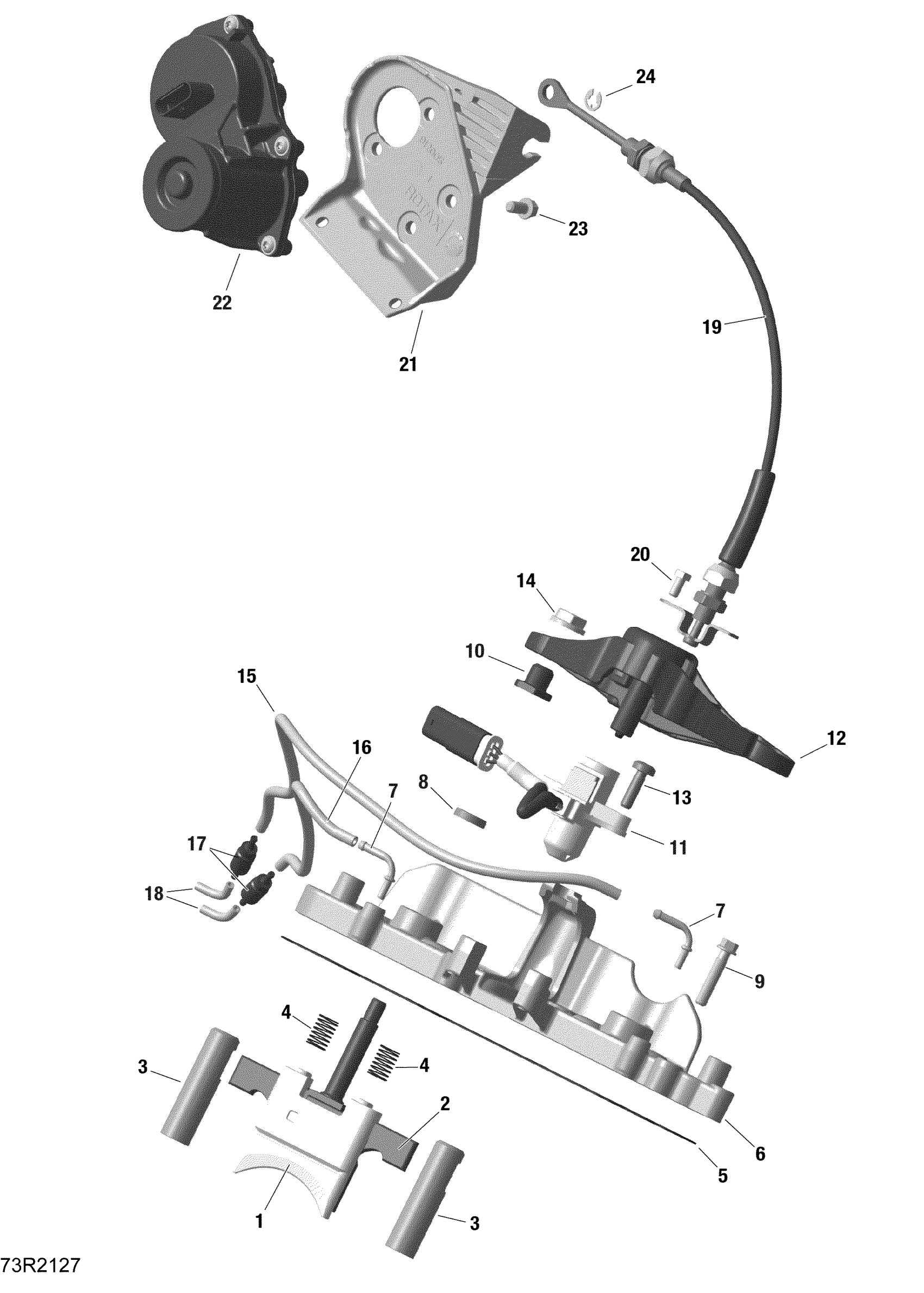

Ski-Doo BACKCOUNTRY 850 E-TEC - STD - 2022 Rotax - Rave Valve - NA - Shot Diagram

#

Description
Price

1

Exhaust Valve Upper

420954051

$21.99

2

Lower Exhaust Valve

420954054

$35.99

3

Exhaust Valve

420954041

$12.49

4

Spring

420238558

$5.39

5

Valve Rod Housing Gasket

420430037

$8.89

6

Valve Rod Housing | Includes no. 6-7

420954039

$94.49

7

Fitting 90D

420924053

$10.33

8

Oil Seal | Included in gasket kit

420950732

$9.27

9

Torx Flange Screw M6 X 30

420440647

$2.00

10

Collar Nut M8

420942331

$4.44

11

Valve Bar With Position Sensor | Includes no. 12-13

420855295

$114.99

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Torx Flange Screw M6 X 20

420441386

$2.11

14

Nut M12 X 1.5

420942190

$14.22

15

Oil Line 385MM

420201564

$7.41

16

Oil Line 385MM

420201564

$7.41

17

Check Valve Ass’y

420956515

$8.59

18

Oil Line 385MM

420201564

$7.41

19

Bowden Cable Ass'y

420997033

$121.49

20

Allen Screw M5 X 10

420240692

$1.69

21

Mounting Bracket

420912005

$20.99

22

Servo Motor Ass'y

420889432

$329.99

23

Hex. Flange Screw M6 X 12

420440149

$2.11

24

Retaining Ring

420945710

$0.50
