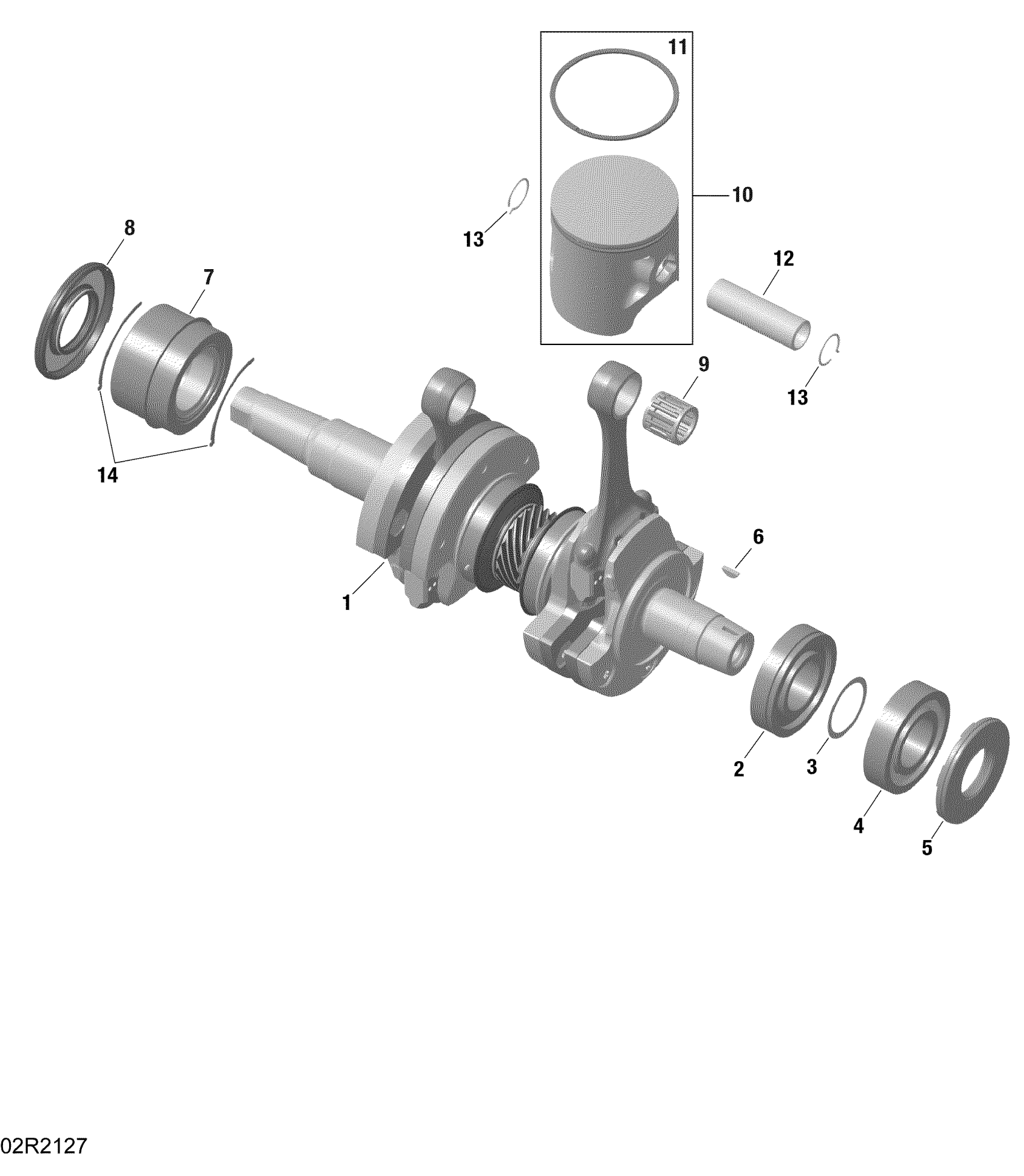

Ski-Doo BACKCOUNTRY 850 E-TEC - STD - 2022 Rotax - Crankshaft And Pistons Diagram

#

Description

Price

1

Crankshaft Ass'y This part replaces 420893787.

420893982

$2.00

2

Bearing

420832178

$121.49

3

Shim 35.4/43/0.3

420927401

$3.17

4

Ball Bearing 6207 | With drive pin

420832575

$52.99

5

Oil Seal

420831955

$27.49

6

Woodruff Key

420246015

$3.17

7

Roller Bearing

420832130

$104.99

8

Oil Seal | Included in gasket kit

420931284

$23.49

9

Needle Bearing

420832030

$30.49

10

Piston Ass'y | Includes no. 10-11

420893797

$265.99

11

Semi-Trapez Ring

420815416

$75.49

12

Piston Pin

420916480

$35.99

13

Piston Circlip | Included in gasket kit

420845467

$4.25

14

Shim Kit

420481410

$23.49

14

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable
