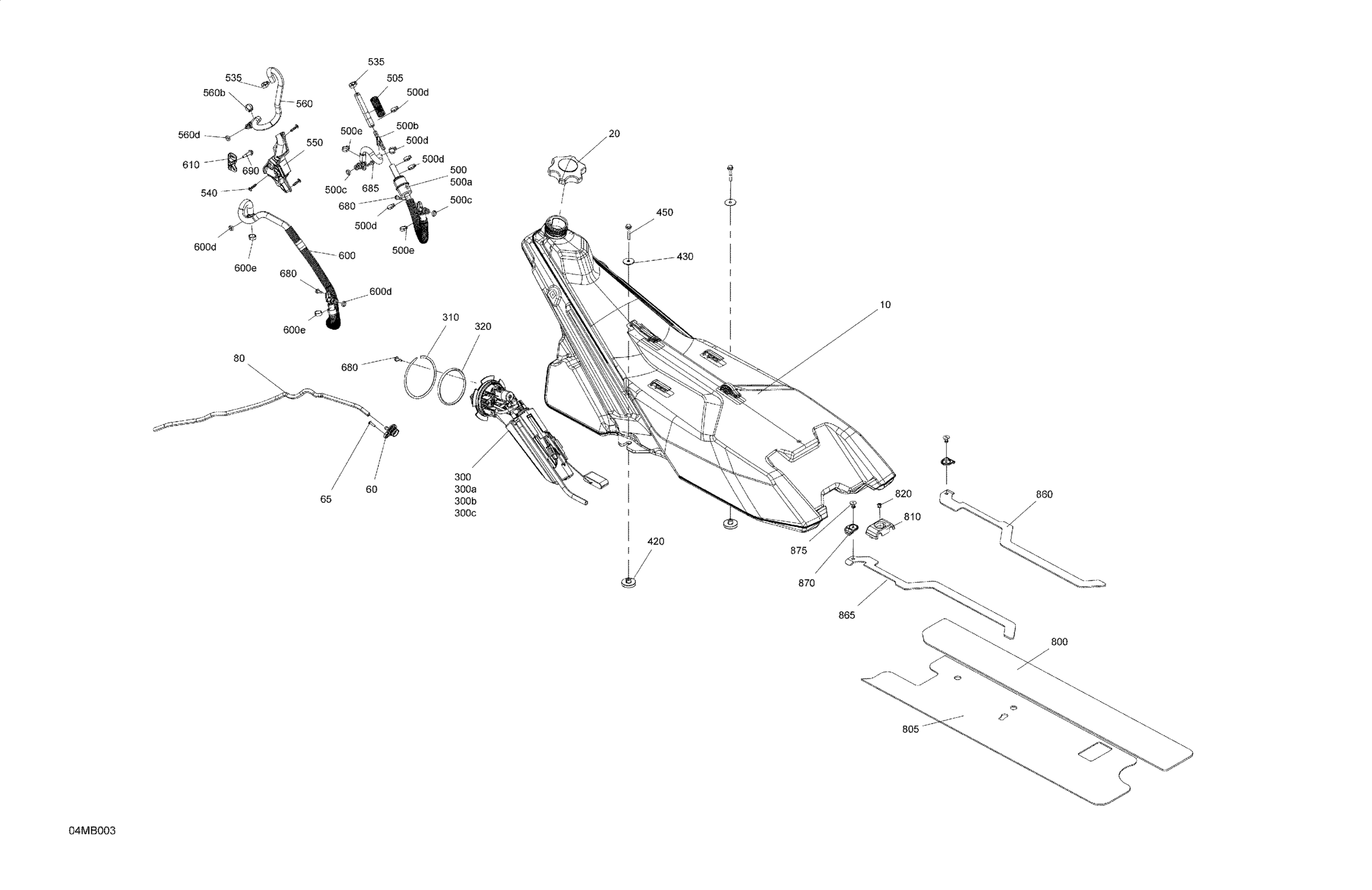

Ski-Doo 003 - BACKCOUNTRY 850 E-TEC - STD - North America, 2022 02- Engine - Fuel Diagram

Description

Price

Fuel Tank

415130432

$329.99

Fuel Tank Cap

513033860

$24.49

Check Valve

513033849

$36.99

Truss Torx Screw K40 X 16

250000918

$2.11

Polyurethane Hose 10000Mm Long

219704410

$56.99

300

Fuel Pump Ass'y | Includes 300 to 300b

861805526

$259.99

300a

Fuel Filter

415131068

Unavailable

300b

Fuel Level Sensor

415130726

$149.99

300c

Canister

415130507

$85.99

310

Circlip

513033798

$13.99

320

O-Ring

513033862

$23.99

420

Socket

513034007

$7.99

430

Washer | Not Shown

503193995

$4.54

450

Hex. Flange Screw M6 X 35

207663544

$0.90

500

Hose Ass'y | Includes 500 to 500e

513034021

$132.49

500a

Fuel Filter

513034047

$21.99

500b

Y Fitting

513033926

$2.79

500c

O-Ring

513033668

$10.99

500d

Oetiker Clamp

293650125

$3.29

500e

Crimp Clamp

293650053

$3.09

505

Tubing 16 Mm 1000Mm Long

219704408

$7.49

535

Crimp Clamp, 15.3-706R

293650047

$3.29

540

Torx Screw Truss Head K50X20 T20

250000760

$2.11

550

Hose Guide

513034051

$7.69

560

Fuel Tank Hose Ass'y | Includes 560 to 560d

513034055

$62.49

560b

Crimp Clamp

293650053

$3.09

560d

O-Ring

513033668

$10.99

600

Hose Ass'y | Includes 600 to 600e

513034063

$82.49

600d

O-Ring

513033668

$10.99

600e

Crimp Clamp

293650053

$3.09

610

Bracket

513033903

$1.49

680

Hex. Flange Screw M5 X 16

250000911

$0.85

685

Hex. Flange Screw M5 X 16

250000911

$0.85

690

Hex. Flange Screw M5 X 28 S.Grip

250001018

$1.46

800

Insulated Foam

513033913

$5.59

805

Insulated Foam

513033914

$16.99

810

Tank Guide

513033826

$2.29

820

Pop Rivet 3/16"

390402200

$0.35

860

Foam

513033915

$19.49

865

Foam

513033916

$4.69

870

Retainer Plate

513033917

$0.57

875

Pop Rivet 3/16" | DS 650 X

293150104

$1.09
