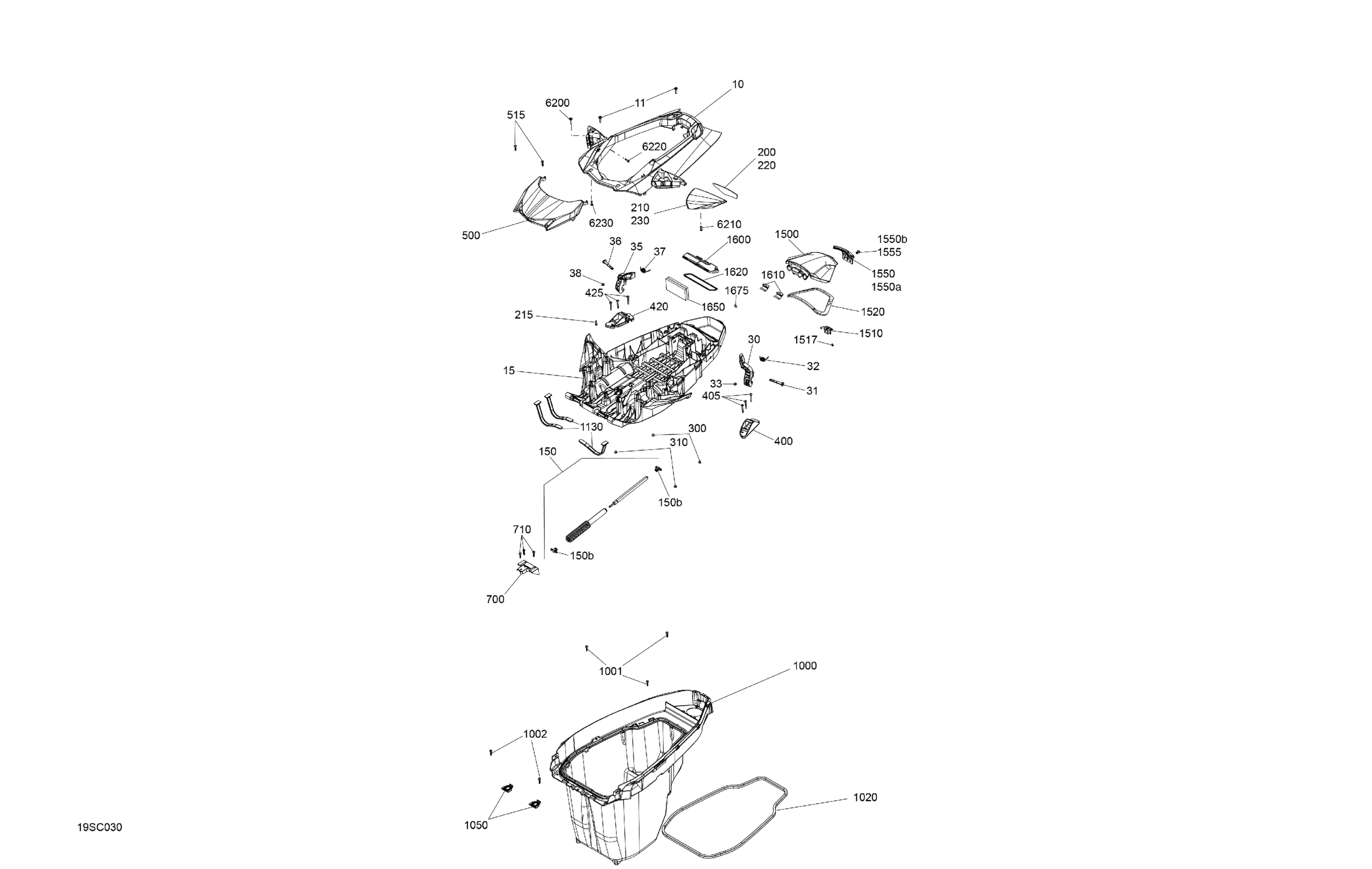

Sea-doo WAKE PRO 230, 2023 Body - Front Cover Diagram

#

Description
Price

10

Outer Skin

269502394

$204.99

11

Hexagonal Cap Screw M6 X35

250000399

$4.44

15

Inner Skin

269502555

$169.99

30

LH Latch

269502267

$30.99

31

Pin

269502536

$18.49

32

Latch Spring

269502268

$26.99

33

Rubber Bumper

293830005

$8.09

35

RH Latch

269502299

$30.99

36

Pin

269502536

$18.49

37

Latch Spring

269502268

$26.99

38

Rubber Bumper

293830005

$8.09

150

Shock Absorber Assembly | Includes 150 to 150b

269502426

$99.99

150b

Shock Absorber End Fitting

269501984

$11.49

200

RH Mirror Glass

269502276

$88.99

210

Coastal Gray, RH Mirror Cover

269502470

$55.99

215

Hex. Screw 10-14 X 7/8”

211000023

$3.59

220

LH Mirror Glass

269502274

$88.99

230

Coastal Gray, LH Mirror Cover

269502471

$55.99

300

Rubber Bumper

293830005

$8.09

310

Rubber Bumper

293830005

$8.09

400

LH Latch Base

269502385

$18.99

405

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

420

RH Latch Base

269502386

$18.99

425

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

500

Coastal Gray, Upper Hood

269502472

$119.99

515

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

700

Shock Base

269502282

$25.99

710

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1000

Bin Compartment

264000144

$124.99

1001

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1002

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1020

Gasket

293250478

$13.49

1050

Adjustment Hook

269502325

$10.99

1130

Strap

269502493

$14.30

1500

Glove Box Door

264000132

$65.99

1510

Glove Box Latch

264000133

$21.99

1517

Screw K40 X 10

250001119

$2.40

1520

Cover Gasket

293250717

$29.99

1550

Glove Box Trim

269502538

$19.49

1550a

Glove Box Trim

269502538

$19.49

1550b

Tuflok Plastic Rivet

293150230

$1.47

1555

Tuflok Plastic Rivet

293150230

$1.47

1600

Box Cover

264000158

$14.49

1610

Clip

269501718

$15.89

1620

Gasket

293250591

$17.99

1650

Sealed Compartment Foam

264000135

$12.99

1675

Vent Membrane

264000137

$12.99

6200

Hexagonal Cap Screw M6 X35

250000399

$4.44

6210

Hex. Screw 10-14 X 7/8”

211000023

$3.59

6220

Hex. Screw 10-14 X 7/8”

211000023

$3.59

6230

Hex. Screw 10-14 X 7/8”

211000023

$3.59
