07- Body - Hull

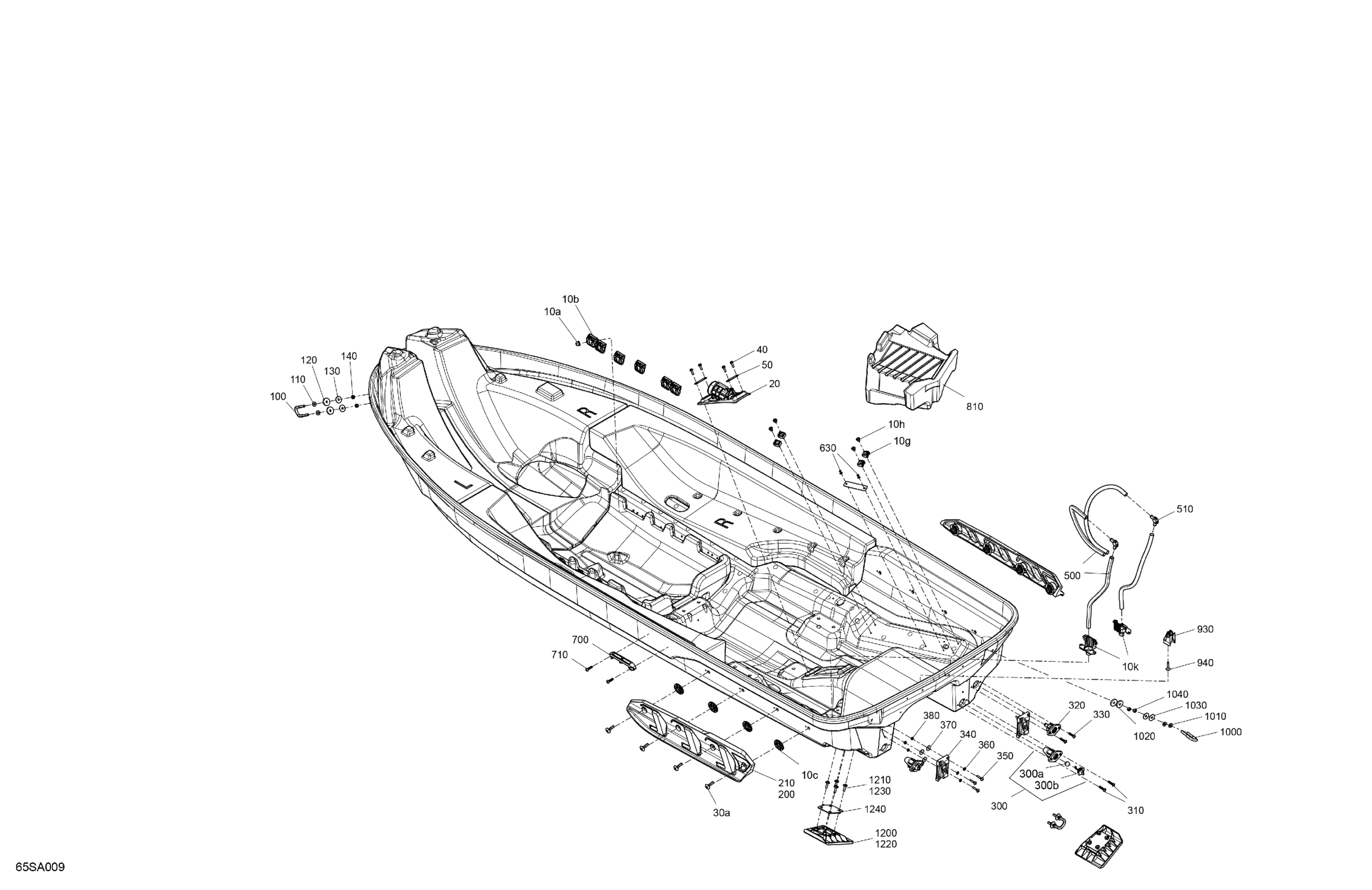

Sea-doo 002 - WAKE PRO 230, 2021 07- Body - Hull Diagram
#
10a
Rivet | Model-T3
293150067
$2.89
10b
Strap Retaining
270000933
$6.99
10c
Housing Nut M8 | Includes 400a1m to 400a1m1
293450387
$7.09
10g
Strap Anchor
270000854
$7.76
10h
Pop Rivet 3/16
293150186
$2.09
10k
Pump Support
269800956
$3.39
20
Hull Insert
293450384
$36.99
30a
Torx Head Screw M8 X 35
250001215
$5.92
40
Hex. Flange Screw M6.81 x 20
243162060
$3.72
50
Reinforcement
291004907
$2.89
100
U-Clamp
292000933
$59.49
110
Flat Washer M8.5 x 18
293050001
$3.07
120
Rubber Washer
293830037
$2.68
130
Flat Washer 8 mm, Stainless
250200175
$3.06
140
Hex. Elastic Nut M8 Brass
232581200
$2.22
200
RH Sponson
292001953
$54.99
210
LH Sponson
292001954
$65.99
300
Through Hull Fitting Ass'y | Includes 300 to 300f2
292002766
$15.49
300a
Floating Ball
293830080
$7.19
300b
Plug Ass'y | Includes 300f to 300f2
292002022
$14.49
310
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
320
Drain Neck Ass'y
292002153
$14.49
330
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
340
Ladder Attachment
292002113
$8.49
350
Truss Cone Torx Screw M6 X 30
250000924
$7.51
360
Stainless Flat Washer M6
234061600
$0.33
370
Flat Washer M6.6 X 22
250200022
$2.72
380
Elastic Stop Nut M6, Brass
232561200
$4.23
500
Hose
293830198
Unavailable
510
Fitting Elbow 90°
293710152
$18.49
630
Avdel Rivet 3/16"
293150037
$0.56
700
Lower Anchorage
291004769
$16.49
710
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
810
Cooler Float
292002011
$36.99
930
Strap Anchor
270000988
$10.28
940
Hexagonal Cap Screw M6 X35
250000399
$4.44
1000
U-Clamp
292000933
$59.49
1010
Flat Washer M8.5 x 18
293050001
$3.07
1020
Rubber Washer
293830037
$2.68
1030
Flat Washer 8 mm, Stainless
250200175
$3.06
1040
Hex. Elastic Nut M8 Brass
232581200
$2.22
1200
LH Trim Tab
292002102
$18.49
1210
Hexagonal Cap Screw M6 X 25
250000978
$4.44
1220
RH Trim Tab
292002103
$18.49
1230
Hexagonal Cap Screw M6 X 25
250000978
$4.44
1240
Gasket
277002171
$4.33
