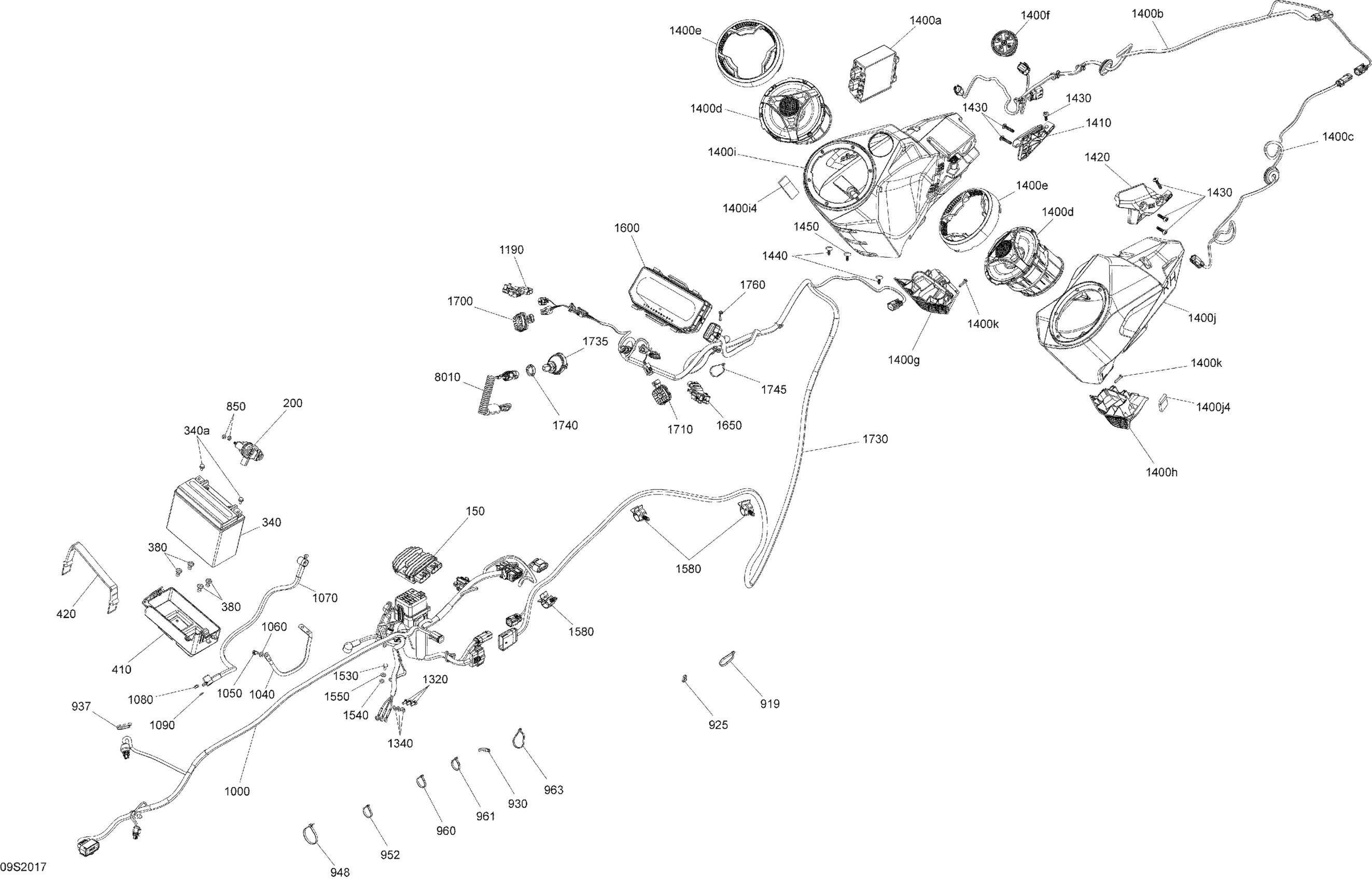

Sea-doo WAKE PRO 230, 2020 Electrical System Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

200

Starter Relay

278003012

$40.27

340

Battery 12 Volt 18AH

296000449

$142.45

340

Battery Ass'y, 18 Amperes | Brazil

515179099

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201279

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201282

Unavailable

340a

Battery Bolt Kit

250000282

$3.39

380

Pop Rivet 3/16"

293150123

$3.94

410

Battery Support

278003473

$26.09

420

Fuel Tank Strap

293850095

$16.39

850

Elastic Stop Nut M6, Brass

232561200

$4.03

919

Tie-Rap 180 mm

414115200

$0.10

925

Tie-Rap 180 mm

414115200

$0.10

930

Tie-Rap 180 mm

414115200

$0.10

937

Tie-Rap 180 mm

414115200

$0.10

948

Tie Wrap 368 mm

293750008

$0.97

952

Tie-Rap 180 mm

414115200

$0.10

960

Tie-Rap 180 mm

414115200

$0.10

961

Tie-Rap 180 mm

414115200

$0.10

963

Tie-Rap 180 mm

414115200

$0.10

1000

Main Wiring Harness

278003815

$285.79

1040

Ground Battery Cable

278003451

$35.79

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1060

Stainless Flat Washer M6

234061600

$0.28

1070

Starter Cable

278003369

$35.79

1080

Elastic Stop Nut M6, Brass

232561200

$4.03

1090

Stainless Flat Washer M6

234061600

$0.28

1190

LH Throttle Sensor

278002284

$108.18

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1340

Stainless Flat Washer M6

234061600

$0.28

1400a

Amplifier

278003464

$426.09

1400b

Amplifier Harness

278003497

$75.34

1400c

Speaker Harness

278003462

$18.63

1400d

Speaker

278003463

$142.51

1400e

Speaker Grille

278003466

$14.90

1400f

Audio Control

278003465

$353.70

1400g

Deep Black, LH Protective Grille

278003616

$8.37

1400h

Deep Black, RH Protective Grille

278003617

$8.37

1400i

LH Speaker Enclosure Ass'y | Includes 1400k to 1400k4

278003735

$300.72

1400i4

Stopper

278003860

$0.70

1400j

RH Speaker Enclosure Ass'y | Includes 1400m to 1400m4

278003736

$300.72

1400j4

Stopper

278003860

$0.70

1400k

Hex. Screw 10-14 X 7/8”

211000023

$3.34

1410

LH Bracket

278003489

$5.21

1420

RH Bracket

278003518

$5.21

1430

Screw Torx M6.81 X 30

250001007

$1.85

1440

Black, Dart

293730011

$0.91

1450

Black, Dart

293730011

$0.91

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1540

Elastic Stop Nut M6, Brass

232561200

$4.03

1550

Stainless Flat Washer M6

234061600

$0.28

1580

Retainer

278003564

$6.57

1600

Full Size Multifunction Mono Gauge

278003432

$729.07

1650

Throttle Position Sensor

278002283

$104.99

1700

LH Switch Keypad

278003726

$116.39

1710

RH Switch Keypad

278003474

$116.39

1730

Handlebar Wiring Harness

278003851

Unavailable

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

1740

Safety Nut (DESS Switch)

278002963

$3.12

1745

Tie-Rap 180 mm

414115200

$0.10

1760

Hex. Screw 10-14 X 7/8”

211000023

$3.34

8010

Safety Lanyard Ass'y, RFID

278003400

$67.13
