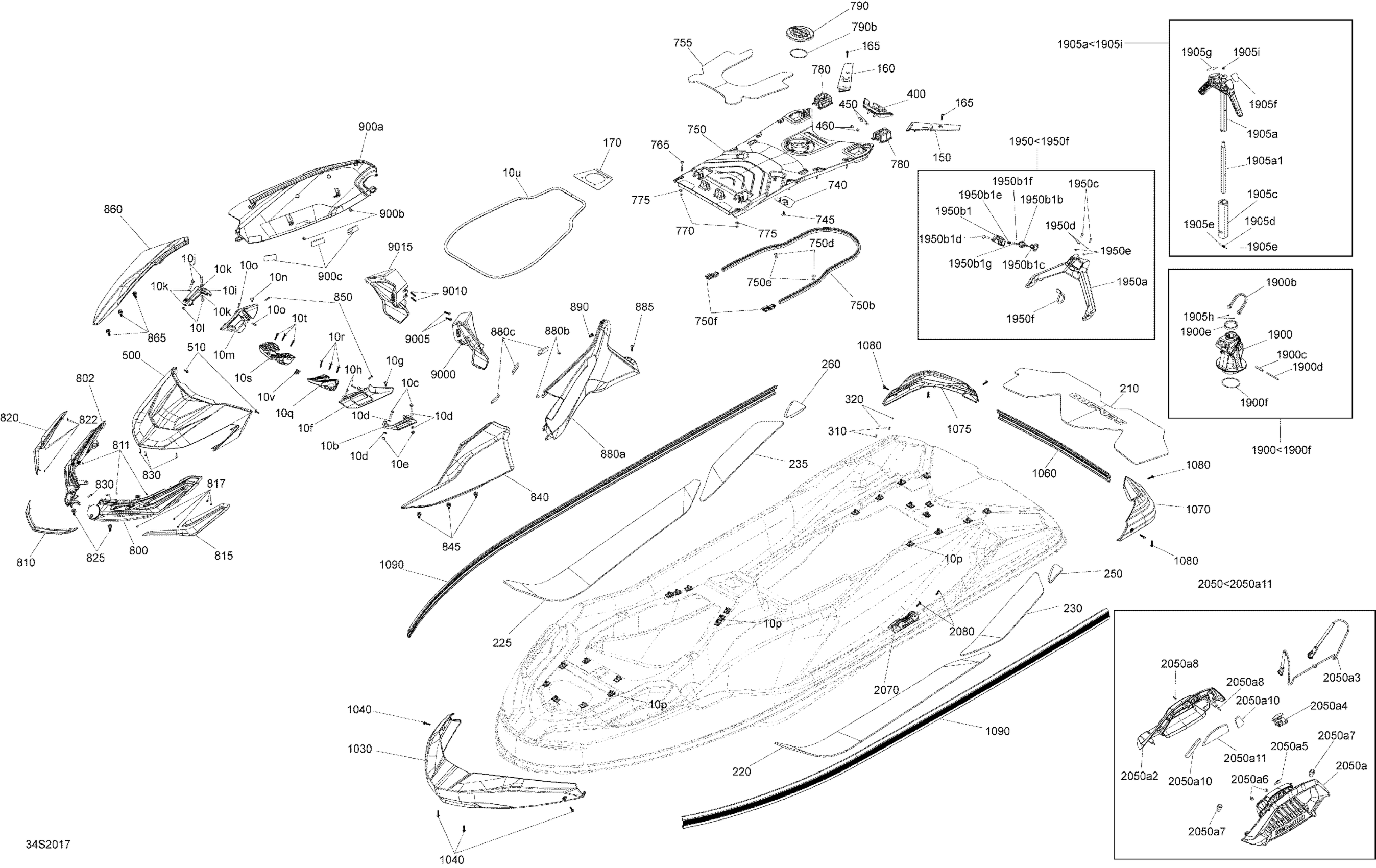

Sea-doo WAKE PRO 230, 2020 Body Diagram

LH Cleat

291004559

$6.37

Hex. Screw M8 X 35

207083560

$1.45

Stainless, Flat Washer 8 mm

234081600

$0.46

Hex. Elastic Nut M8 Brass

232581200

$1.29

LH Shell Cleat

291004661

$7.15

Black, Dart

293730011

$0.79

Hex. Screw 10-14 X 7/8”

211000023

$2.91

RH Cleat

291004720

$6.37

Hex. Screw M8 X 35

207083560

$1.45

Stainless, Flat Washer 8 mm

234081600

$0.46

Hex. Elastic Nut M8 Brass

232581200

$1.29

RH Shell Cleat

291004719

$7.15

Black, Dart

293730011

$0.79

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$1.87

LH Support

291004714

$7.15

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

RH Support

291004715

$7.87

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

Gasket

293250401

$8.80

Tie-Rap Mount

293750025

$1.15

LH Shim

291005176

$14.37

RH Shim

291005177

$11.78

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

Gasket

293250451

$19.47

Rear Plat-Form Carpet

291005078

$96.17

LH Front Anti Slip Mat

291005351

$27.27

RH Front Anti Slip Mat

291005350

$27.27

LH Rear Anti Slip Mat

291005353

$13.62

RH Rear Anti Slip Mat

291005352

$13.62

LH Anti-Skid Pad

291004516

$4.55

RH Anti-Skid Pad

291004517

$4.55

Rivet 1/8"

293150016

$0.29

Black, Snap Cap

293000014

$0.85

Cleat

291004597

$19.47

Flat Washer 8 mm, Stainless

234082600

$1.98

Hex. Elastic Nut M8 Brass

232581200

$1.29

Galactic Blue, Hood

291005195

$256.07

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

Hose Protector

291004941

$4.35

Black, Dart

293730011

$0.79

Access Cover Ass'y | Includes 750 to 750f

291005189

$207.66

Was 293200062 Seal

219704366

$61.72

Flat Washer M6, Stainless

234062600

$0.64

Elastic Stop Nut M6, Brass

232561200

$3.51

Seal

291004717

$9.04

Black, Mat Cover

291004668

$33.12

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

Flat Washer M6, Stainless

234062600

$0.64

Elastic Stop Nut M6, Brass

232561200

$3.51

Linq Bases Kit

295100858

$21.42

Access Cap Ass'y

291004481

$7.15

Not Available As Spare Part - Friction Washer

Unavailable

LH Front Hood Grille Ass'y

291005911

$23.37

RH Front Hood Grille Ass'y

291005913

$23.37

Black, Trim Front

291004814

$22.07

Push Nut | Not shown

211100002

$0.83

Neon Yellow, LH Trim

291005199

$26.12

Push Nut | Not shown

211100002

$0.83

Neon Yellow, RH Trim

291005198

$26.12

Push Nut | Not shown

211100002

$0.83

Dard

293730071

$0.90

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Deep Black, LH Front Body Panel

291004776

$50.02

Dard

293730071

$0.90

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Deep Black, RH Front Body Panel

291004677

$50.02

Dard

293730071

$0.90

Deep Black, LH Central Body Panel

291004780

$88.37

Rubber Bumper

293830005

$5.33

Stopper

278003618

$0.72

Screw Torx M6.81 X 30

250001007

$1.61

Tuflok Plastic Rivet

293150230

$1.21

Deep Black, RH Central Body Panel

291004782

$88.37

Rubber Bumper

293830005

$5.33

Stopper

278003618

$0.72

Front Bumper

291004452

$62.37

Screw Torx M6.81 X 30

250001007

$1.61

Bumper 2775±25mm

291004468

$113.07

LH Rear Bumper

291004465

$24.02

RH Rear Bumper

291004466

$24.02

Screw Torx M6.81 X 30

250001007

$1.61

Bumper 2775±25mm

291004468

$113.07

Pylon Base Assembly | Includes 1900 to 1900b

291004994

$222.27

Replacing Kit for Pylon Strap

295100740

$21.42

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Ski Handles

291005230

$286.12

Not Available As Spare Part - Friction Washer

Unavailable

Aluminum Post

291004948

$212.28

Ball Spring

269501651

$9.43

Ball 1/4"

293350062

$2.11

Warning Decal Ski Post

219905699

$10.22

Warning Decal Ski Post

219905700

$10.22

Type "U" Metallic Drive Screw

293150167

$1.46

Bumper Plug, Black

291001519

$4.28

Wishbone Support Ass'y | Includes 1950 to 1950g

291005180

$72.12

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

RH Lever

708200374

$3.25

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Elastic Stop Nut 5 mm

232551200

$1.22

Flat Washer | XT

211200035

$0.46

Socket Head Screw M5 X 16

205451660

$1.08

Flat Washer M5, Stainless

234051600

$0.64

Elastic Stop Nut 5 mm

232551200

$1.22

Strap

273000344

$12.58

Wakeboard Support Kit

295100838

$249.20

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Elastic Rope Ass'y

291002979

$36.89

Latch

291002980

$22.72

Warning WAKE

219903228

Unavailable

Rubber Bumper

293830005

$5.33

Rubber Buffer

293830119

$17.66

Flange Torx Screw K40 X 16

250000287

$1.74

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Upper Anchorage

291004675

$13.62

Screw Torx M6.81 X 30

250001007

$1.61

LH Side Grille

291004455

$7.29

Screw Torx M6.81 X 30

250001007

$1.61

RH Side Grille

291004456

$7.29

Screw Torx M6.81 X 30

250001007

$1.61
