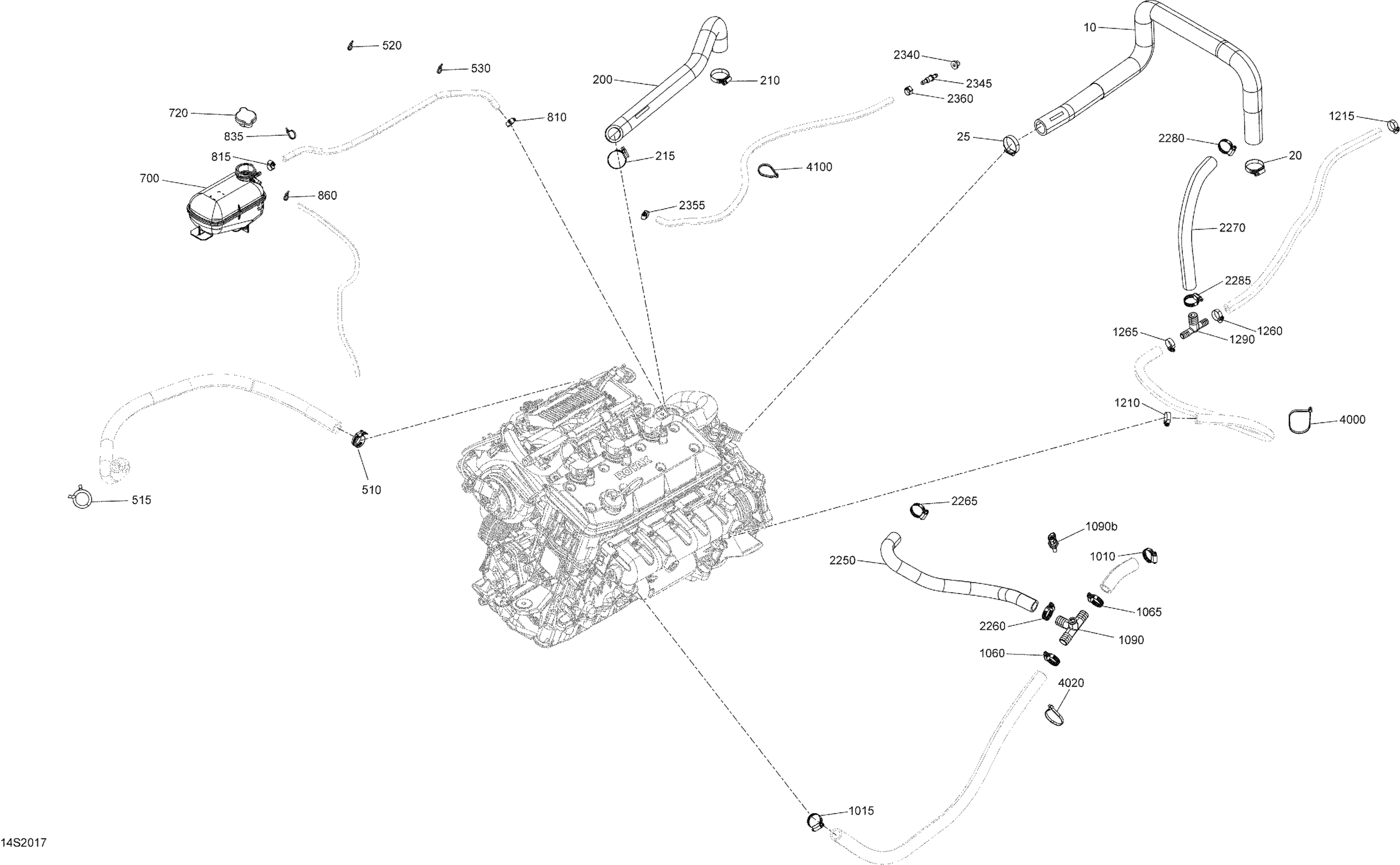

Sea-doo WAKE PRO 230, 2020 Cooling System Diagram

#

Description
Price

10

Hose Riding Plate LH

276000462

$59.67

20

Norma Clamp

293650245

$13.51

25

Norma Clamp

293650245

$13.51

200

Hose Riding Plate RH

276000487

$52.21

210

Norma Clamp

293650245

$13.51

215

Norma Clamp

293650245

$13.51

510

Tridon Gear Clamp

293650019

$5.52

515

Spring Clamp

293650115

$2.82

520

Tie Wrap 94 mm | 4X4

293750001

$0.96

530

Tie Wrap 94 mm | 4X4

293750001

$0.96

700

Coolant Tank

276000419

$108.18

720

Pressure Cap | Includes 720 to 720a

276000100

$23.85

810

Tridon Gear Clamp

293650170

$2.00

815

Tridon Gear Clamp

293650170

$2.00

835

Tie-Rap 180 mm

414115200

$0.10

860

Tie Wrap 94 mm | 4X4

293750001

$0.96

1010

Tridon Gear Clamp

293650051

$4.15

1015

Tridon Gear Clamp

293650051

$4.15

1060

Tridon Gear Clamp

293650051

$4.15

1065

Tridon Gear Clamp

293650051

$4.15

1090<1090b

Temperature Sensor Fitting Ass'y | Includes 1090 to 1090b

293710164

$54.45

1090b

Temperature Sensor

278002895

$36.54

1210

Tridon Gear Clamp

293650172

$3.07

1215

Tridon Gear Clamp

293650172

$3.07

1260

Tridon Gear Clamp

293650172

$3.07

1265

Tridon Gear Clamp

293650172

$3.07

1290

T-Fitting

293710132

$10.88

2250

Formed Hose

276000422

$22.36

2260

Tridon Gear Clamp

293650051

$4.15

2265

Tridon Gear Clamp

293650051

$4.15

2270

Formed Hose | Includes 2270 to 2270a This part replaces 276000461.

276000423

$30.57

2280

Tridon Gear Clamp

293650051

$4.15

2285

Tridon Gear Clamp

293650051

$4.15

2340

Grommet

293720029

$1.30

2345

Male Connector

414518500

$4.01

2355

Tridon Gear Clamp

293650170

$2.00

2360

Oetiker Gear Clamp

293650025

$2.82

4000

Tie Wrap 368 mm

293750008

$0.97

4020

Tie-Rap 180 mm

414115200

$0.10

4100

Tie-Rap 180 mm

414115200

$0.10
