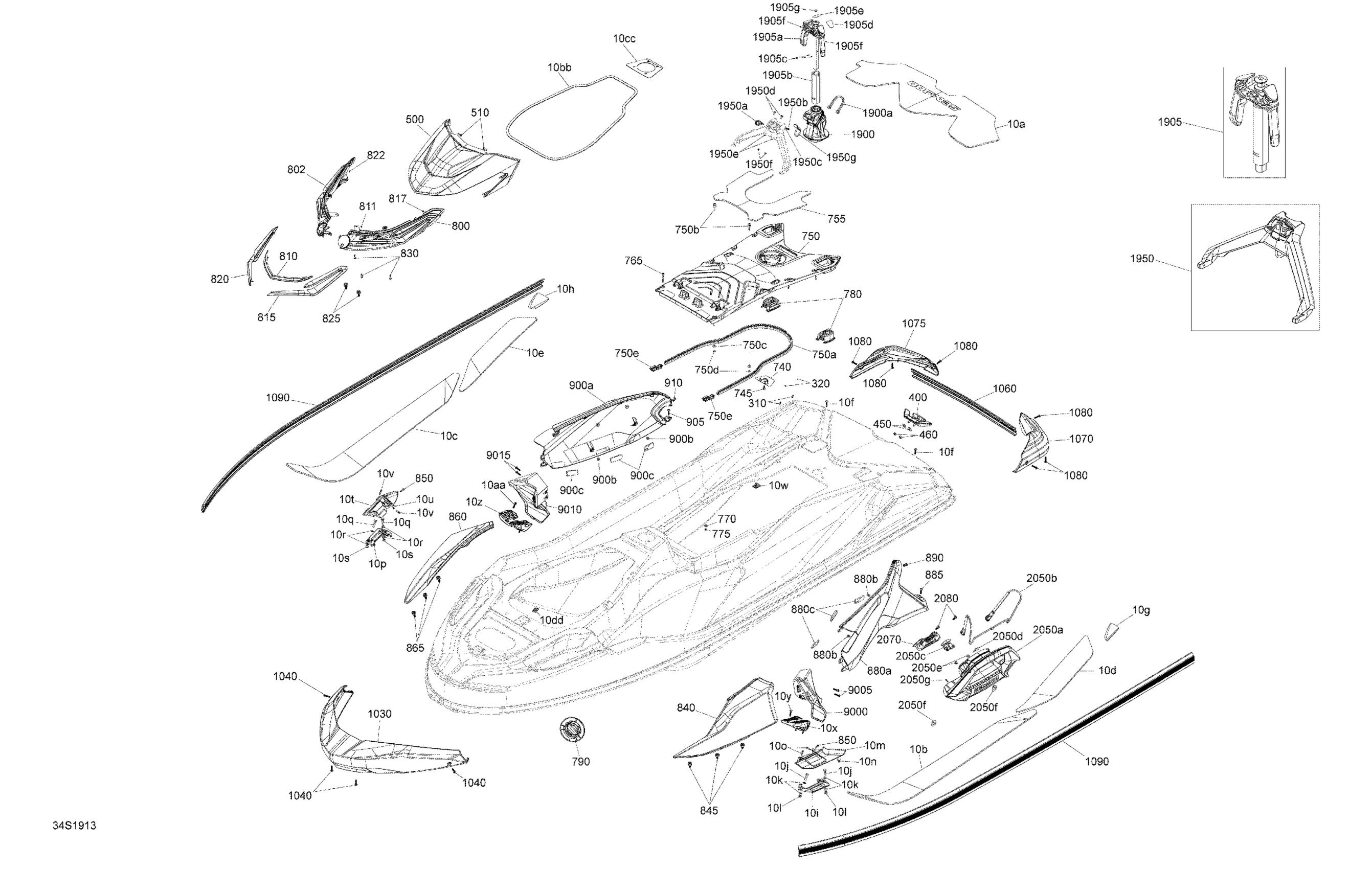

Sea-doo WAKE PRO 230, 2019 Body Diagram

#

Description
Price

10a

Rear Plat-Form Carpet

291005078

$110.42

10b

Anti Slip Mat FRT LH

291005044

$38.78

10c

Anti Slip Mat FRT RH

291005045

$38.78

10d

LH Rear Carpet

291004514

$15.64

10e

RH Rear Carpet

291004515

$15.64

10f

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

10g

LH Anti-Skid Pad

291004516

$5.22

10h

RH Anti-Skid Pad

291004517

$5.22

10i

LH Cleat

291004559

$7.31

10j

Hex. Screw M8 X 35

207083560

$1.40

10k

Stainless, Flat Washer 8 mm

234081600

$0.52

10l

Hex. Elastic Nut M8 Brass

232581200

$1.48

10m

LH Shell Cleat

291004661

$8.21

10n

Black, Dart

293730011

$0.91

10o

Hex. Screw 10-14 X 7/8”

211000023

$3.34

10p

RH Cleat

291004720

$7.31

10q

Hex. Screw M8 X 35

207083560

$1.40

10r

Stainless, Flat Washer 8 mm

234081600

$0.52

10s

Hex. Elastic Nut M8 Brass

232581200

$1.48

10t

RH Shell Cleat

291004719

$8.21

10u

Black, Dart

293730011

$0.91

10v

Hex. Screw 10-14 X 7/8”

211000023

$3.34

10w

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.15

10x

LH Support

291004714

$8.21

10y

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

10z

RH Support

291004715

$9.03

10aa

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

10bb

Gasket

293250401

$10.10

10cc

Gasket

293250451

$22.36

10dd

Tie-Rap Mount

293750025

$0.99

310

Rivet 1/8"

293150016

$0.33

320

Black, Snap Cap

293000014

$0.97

400

Cleat

291004597

$22.36

450

Flat Washer 8 mm, Stainless

234082600

$2.27

460

Hex. Elastic Nut M8 Brass

232581200

$1.48

500

Teal Blue Metallic, Hood

291004793

$305.19

510

Hex. Screw 10-14 X 7/8”

211001087

Unavailable

740

Hose Protector

291004941

$4.22

745

Black, Dart

293730011

$0.91

750

Access Cover Ass'y | Includes 750 to 750f

291005189

$197.73

750a

Was 293200062 Seal

219704366

$70.87

750b

STUD - Call your local BRP dealership This part replaces 291004611.

291004611

Unavailable

750c

Flat Washer M6, Stainless

234062600

$0.73

750d

Elastic Stop Nut M6, Brass

232561200

$4.03

750e

Seal

291004717

$10.37

755

Black, Mat Cover

291004668

$38.03

765

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

770

Flat Washer M6, Stainless

234062600

$0.73

775

Elastic Stop Nut M6, Brass

232561200

$4.03

780

Cargo Base

291005157

Unavailable

790

Access Cap Ass'y

291004481

$8.21

800

LH Front Hood Grille Ass'y

291005911

$26.84

802

RH Front Hood Grille Ass'y

291005913

$26.84

810

Black, Trim Front

291004814

$25.34

811

Push Nut | Not shown

211100002

$0.96

815

Trim LH B-311

291004551

$60.42

817

Push Nut | Not shown

211100002

$0.96

820

Trim RH B-311

291004480

$60.42

822

Push Nut | Not shown

211100002

$0.96

825

Dard

293730071

$1.03

830

Hex. Screw 10-14 X 7/8”

211000023

$3.34

840

Deep Black, LH Front Body Panel

291004776

$57.43

845

Dard

293730071

$1.03

850

Hex. Screw 10-14 X 7/8”

211000023

$3.34

860

Deep Black, RH Front Body Panel

291004677

$57.43

865

Dard

293730071

$1.03

880a

Deep Black, LH Central Body Panel

291004780

$101.46

880b

Rubber Bumper

293830005

$6.12

880c

Stopper

278003618

$0.70

885

Screw Torx M6.81 X 30

250001007

$1.85

890

Tuflok Plastic Rivet

293150230

$1.39

900a

Deep Black, RH Central Body Panel

291004782

$101.46

900b

Rubber Bumper

293830005

$6.12

900c

Stopper

278003618

$0.70

905

Screw Torx M6.81 X 30

250001007

$1.85

910

Tuflok Plastic Rivet

293150230

$1.39

1030

Front Bumper

291004452

$71.61

1040

Screw Torx M6.81 X 30

250001007

$1.85

1060

Bumper 2775±25mm

291004468

$129.82

1070

LH Rear Bumper

291004465

$27.58

1075

RH Rear Bumper

291004466

$27.58

1080

Screw Torx M6.81 X 30

250001007

$1.85

1090

Bumper 2775±25mm

291004468

$129.82

1900

Pylon Base Assembly | Includes 1900 to 1900b

291004994

$255.19

1900a

Replacing Kit for Pylon Strap

295100740

$24.60

1905

Ski Handle and Pylon Ass'y | Includes 1905 TO 1905g

291004947

$271.61

1905a

Molded Handle

291004766

$182.81

1905b

Aluminum Post

291004948

$202.21

1905c

Ball 1/4"

293350062

$2.42

1905c

Ball Spring

269501651

$10.82

1905d

Warning Decal Ski Post

219905276

Unavailable

1905e

Warning Decal Ski Post

219905277

Unavailable

1905f

Type "U" Metallic Drive Screw

293150167

$1.67

1905g

Bumper Plug, Black

291001519

$4.91

1950

Wishbone Support Ass'y | Includes 1950 to 1950g

291005180

$82.81

1950a

RH Lever

708200374

$3.73

1950b

Elastic Stop Nut 5 mm

232551200

$1.40

1950c

Flat Washer | XT

211200035

$0.52

1950d

Socket Head Screw M5 X 16

205451660

$1.04

1950e

Flat Washer M5, Stainless

234051600

$0.73

1950f

Elastic Stop Nut 5 mm

232551200

$1.40

1950g

Strap

273000344

$14.45

2050a

Board Support Ass'y | Includes 2050 TO 2050f

295100735

$218.63

2050b

Elastic Rope Ass'y

291002979

$35.04

2050c

Latch

291002980

$26.09

2050d

Warning WAKE

219903228

Unavailable

2050e

Rubber Bumper

293830005

$6.12

2050f

Rubber Buffer

293830119

$16.39

2050g

Flange Torx Screw K40 X 16

250000287

$2.00

2070

Upper Anchorage

291004675

$15.64

2080

Screw Torx M6.81 X 30

250001007

$1.85

9000

LH Side Grille

291004455

$8.37

9005

Screw Torx M6.81 X 30

250001007

$1.85

9010

RH Side Grille

291004456

$8.37

9015

Screw Torx M6.81 X 30

250001007

$1.85
