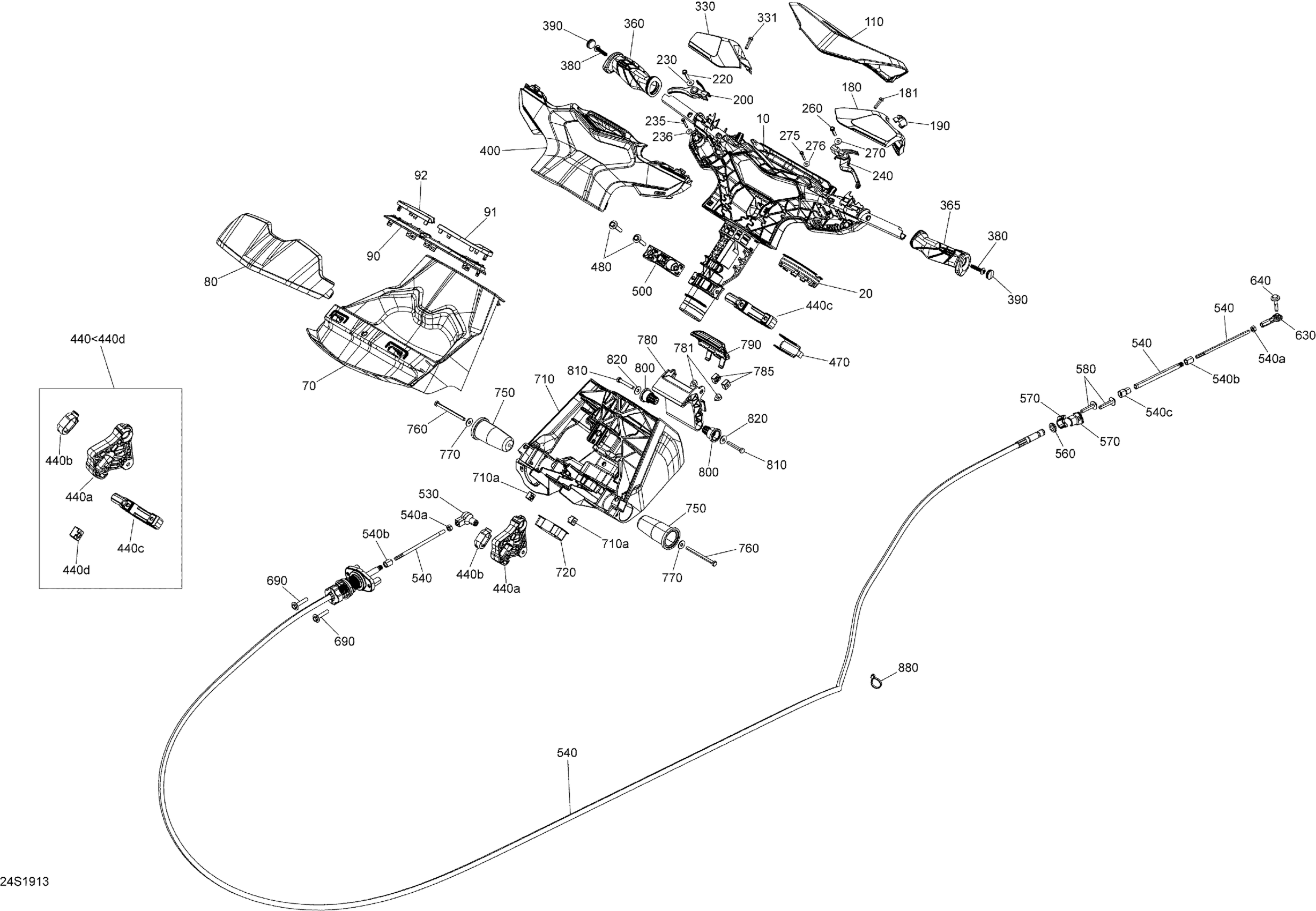

Sea-doo WAKE PRO 230, 2019 Steering Diagram

#

Description
Price

10

Steering Column

277001979

$163.12

20

Wear Ring

277001874

$9.74

70

Cluster Support | Built Before Oct 2020

277001980

$48.07

80

Deep Black, Cluster Support Cover | Built Before Oct 2020

277001981

$20.77

90

Speed Indicator Bezel | Built Before Oct 2020

705011286

$6.25

91

Dragon Red, Trim Gauge LH

705012354

$4.62

92

Dragon Red, Trim Gauge RH

705012355

$4.62

110

Deep Black, Steering Pad

277001988

$15.22

180

LH Cover

277002233

$13.62

181

Hex. Screw 10-14 X 7/8”

211000023

$2.91

190

Red Button Switch

277002327

$7.46

200

Throttle Handle

277001944

$30.52

220

Hex. Screw 10-14 X 7/8”

211000023

$2.91

230

Flat Washer 5 mm, Stainless

234052600

$0.64

235

Hex. Flange Screw K40 X 25

241142560

$2.17

236

Flat Washer 4 mm, Stainless

234042600

$0.92

240

Reverse Handle

277001945

$34.42

260

Hex. Screw 10-14 X 7/8”

211000023

$2.91

270

Flat Washer 5 mm, Stainless

234052600

$0.64

275

Hex. Flange Screw K40 X 25

241142560

$2.17

276

Flat Washer 4 mm, Stainless

234042600

$0.92

330

RH Cover

277002235

$12.60

331

Hex. Screw 10-14 X 7/8”

211000023

$2.91

360

Can-Am Red, RH Handle Grip

277002014

$15.57

365

Can-Am Red, LH Handle Grip

277002015

$15.57

380

Screw Torx M6.81 X 30

250001007

$1.61

390

Black, Cap

277000203

$7.48

400

Steering Cover

277001985

$53.27

440<440d

Steering Arm Kit

295501183

$7.01

440a

Not Available As Spare Part - Friction Washer

Unavailable

440b

Not Available As Spare Part - Friction Washer

Unavailable

440c

Not Available As Spare Part - Friction Washer

Unavailable

440d

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

470

Spacer

277001654

$11.40

480

Hexagonal Cap Screw M6 X35

250000399

$3.61

500

C Clamp

277002085

$7.19

540b

Wiper Rod

277001582

$8.83

540c

End Piece

277001583

$11.14

560

Rubber Washer

293830063

$1.51

570

Ring Halves

277001856

$9.85

580

Hexagonal Cap Screw M6 X35

250000399

$3.61

630

Ball Joint

277000775

$40.27

640

Hex Sems Screw M6X35

250000970

$1.74

690

Hexagonal Cap Screw M6 X35

250000399

$3.61

710>710a

Steering Support Ass'y | Built Before Oct 2020

277001993

$110.74

710a

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

720

Wear Ring

277002318

$12.43

750

Steering Support Pivot

277001605

$14.92

760

Hex Screw M6 X 80

207168060

$6.55

770

Flat Washer M6, Stainless

234062600

$0.64

780

Adjustment Handle

277001996

$7.05

781

Rubber Bumper

293830005

$5.33

785

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

790

Lock

277002010

$5.04

800

Pivot

277001652

$12.43

810

Hex. Screw M6 X 40

207064060

$1.40

820

Flat Washer M6, Stainless

234062600

$0.64

880

Tie-Rap 180 mm

414115200

$0.09
