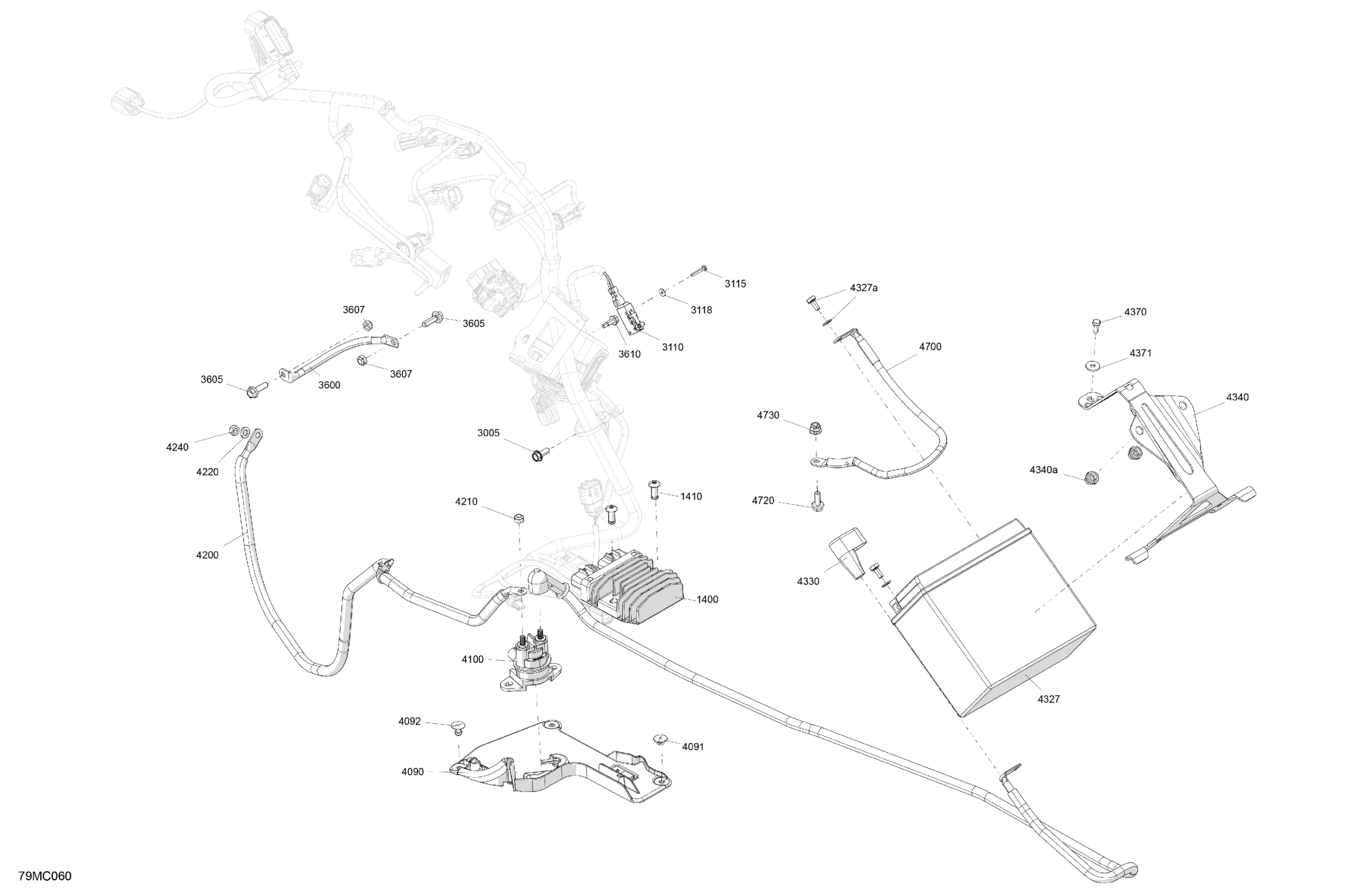

Ski-Doo TUNDRA SPORT 600 ACE - 2023 Electric - Lower Section Diagram

Description

Price

1400

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

1410

Monobolt Rivet 6.4

293150182

$3.09

3005

Hex. Flange Screw M6 X 16

250001062

$1.57

3110

Switch Ass'y

515177460

$46.99

3115

Hex Screw M3 X 20

207132044

$2.11

3118

Flat Washer M3, Stainless

234032600

$0.55

3600

Ground Wire

515178338

$16.49

3605

Hex. Flange Screw M6 X 20

207662044

$2.00

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3610

Hex. Flange Screw M5 X 16

250000911

$0.85

4090

Starter Relay Support

515178244

$3.49

4091

Pop Rivet 3/16"

293150103

$0.55

4092

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4100

Starter Relay

278003012

$42.49

4200

Battery Wire

515178336

$47.99

4210

Elastic Stop Nut M6

232561434

$1.99

4220

Flat Washer 6 mm

234061410

$1.36

4240

Elastic Stop Nut M6

232561434

$1.99

4327

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

4327a

Battery Bolt Kit

250000282

$7.29

4330

Protector Cap | STD

710001817

$11.12

4340

Battery Strip | Includes 4340 to 4340a

515177870

$19.99

4340a

Insert

293450275

$12.99

4370

Hex. Screw M5 X 12

207151244

$0.90

4371

Washer | DS 650 X

391301600

$0.48

4700

Ground Wire

515178155

$26.99

4720

Hex. Flange Screw M6 X 16

207661644

$0.74

4730

Elastic Flange Nut M6 X 1.0

233261416

$2.11
