Description

Price

10

Chassis Tunnel Module 146 | Includes 10 to 10a39

415130869

$3,299.97

10c

Deep Black, RH Footrest Reinforcement

518332803

$79.97

10g

Deep Black, LH Footrest Reinforcement

518332802

$16.89

10h

Reinforcement Plate

518326647

$4.34

10j

LH Rear Suspension Support

518334390

$43.05

10k

RH Rear Suspension Support

518334391

$96.12

10m

Stirrup Reinforcement

518334507

$18.43

10n

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10p

RH Roller

518328451

$180.74

10q

LH Roller

518328452

$180.74

10r

RH Central Tunnel Reinforcement

518331564

$33.05

10s

LH Central Tunnel Reinforcement

518331565

$33.05

10t

LH Reinforcement Plate

518329088

$3.08

10u

RH Reinforcement Plate

518329089

$4.22

10v

Radiator Tunnel 146

518334489

$692.28

10x

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10aa

Rear Cap

518328990

$20.74

10ac

RH Footrest

518334509

$20.74

10ad

Black, Plug

293730052

$6.37

10af

LH Foot Protector

518331559

$23.82

10aj

Rivet Avibulb 3/16

293150203

$0.29

10an

Henrob Rivet

293150245

$1.65

10aq

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10ar

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10as

Rivet Ornit 6,5 X 16.5

293150267

$1.94

10at

Ornit Rivet 6,5 X 14.5

293150266

$1.94

20

Black, Plug

293730052

$6.37

50

Heat Shield

518331823

$7.42

55

Insert

293450275

$9.89

60

Torx Head Screw M6 X 16

250000717

$1.74

170

Insert M5 - 0.8

293450267

$4.22

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

790

Insert

293450278

$4.09

1300

Black, Hitch Bumper Black 146

518329797

$129.99

1400

Full Moon Dart 8 mm

293730041

$2.12

1405

Full Moon Dart 10 mm

293730059

$4.42

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23

3040

Dart

293730079

$1.92

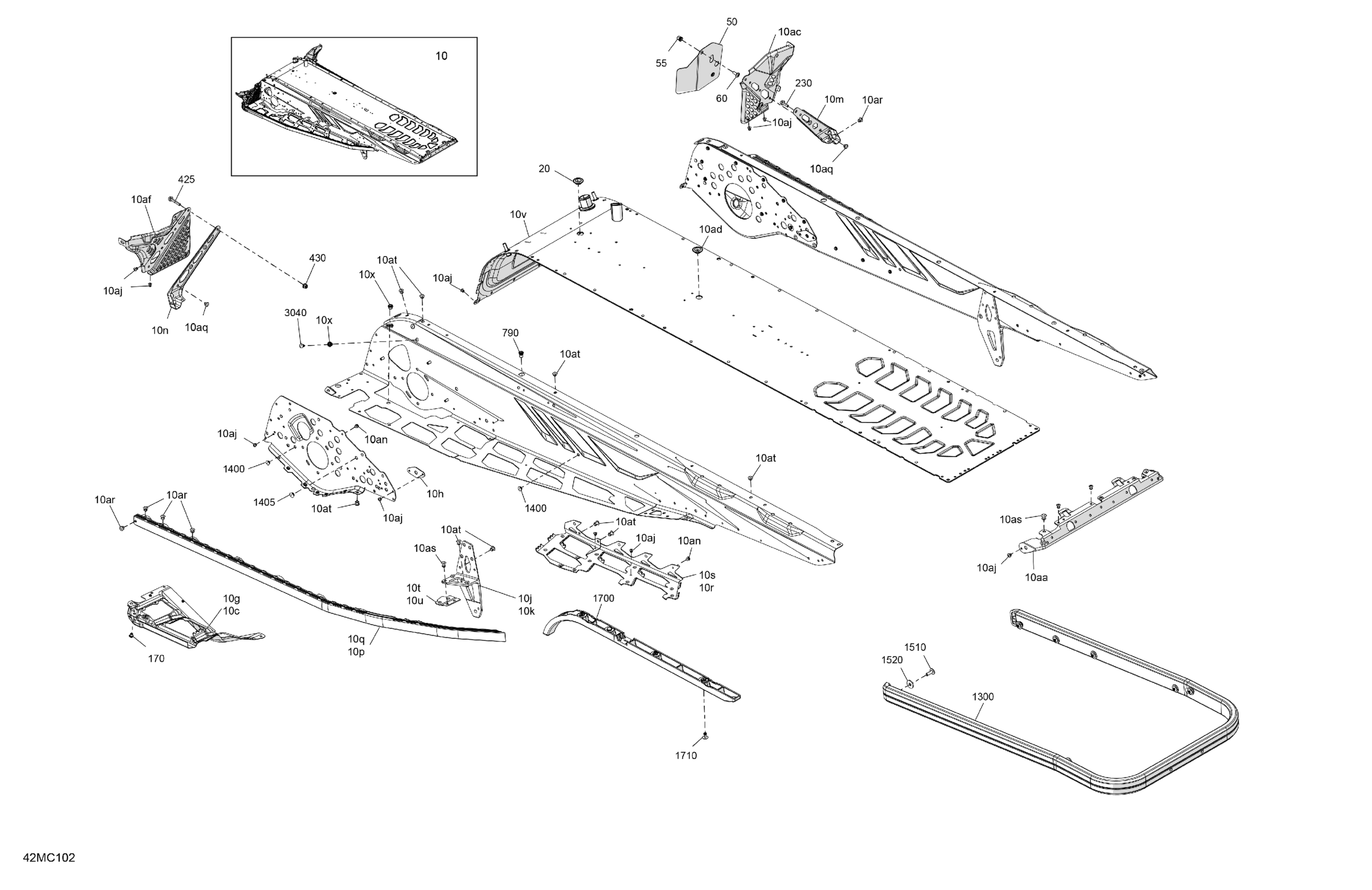

Ski-Doo TUNDRA SPORT 600 ACE - 2023 Frame - System - Rear Section Diagram

Chassis Tunnel Module 146 | Includes 10 to 10a39

Deep Black, RH Footrest Reinforcement

Deep Black, LH Footrest Reinforcement

Reinforcement Plate

LH Rear Suspension Support

RH Rear Suspension Support

Stirrup Reinforcement

Deep Black, LH Chassis Reinforcement

RH Roller

LH Roller

RH Central Tunnel Reinforcement

LH Central Tunnel Reinforcement

LH Reinforcement Plate

RH Reinforcement Plate

Radiator Tunnel 146

Insert Half Hex Body M6 x 1.0

Rear Cap

RH Footrest

Black, Plug

LH Foot Protector

Rivet Avibulb 3/16

Henrob Rivet

Rivet Ornit 6,5 X 10.5

Rivet Ornit 6,5 X 12.5

Rivet Ornit 6,5 X 16.5

Ornit Rivet 6,5 X 14.5

Black, Plug

Heat Shield

Insert

Torx Head Screw M6 X 16

Insert M5 - 0.8

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Insert

Black, Hitch Bumper Black 146

Full Moon Dart 8 mm

Full Moon Dart 10 mm

Torx Screw M6 X 1.0 X 18, Scotch Grip

Flat Washer

Front Protector

Pop Rivet 3/16”

Dart
